Drag link end caps?

Post by ivaldes1 » Mon Sep 13, 2021 1:02 pm

For drag link end caps I see three different possibilities:

. APCO for worn ends from Lang's https://www.modeltford.com/item/2728APCO.aspx

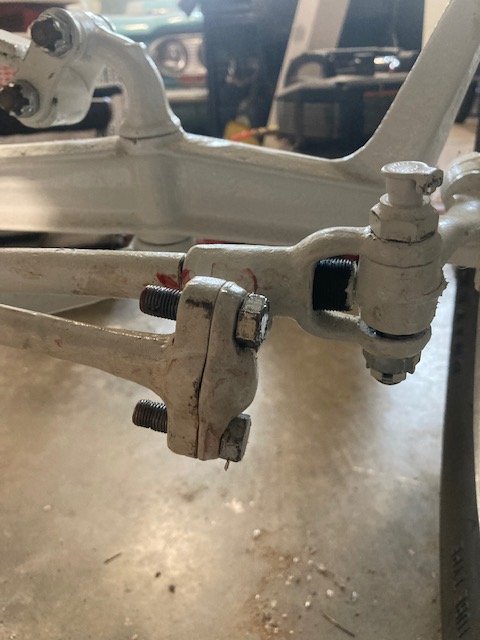

. Cap shown in the picture that I received from Dave Huson.
. Grease cap shown in the picture that came with my Touring.

Are all of the above ok or is there something in particular I should be doing?
Attachments
Top
User avatar

George House
Posts: 2814
Joined: Sun Jan 06, 2019 5:25 pm
First Name: George
Last Name: House
* REQUIRED* Type and Year of Model Ts owned: ‘10 Maxwell AA, ‘11Hupp Model 20, Two 1914 Ford runabouts, 19 centerdoor, 25 C Cab,26 roadster
Location: Northern Caldwell County TX
MTFCA Life Member: YES
Board Member Since: 1999

Re: Drag link end caps?

Post by George House » Mon Sep 13, 2021 1:59 pm

Of course they’re all ‘OK’ and dependant on the shape of the balls on both ends. If they’re slightly oblong, I’d go with the spring loaded APCO accessory.
A Fine is a Tax for Doing Something Wrong….A Tax is a Fine for Doing Something RIGHT 🤔
Top
User avatar

Rich Eagle
Posts: 6895
Joined: Fri Jan 04, 2019 10:51 am
First Name: Richard
Last Name: Eagle
* REQUIRED* Type and Year of Model Ts owned: 1909 TR 1914 TR 1915 Rd 1920 Spdstr 1922 Coupe 1925 Tudor
Location: Idaho Falls, ID

Re: Drag link end caps?

Post by Rich Eagle » Mon Sep 13, 2021 2:44 pm

I like the Apco's I have rebuilt and used.
Rich
When did I do that?
Top
User avatar

Topic author
ivaldes1
Posts: 957
Joined: Mon Jan 07, 2019 1:32 am
First Name: Ignacio
Last Name: Valdes
* REQUIRED* Type and Year of Model Ts owned: 1924 Touring
Location: Houston, Tx
Board Member Since: 2016

Re: Drag link end caps?

Post by ivaldes1 » Mon Sep 13, 2021 3:12 pm

Thanks, is there a way to get APCO's on faster? The cone shape makes it only possible to get a ratchet on for half the way then the edge gets too tight and you have to change to a wrench which is slow to get them on. I've only seen the grease cup type on my Touring does any one sell those?
Top
User avatar

TRDxB2
Posts: 6262
Joined: Tue Jan 08, 2019 4:56 pm
First Name: Frank
Last Name: Brandi
* REQUIRED* Type and Year of Model Ts owned: Speedsters (1919 w 1926 upgrades), 1926 (Ricardo Head)
Location: Moline IL
Board Member Since: 2018

Re: Drag link end caps?

Post by TRDxB2 » Mon Sep 13, 2021 4:44 pm

The spindle arm end looks a bit worn causing the gap. Don't know if an acceptable fix is a thrust washer (not a regular washer)
Attachments
spind arm.png
The past is a great place and I don't want to erase it or to regret it, but I don't want to be its prisoner either.
Mick Jagger
Top

Scott_Conger
Posts: 6523
Joined: Sun Jan 06, 2019 11:18 am
First Name: Scott
Last Name: Conger
* REQUIRED* Type and Year of Model Ts owned: 1919
Location: not near anywhere, WY
Board Member Since: 2005

Re: Drag link end caps?

Post by Scott_Conger » Mon Sep 13, 2021 4:55 pm

The grease-cup version is a period accessory or a modified original cap

taking too long to put an APCO cap is a new one on me... :?
Scott Conger

Tyranny under the guise of law is still Tyranny

NH Full Flow Float Valves™
Obsolete carburetor parts manufactured
