Fastening Seat Springs to Belt Rails
Would someone who has experience fastening the seat back springs to the belt rails on a 1923-25 Touring car please let me know how they did it, including the position of the springs?
-
Altair
- Posts: 365
- Joined: Thu Jan 17, 2019 11:52 am
- First Name: David
- Last Name: Menzies
- * REQUIRED* Type and Year of Model Ts owned: 1926 Touring and 1915 Touring both Canadian models
- Location: British Columbia
- Board Member Since: 2012
Re: Fastening Seat Springs to Belt Rails

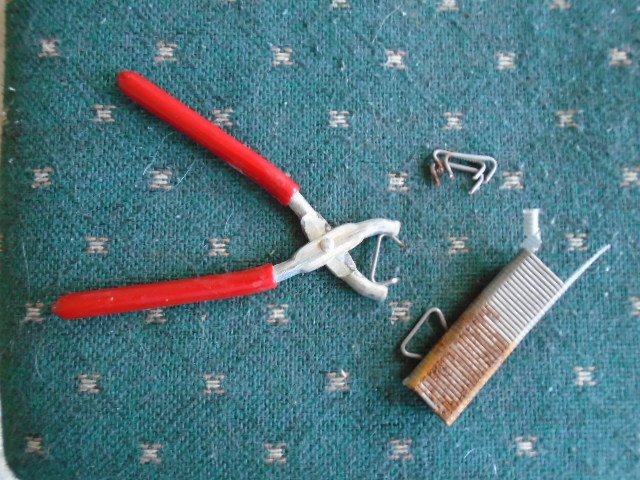

There is a tool called a Hog tie for fastening the springs try Langs[attachment=0]DSC01039.JPG
- Attachments
-
-
Mark Gregush
- Posts: 5370
- Joined: Sat Jan 05, 2019 1:57 pm
- First Name: Mark
- Last Name: Gregush
- * REQUIRED* Type and Year of Model Ts owned: 1925 cutdown PU, 1948 F2 Ford flat head 6 pickup 3 speed
- Location: Portland Or
- Board Member Since: 1999
Re: Fastening Seat Springs to Belt Rails
The hog rings are for attaching the material to the springs that can be taken out. Most all the Model T open cars used a channel in the bottom spring to clamp the fabric. The back rest spring would be attached with a strip(s) of material or there would be little bent metal hangers that are screwed to the belt rail. The bottom of the back rest spring is not attached, it just hangs there. Then the padding and cover are attached to the belt rail. The photos are of a 1920ish back rest spring clips.
- Attachments
-
-
I know the voices aren't real but damn they have some good ideas!
1925 Cut down pickup
1948 Ford F2 pickup
1925 Cut down pickup
1948 Ford F2 pickup
-
SurveyKing
Topic author - Posts: 504
- Joined: Thu Jan 10, 2019 8:36 am
- First Name: Daniel
- Last Name: Snell
- * REQUIRED* Type and Year of Model Ts owned: 1909 Touring, 1924 Touring, 1925 Roadster Pickup, 1921 Touring
- Location: Boerne, Texas
- Board Member Since: 2014
Re: Fastening Seat Springs to Belt Rails
Thanks. Could you tell me the position of the back rest in relation to the belt rail? How Much lower than the belt rail should it be positioned, both front and rear seats.
-
SurveyKing
Topic author - Posts: 504
- Joined: Thu Jan 10, 2019 8:36 am
- First Name: Daniel
- Last Name: Snell
- * REQUIRED* Type and Year of Model Ts owned: 1909 Touring, 1924 Touring, 1925 Roadster Pickup, 1921 Touring
- Location: Boerne, Texas
- Board Member Since: 2014
Re: Fastening Seat Springs to Belt Rails
Can someone post pics of how the seat back spring is fastened to the belt rail either in front or rear of the 23-25 Tourings?
-
Mark Gregush
- Posts: 5370
- Joined: Sat Jan 05, 2019 1:57 pm
- First Name: Mark
- Last Name: Gregush
- * REQUIRED* Type and Year of Model Ts owned: 1925 cutdown PU, 1948 F2 Ford flat head 6 pickup 3 speed
- Location: Portland Or
- Board Member Since: 1999
Re: Fastening Seat Springs to Belt Rails
http://www.mtfca.com/discus/messages/70 ... 1492028283
http://www.mtfca.com/discus/messages/82 ... 1528209829
http://www.mtfca.com/discus/messages/82 ... 1528209829
