help is this a centerdoor seat bracket

Post by warwick_preval » Tue Feb 01, 2022 7:06 am

Help is this a 22 centerdoor folding seat bracket the number looks like 5013 if not could someone show me a picture of one please THANKS.

photos are attached below
Attachments
Top

Cordes_jeff
Posts: 69
Joined: Wed Jan 09, 2019 8:45 pm
First Name: jeff
Last Name: cordes
* REQUIRED* Type and Year of Model Ts owned: 25
Location: houston

Re: help is this a centerdoor seat bracket

Post by Cordes_jeff » Tue Feb 01, 2022 8:39 am

Center door seat hinges use a 5/16 pin retained with a cotter pin to act as the pivot point. The part that mounts to the floor has 2 ears and the seatpart has 1.
Top
User avatar

Rich Eagle
Posts: 6895
Joined: Fri Jan 04, 2019 10:51 am
First Name: Richard
Last Name: Eagle
* REQUIRED* Type and Year of Model Ts owned: 1909 TR 1914 TR 1915 Rd 1920 Spdstr 1922 Coupe 1925 Tudor
Location: Idaho Falls, ID

Re: help is this a centerdoor seat bracket

Post by Rich Eagle » Tue Feb 01, 2022 2:21 pm

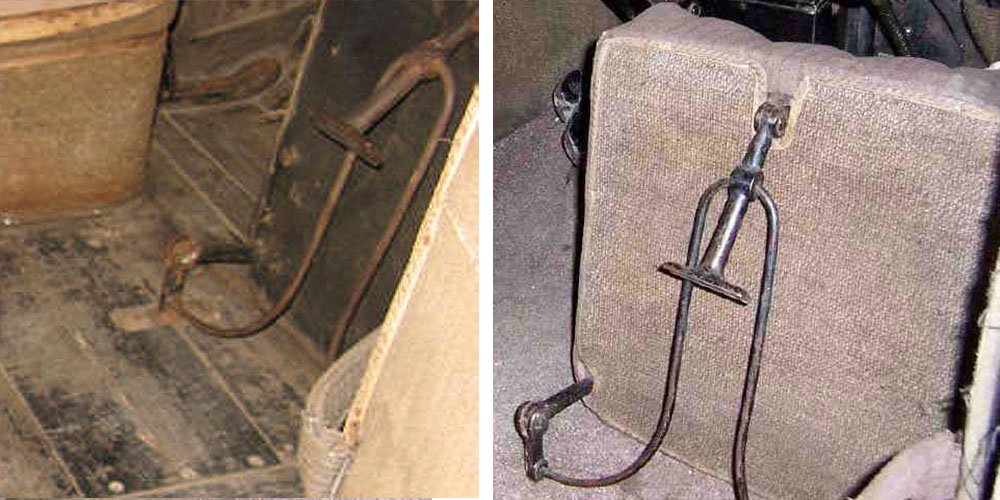

I hope these photos help. My Ford body book lists the numbers as 9664BX etc. But who knows.
When did I do that?
Top

Topic author
warwick_preval
Posts: 25
Joined: Sun Jan 20, 2019 5:52 am
First Name: warwick
Last Name: preval
* REQUIRED* Type and Year of Model Ts owned: 25 tr 22 coupe
Location: australia
Board Member Since: 2014

Re: help is this a centerdoor seat bracket

Post by warwick_preval » Wed Feb 02, 2022 7:34 am

Hello & THANK you both it sure looks like the right seat bracket to me from the explanation & photos cheers Warwick.
Top
User avatar

Will_Vanderburg
Posts: 925
Joined: Sun Jan 06, 2019 3:59 pm
First Name: William
Last Name: Vanderburg
* REQUIRED* Type and Year of Model Ts owned: 2
Location: Jackson, NJ

Re: help is this a centerdoor seat bracket

Post by Will_Vanderburg » Fri Feb 04, 2022 4:19 pm

My 22 seat is exactly like that
William L Vanderburg

1925 Touring
1922 Center Door Sedan
