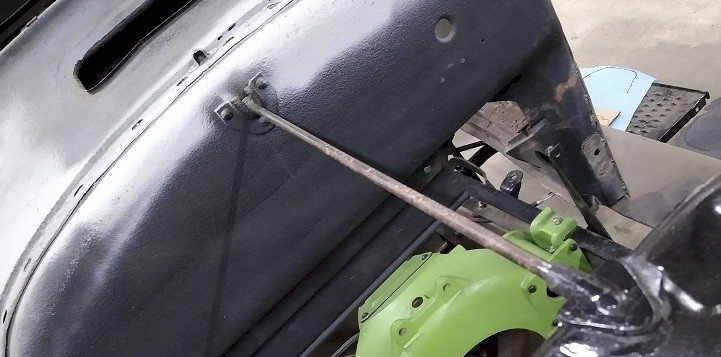

Radiator support rod - missing.
I re-threaded the radiator and found it to be 5/16"-24.
Some time ago the rods for the parking brake looked rusted out and for safety, I replaced them.
As it is they are the same diameter and thread per inch.
So, I ran a die on the end and cut the other end to length.
A large carriage bolt sacrificed its head, getting a weld to the end of the rod.
The other parking brake rod I cut for the hood center connection which was also missing.
I think they will both get painted either black or dark green.
missing: Radiator Support Rod - resolved?
