Amp meter glass fell out.
So cruising down the road and something clinked.... looked down and the glass from the Amp meter was laying on the floor....26 fordor.... how common is that ? And any tips on fixing it ??
-
- Posts: 6262
- Joined: Tue Jan 08, 2019 4:56 pm
- First Name: Frank
- Last Name: Brandi
- * REQUIRED* Type and Year of Model Ts owned: Speedsters (1919 w 1926 upgrades), 1926 (Ricardo Head)
- Location: Moline IL
- Board Member Since: 2018
Re: Amp meter glass fell out.
Is this an original or repro ammeter. There isn't much to a small ammeter, a case and a bezel (that the glass fits into) that is press over the case. So either the glass diameter was to small or the bezel is worn. Be careful in taking it apart.
The past is a great place and I don't want to erase it or to regret it, but I don't want to be its prisoner either.
Mick Jagger
Mick Jagger
-
Topic author - Posts: 154
- Joined: Wed Jan 09, 2019 4:52 pm
- First Name: Larry
- Last Name: Rutt
- * REQUIRED* Type and Year of Model Ts owned: 1926 fordor
- Location: Ephrata pa
Re: Amp meter glass fell out.
Hmm. Thanks, I need to look closer when I get home... I was sure it came out from behind the dash. It is an original meter, I think. The only pic I have of it is when I needed to see what for key number I need..
-
- Posts: 3813
- Joined: Sun Jan 06, 2019 10:56 am
- First Name: Dan
- Last Name: Treace
- * REQUIRED* Type and Year of Model Ts owned: ‘12 open express,'23 cutoff, '27 touring
- Location: North Central FL
- Board Member Since: 2000
- Contact:
Re: Amp meter glass fell out.
Your meter is a reproduction, the Ford Model T meter has a wider flat-face bezel that is nickeled to engage the switch plate, plus the Ford will have script on the meter faceplate.
For the repros, those have a smaller rim or collar to encase the glass lens, you pry very gently on the locking tabs to get the collar to wiggle. Then rotate the collar to allow those tabs to clear the notches in the meter case, and remove the collar, insert the glass and install in reverse.

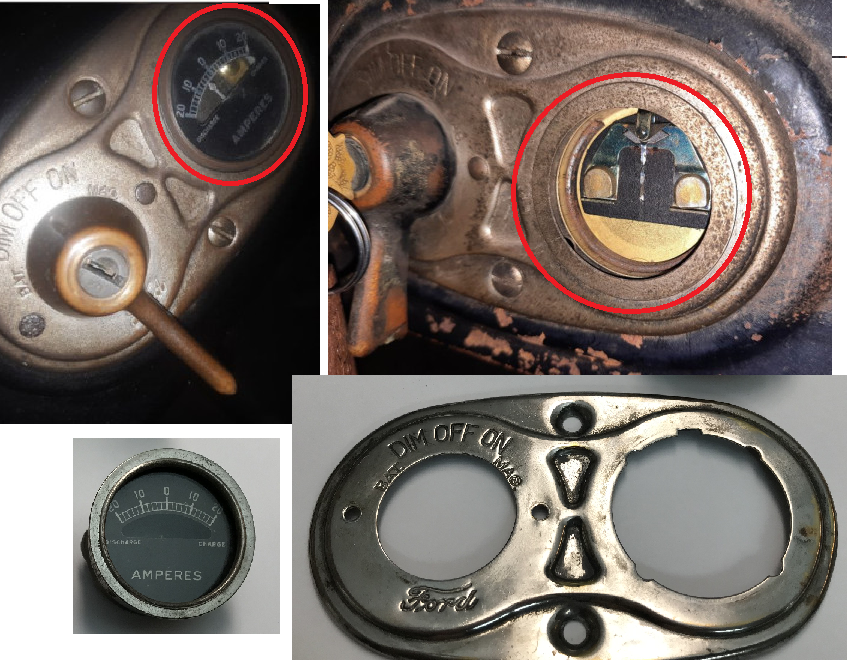

Comparisons, the lower left is a repro or Model A meter but I installed an original flat face collar to mimic the look of an original T Ammeter. The thin alum collars of the repro Model A style just don't look Ford T to me
For the repros, those have a smaller rim or collar to encase the glass lens, you pry very gently on the locking tabs to get the collar to wiggle. Then rotate the collar to allow those tabs to clear the notches in the meter case, and remove the collar, insert the glass and install in reverse.
Comparisons, the lower left is a repro or Model A meter but I installed an original flat face collar to mimic the look of an original T Ammeter. The thin alum collars of the repro Model A style just don't look Ford T to me

The best way is always the simplest. The attics of the world are cluttered up with complicated failures. Henry Ford
Don’t find fault, find a remedy; anybody can complain. Henry Ford
Don’t find fault, find a remedy; anybody can complain. Henry Ford
-
Topic author - Posts: 154
- Joined: Wed Jan 09, 2019 4:52 pm
- First Name: Larry
- Last Name: Rutt
- * REQUIRED* Type and Year of Model Ts owned: 1926 fordor
- Location: Ephrata pa
Re: Amp meter glass fell out.
So here is what i got, my question is, where does the brass washer go ? Does it go in this order ? Glass, paper ,glass,brass washer ?
-
Topic author - Posts: 154
- Joined: Wed Jan 09, 2019 4:52 pm
- First Name: Larry
- Last Name: Rutt
- * REQUIRED* Type and Year of Model Ts owned: 1926 fordor
- Location: Ephrata pa
Re: Amp meter glass fell out.
Four pics I have, the gauge itself comes out the back... I'll just slide em in if I can get the correct order..
-
- Posts: 6262
- Joined: Tue Jan 08, 2019 4:56 pm
- First Name: Frank
- Last Name: Brandi
- * REQUIRED* Type and Year of Model Ts owned: Speedsters (1919 w 1926 upgrades), 1926 (Ricardo Head)
- Location: Moline IL
- Board Member Since: 2018
Re: Amp meter glass fell out.
I don't know why your showing 2 glass plates - only used 1.Larry e rutt wrote: ↑Sat Feb 26, 2022 12:48 pmFour pics I have, the gauge itself comes out the back... I'll just slide em in if I can get the correct order..
Also the needle pivot appears to be on top instead of the bottom to match the face plate. ---
---
Once you remove the ammeter, pulls out through the front of the face plate, the vacated space should look like the one I added. It looks liek you have an extra bezel - may explain what the problem is. --
--
Your ammeter is a repro
Last edited by TRDxB2 on Sat Feb 26, 2022 3:41 pm, edited 1 time in total.
The past is a great place and I don't want to erase it or to regret it, but I don't want to be its prisoner either.
Mick Jagger
Mick Jagger
-
- Posts: 6262
- Joined: Tue Jan 08, 2019 4:56 pm
- First Name: Frank
- Last Name: Brandi
- * REQUIRED* Type and Year of Model Ts owned: Speedsters (1919 w 1926 upgrades), 1926 (Ricardo Head)
- Location: Moline IL
- Board Member Since: 2018
Re: Amp meter glass fell out.
Putting things back together. I have taken a repro ammeter apart. just the 4 pieces.

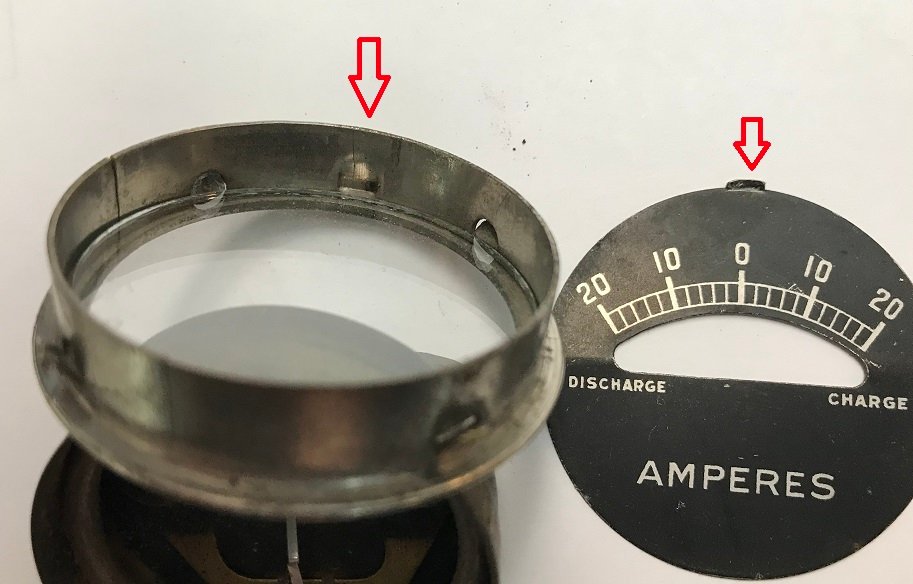

First you need to notice that the bezel has a small indent for the tab on the face plate to fit into. --
-- 1: place the bezel face down on a flat surface with the indent at 12 o'clock
2. place the glass into the bezel
3. place the face plate into the bezel on top of the glass with the tab in the indent of the bezel
4. place the body of the ammeter into the bezel such that the tip of the needle is at 12 o'clock and the pivot id at 6 o'clock
....... secret to align the 1st time. make a mark on the top edge of the body where the top of the needle is. Use that mark to align it ti the indent of the bezel
5. push down to lock things in place.-
--
To insert into switch plate,. There are 4 tabs, along with the bump from the indent, on the ammeter bezel that align with cutouts on the switch plate cutouts. just press it in those tabs just need to spring out a bit to catch the faceplate.
First you need to notice that the bezel has a small indent for the tab on the face plate to fit into. --
-- 1: place the bezel face down on a flat surface with the indent at 12 o'clock
2. place the glass into the bezel
3. place the face plate into the bezel on top of the glass with the tab in the indent of the bezel
4. place the body of the ammeter into the bezel such that the tip of the needle is at 12 o'clock and the pivot id at 6 o'clock
....... secret to align the 1st time. make a mark on the top edge of the body where the top of the needle is. Use that mark to align it ti the indent of the bezel
5. push down to lock things in place.-
--
To insert into switch plate,. There are 4 tabs, along with the bump from the indent, on the ammeter bezel that align with cutouts on the switch plate cutouts. just press it in those tabs just need to spring out a bit to catch the faceplate.
The past is a great place and I don't want to erase it or to regret it, but I don't want to be its prisoner either.
Mick Jagger
Mick Jagger
-
Topic author - Posts: 154
- Joined: Wed Jan 09, 2019 4:52 pm
- First Name: Larry
- Last Name: Rutt
- * REQUIRED* Type and Year of Model Ts owned: 1926 fordor
- Location: Ephrata pa
Re: Amp meter glass fell out.
Thank you so much. I did put it back together, nice detailed instructions. However, something strange is going on. If you look at my first photot the faceplate does not have the ford script on it.. My second photo of the parts the faceplate does have ford written on it... And two glass pieces , that is really strange
-
- Posts: 6262
- Joined: Tue Jan 08, 2019 4:56 pm
- First Name: Frank
- Last Name: Brandi
- * REQUIRED* Type and Year of Model Ts owned: Speedsters (1919 w 1926 upgrades), 1926 (Ricardo Head)
- Location: Moline IL
- Board Member Since: 2018
Re: Amp meter glass fell out.
Good have happened when someone took the old face plate and bezel and put it on the repro case. Anyway did you use the flat bezel on the case and how did you secure it?Larry e rutt wrote: ↑Sat Feb 26, 2022 8:10 pmThank you so much. I did put it back together, nice detailed instructions. However, something strange is going on. If you look at my first photot the faceplate does not have the ford script on it.. My second photo of the parts the faceplate does have ford written on it... And two glass pieces , that is really strange![]()
