TT rear brake pad rivets

Post by jaybee47 » Sun Apr 07, 2019 10:28 pm

Split brass rivets (aka bifurcated rivets) 3/16 shank diameter, 5/8 shank length (7/16 work thickness + 3/16 clinch allowance), 5/16 or 3/8 truss or oval head diameter.
Looked everywhere including internet.
Does anyone know where these rivets may be purchased?
Model T suppliers sell semi tubular rivets and also too short.

User avatar

Mark Gregush
Posts: 5370
Joined: Sat Jan 05, 2019 1:57 pm
First Name: Mark
Last Name: Gregush
* REQUIRED* Type and Year of Model Ts owned: 1925 cutdown PU, 1948 F2 Ford flat head 6 pickup 3 speed
Location: Portland Or
Board Member Since: 1999

Re: TT rear brake pad rivets

Post by Mark Gregush » Mon Apr 08, 2019 12:20 am

Why not counter sink and used regular brake rivets? Even the woven lining can be counter sunk, we do it all the time with woven Model A lining.
I know the voices aren't real but damn they have some good ideas! :shock:

1925 Cut down pickup
1948 Ford F2 pickup

User avatar

A Whiteman
Posts: 1125
Joined: Sun Jan 06, 2019 3:36 pm
First Name: Adrian
Last Name: Whiteman
* REQUIRED* Type and Year of Model Ts owned: 1926 TT, 1923 Colonial Roadster, 1924 'Bullnose' Morris, 1925 'Bullnose' Morris, 1936 JD AR
Location: South Island, New Zealand

Re: TT rear brake pad rivets

Post by A Whiteman » Tue Apr 09, 2019 2:53 am

Why not get a brake shop to bond new pads on?
No rivets to come loose or damage the drums.

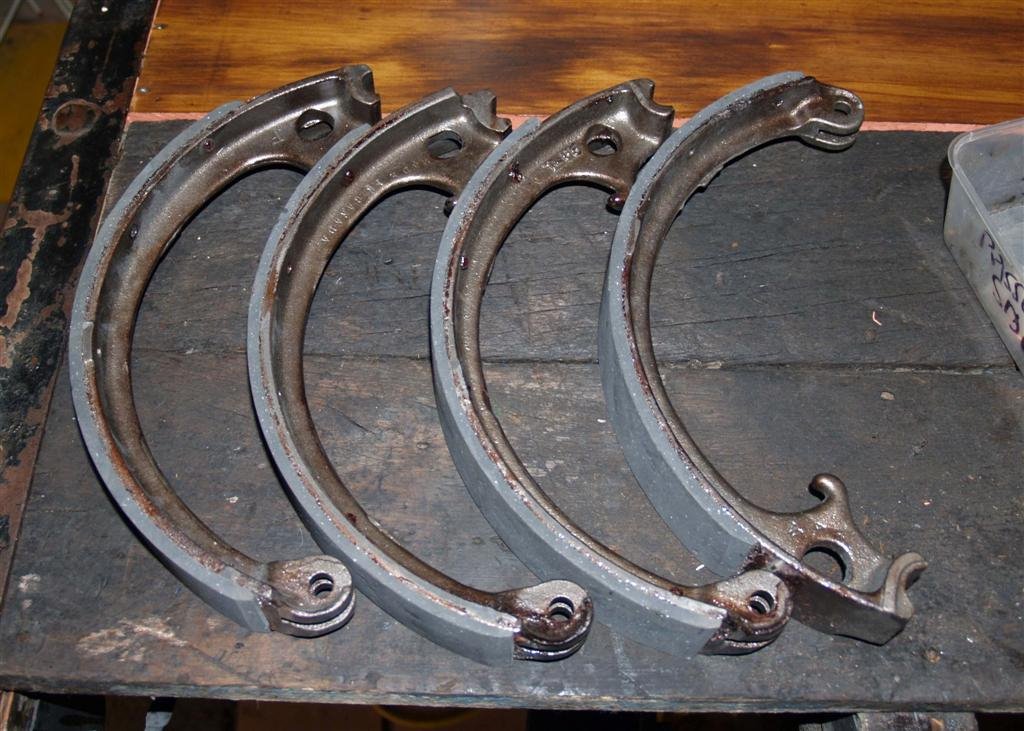

Brake Shoes Replaced and Relined Sept 08 (Large).JPG

User avatar

One390
Posts: 35
Joined: Mon Jan 07, 2019 10:02 am
First Name: Tim
Last Name: Smith
* REQUIRED* Type and Year of Model Ts owned: 25 TT
Location: Oviedo

Re: TT rear brake pad rivets

Post by One390 » Wed Apr 10, 2019 9:38 pm

I used the supplied rivets with the new lining sold by suppliers and they worked fine. I assume the transmission band rivets are too small. Try big flats rivet if you have not already.
