Holley G carburetor
Does anyone have a cross sectional diagram on or a publication about early and late Holley Model G carburetors? I would like to ask for or purchase a copy. I purchased the 'The Ford Carburetor' published by the MTFCA but it does not contain the information I seek.
-
jaybee47
Topic author - Posts: 335
- Joined: Mon Jan 07, 2019 8:40 pm
- First Name: jay
- Last Name: bolante
- * REQUIRED* Type and Year of Model Ts owned: 1922 Runabout
- Location: columbia city indiana
- Board Member Since: 2015
Re: Holley G carburetor
I forgot to mention that I already have the parts diagram of the G from the Resource section. Am needing a cross sectional view and detailed restoration procedures.
-
Rich Eagle
- Posts: 6895
- Joined: Fri Jan 04, 2019 10:51 am
- First Name: Richard
- Last Name: Eagle
- * REQUIRED* Type and Year of Model Ts owned: 1909 TR 1914 TR 1915 Rd 1920 Spdstr 1922 Coupe 1925 Tudor
- Location: Idaho Falls, ID
-
Steve Jelf
- Posts: 7239
- Joined: Fri Jan 04, 2019 9:37 pm
- First Name: Steve
- Last Name: Jelf
- * REQUIRED* Type and Year of Model Ts owned: 1923 touring and a few projects
- Location: Parkerfield, Kansas
- Board Member Since: 2007
- Contact:
Re: Holley G carburetor
Exploded view: app.php/gallery/image/53
Rich, do you know what publication that is?
Rich, do you know what publication that is?
The inevitable often happens.
1915 Runabout
1923 Touring
1915 Runabout
1923 Touring
-
Rich Eagle
- Posts: 6895
- Joined: Fri Jan 04, 2019 10:51 am
- First Name: Richard
- Last Name: Eagle
- * REQUIRED* Type and Year of Model Ts owned: 1909 TR 1914 TR 1915 Rd 1920 Spdstr 1922 Coupe 1925 Tudor
- Location: Idaho Falls, ID
Re: Holley G carburetor
That was in the Dyke's sixteenth addition Steve.
(1934 but probably in several earlier additions.)
(1934 but probably in several earlier additions.)
When did I do that?
-
Rich Eagle
- Posts: 6895
- Joined: Fri Jan 04, 2019 10:51 am
- First Name: Richard
- Last Name: Eagle
- * REQUIRED* Type and Year of Model Ts owned: 1909 TR 1914 TR 1915 Rd 1920 Spdstr 1922 Coupe 1925 Tudor
- Location: Idaho Falls, ID
Re: Holley G carburetor
This was from Automobile Engineering (1920).
http://www.mtfca.com/discus/messages/50893/74187.jpg
http://www.mtfca.com/discus/messages/50 ... 1228143745
http://www.mtfca.com/discus/messages/50 ... 1228143745
When did I do that?
-
Rich Eagle
- Posts: 6895
- Joined: Fri Jan 04, 2019 10:51 am
- First Name: Richard
- Last Name: Eagle
- * REQUIRED* Type and Year of Model Ts owned: 1909 TR 1914 TR 1915 Rd 1920 Spdstr 1922 Coupe 1925 Tudor
- Location: Idaho Falls, ID
Re: Holley G carburetor

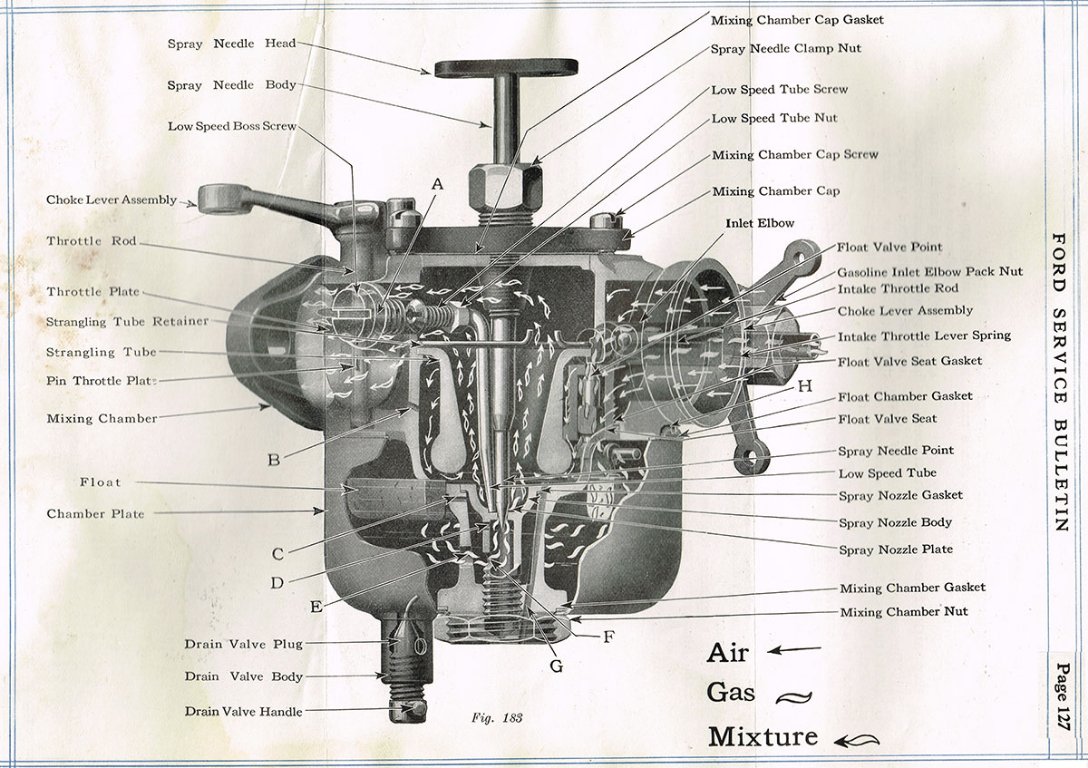

This is a bit clearer from the ford Service Bulletin, Nov 15th 1919.
Perhaps this is easier to see the early vs. the late.
When did I do that?
-
jaybee47
Topic author - Posts: 335
- Joined: Mon Jan 07, 2019 8:40 pm
- First Name: jay
- Last Name: bolante
- * REQUIRED* Type and Year of Model Ts owned: 1922 Runabout
- Location: columbia city indiana
- Board Member Since: 2015
Re: Holley G carburetor
Thank you all so much for your replies. Helps me greatly. I have a '14 G with a one arm choke lever and will install a G two arm choke lever so I can choke from inside the cab. From your replies and comparing the pictures, I have all the component parts except the venturi retaining spring. I can make a spring.
-
Rich Eagle
- Posts: 6895
- Joined: Fri Jan 04, 2019 10:51 am
- First Name: Richard
- Last Name: Eagle
- * REQUIRED* Type and Year of Model Ts owned: 1909 TR 1914 TR 1915 Rd 1920 Spdstr 1922 Coupe 1925 Tudor
- Location: Idaho Falls, ID
Re: Holley G carburetor
Yes, a spring can be made. I made some by unrolling a compression spring and bending to fit. Placed on a pin in a vice they can be uncurled quite easily.
Have fun.
Rich
Rich
When did I do that?
-
Rich P. Bingham
- Posts: 1613
- Joined: Sun Feb 13, 2022 11:24 am
- First Name: Rich
- Last Name: Bingham
- Location: Blackfoot, Idaho
- Board Member Since: 2015
Re: Holley G carburetor
Why ? Are you installing an electric starter ?
Any road, good choice. Golly gee !! Holly G. My favorite carb !!
Get a horse !
-
jaybee47
Topic author - Posts: 335
- Joined: Mon Jan 07, 2019 8:40 pm
- First Name: jay
- Last Name: bolante
- * REQUIRED* Type and Year of Model Ts owned: 1922 Runabout
- Location: columbia city indiana
- Board Member Since: 2015
Re: Holley G carburetor
Rich P. Bingham wrote: "Why ? Are you installing an electric starter ?"
Yes because I prefer to avoid arm cranking. It is an '11 3 passenger Roadster per McCalley's book or an '11 Commercial Roadster per Lang's catalog (looks the same to me) with a '23 engine. Not the real deal but am having fun. Will post pictures in about a year or two or three when I think I'll be finished with its restoration.
