Wolf Whistle INSTALL PIC's?
Can you please post some pics of mounting/installation? Looking for ideas. Thanks!
- Attachments
-
- dowolfwwnload.jpeg (13.41 KiB) Viewed 4287 times
________________
**FATE**
---------------------------
**FATE**
---------------------------
-
- Posts: 6262
- Joined: Tue Jan 08, 2019 4:56 pm
- First Name: Frank
- Last Name: Brandi
- * REQUIRED* Type and Year of Model Ts owned: Speedsters (1919 w 1926 upgrades), 1926 (Ricardo Head)
- Location: Moline IL
- Board Member Since: 2018
Re: Wolf Whistle INSTALL PIC's?
Instructions says its Attaches to any vacuum source on any engine.Professor Fate wrote: ↑Thu Jun 02, 2022 12:18 amCan you please post some pics of mounting/installation? Looking for ideas. Thanks!
The past is a great place and I don't want to erase it or to regret it, but I don't want to be its prisoner either.
Mick Jagger
Mick Jagger
-
- Posts: 4433
- Joined: Sun Jan 06, 2019 8:00 pm
- First Name: John
- Last Name: Kuehn
- * REQUIRED* Type and Year of Model Ts owned: 19 Roadster, 21 Touring, 24 Coupe
- Location: Texas
Re: Wolf Whistle INSTALL PIC's?
Some drill a hole on the side of the intake manifold. Then tap the hole to 1/8” pipe thread.
If I remember the instructions suggest doing it.
Whenever in doubt read the instructions.
If I remember the instructions suggest doing it.
Whenever in doubt read the instructions.
-
- Posts: 7391
- Joined: Sun Feb 14, 2021 10:08 pm
- First Name: Pat
- Last Name: McNallen
- * REQUIRED* Type and Year of Model Ts owned: 1926-7 roadster
- Location: Graham, Texas
- Board Member Since: 2021
Re: Wolf Whistle INSTALL PIC's?
The instructions are somewhat confusing. You can mount it anywhere near the engine that is convenient and that you can get a control wire, string, or cable to. Connecting it to the manifold near the center will allow you to control the pitch with both the control valve and the throttle. A foot throttle would be a good addition for using one of these on a Model T. A bracket could be made to attach the device to the radiator stay rod. ////// CAUTION!! If you operate this device around the wrong sort of person, you may need to hire Johnny Dep's lawyer. Not for use in Seattle or Berkeley.
-
- Posts: 239
- Joined: Sun Jan 06, 2019 9:12 pm
- First Name: Paul
- Last Name: Grohsmeyer
- * REQUIRED* Type and Year of Model Ts owned: ‘17 TT Holmes Wrecker
- Location: Central Florida
- Board Member Since: 2007
Re: Wolf Whistle INSTALL PIC's?

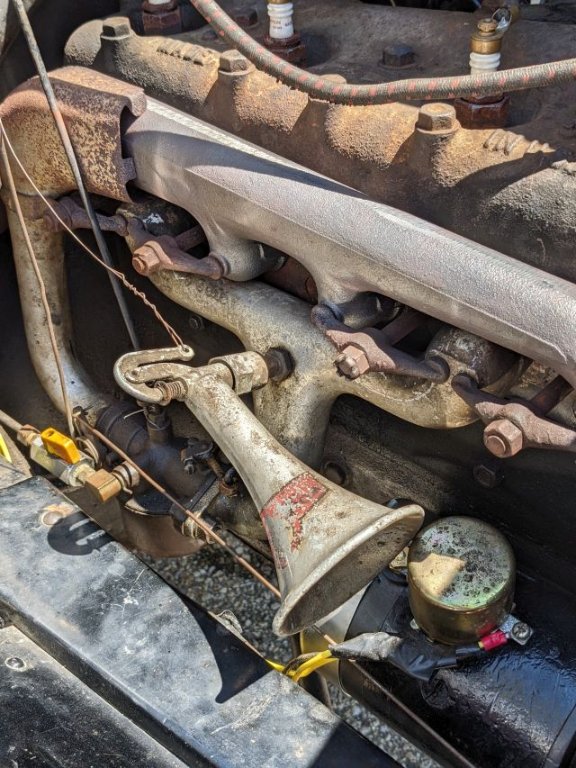

This one is on our A, but same concept.
-
Topic author - Posts: 755
- Joined: Tue Jan 08, 2019 12:39 am
- First Name: Dan
- Last Name: S
- * REQUIRED* Type and Year of Model Ts owned: '23 and '26
- Location: Taxachusetts
- Board Member Since: 2015
Re: Wolf Whistle INSTALL PIC's?
What is that circled piece that let's it turn 90degrees?
- Attachments
-
- 20220602_194058.png (83.19 KiB) Viewed 4061 times
________________
**FATE**
---------------------------
**FATE**
---------------------------
-
- Posts: 3813
- Joined: Sun Jan 06, 2019 10:56 am
- First Name: Dan
- Last Name: Treace
- * REQUIRED* Type and Year of Model Ts owned: ‘12 open express,'23 cutoff, '27 touring
- Location: North Central FL
- Board Member Since: 2000
- Contact:
Re: Wolf Whistle INSTALL PIC's?
This earlier thread has photo of install on T intake, just needs a pull wire to the driver’s position.
https://www.mtfca.com/discus/messages/7 ... 1498802200
https://www.mtfca.com/discus/messages/7 ... 1498802200
The best way is always the simplest. The attics of the world are cluttered up with complicated failures. Henry Ford
Don’t find fault, find a remedy; anybody can complain. Henry Ford
Don’t find fault, find a remedy; anybody can complain. Henry Ford
-
- Posts: 7391
- Joined: Sun Feb 14, 2021 10:08 pm
- First Name: Pat
- Last Name: McNallen
- * REQUIRED* Type and Year of Model Ts owned: 1926-7 roadster
- Location: Graham, Texas
- Board Member Since: 2021
Re: Wolf Whistle INSTALL PIC's?
Operating the device will lean out the mixture, and might kill the engine at idle. Richening the mixture adjustment momentarily would offset that. If you worked the throttle and and the control wire just right, you might get both a squawk from the whistle and a carburetor backfire.
-
- Posts: 239
- Joined: Sun Jan 06, 2019 9:12 pm
- First Name: Paul
- Last Name: Grohsmeyer
- * REQUIRED* Type and Year of Model Ts owned: ‘17 TT Holmes Wrecker
- Location: Central Florida
- Board Member Since: 2007
Re: Wolf Whistle INSTALL PIC's?
Don’t know where that mount came from. Possibly a marine catalog. It just made the install look better I thought.Professor Fate wrote: ↑Thu Jun 02, 2022 7:41 pmWhat is that circled piece that let's it turn 90degrees?
-
- Posts: 1230
- Joined: Sun Jan 06, 2019 5:39 pm
- First Name: James
- Last Name: Golden
- * REQUIRED* Type and Year of Model Ts owned: 1926 Model T Roadster
- Location: Bowie, MD
Re: Wolf Whistle INSTALL PIC's?
The part about not being legal in some states is true, but should say all states.
-
- Posts: 7391
- Joined: Sun Feb 14, 2021 10:08 pm
- First Name: Pat
- Last Name: McNallen
- * REQUIRED* Type and Year of Model Ts owned: 1926-7 roadster
- Location: Graham, Texas
- Board Member Since: 2021
Re: Wolf Whistle INSTALL PIC's?
The USA is rapidly approaching MAX BAN, where everything will be illegal. (For US citizens)
-
- Posts: 1230
- Joined: Sun Jan 06, 2019 5:39 pm
- First Name: James
- Last Name: Golden
- * REQUIRED* Type and Year of Model Ts owned: 1926 Model T Roadster
- Location: Bowie, MD
Re: Wolf Whistle INSTALL PIC's?
Brother Dave had a plan 60 year ago.
He said they should make everything legal, then there would not be any crime at all.
His plan did not sell!
He said they should make everything legal, then there would not be any crime at all.
His plan did not sell!
-
Topic author - Posts: 755
- Joined: Tue Jan 08, 2019 12:39 am
- First Name: Dan
- Last Name: S
- * REQUIRED* Type and Year of Model Ts owned: '23 and '26
- Location: Taxachusetts
- Board Member Since: 2015
Re: Wolf Whistle INSTALL PIC's?
The burnt valve comments make me not want to install one. Not worth a $55 toy to trash a great running rebuild I have nearly $3k in.
________________
**FATE**
---------------------------
**FATE**
---------------------------
-
- Posts: 7391
- Joined: Sun Feb 14, 2021 10:08 pm
- First Name: Pat
- Last Name: McNallen
- * REQUIRED* Type and Year of Model Ts owned: 1926-7 roadster
- Location: Graham, Texas
- Board Member Since: 2021
Re: Wolf Whistle INSTALL PIC's?
Unless you operate the horn continuously, you won't harm your valves. Cars have used vacuum wipers motors and vacuum brake boosters for decades without issues. If you're working the horn a lot, temporarily richen your fuel mixture a little. Some older heavy duty floats and trailers used vacuum brakes. They could dump a lot of air into the engine intake when used heavily.
-
- Posts: 4082
- Joined: Sun Jan 06, 2019 4:06 pm
- First Name: Jerry
- Last Name: Van
- Location: S.E. Michigan
Re: Wolf Whistle INSTALL PIC's?
I wouldn't worry about that in the least! Just a bunch of overthinking, which this forum is excellent at. For the 2 seconds you operate it, you won't notice an ounce of trouble. (Well... you might get a rude look from some.)Professor Fate wrote: ↑Mon Jun 06, 2022 6:02 amThe burnt valve comments make me not want to install one. Not worth a $55 toy to trash a great running rebuild I have nearly $3k in.
Install your whistle, have fun!
-
- Posts: 7391
- Joined: Sun Feb 14, 2021 10:08 pm
- First Name: Pat
- Last Name: McNallen
- * REQUIRED* Type and Year of Model Ts owned: 1926-7 roadster
- Location: Graham, Texas
- Board Member Since: 2021
Re: Wolf Whistle INSTALL PIC's?
I would suggest mounting the horn in such a way that it cannot collect water and dirt. Any water and debris that collects in the horn will cause trouble with the horn valve and could get into the engine.
-
Topic author - Posts: 755
- Joined: Tue Jan 08, 2019 12:39 am
- First Name: Dan
- Last Name: S
- * REQUIRED* Type and Year of Model Ts owned: '23 and '26
- Location: Taxachusetts
- Board Member Since: 2015
Re: Wolf Whistle INSTALL PIC's?
I've kicked the idea of a whistle on the car down the road.... other, bigger things to focus on at the moment. Not a priority at this time. Thanks for pics and ideas.
