Steel Side Light Question

Post by Mark Osterman » Wed Jul 13, 2022 5:02 pm

Anyone know something about these all black (steel) Brown style 110 side lights. I see all brass and black with brass trim but not all black.
Attachments

User avatar

Rich Eagle
Posts: 6895
Joined: Fri Jan 04, 2019 10:51 am
First Name: Richard
Last Name: Eagle
* REQUIRED* Type and Year of Model Ts owned: 1909 TR 1914 TR 1915 Rd 1920 Spdstr 1922 Coupe 1925 Tudor
Location: Idaho Falls, ID

Re: Steel Side Light Question

Post by Rich Eagle » Wed Jul 13, 2022 5:18 pm

I assume those were the last of the square lamps. Phasing the brass out gradually to none at all seems logical to me.
When did I do that?

User avatar

TWrenn
Posts: 3743
Joined: Sun Jan 06, 2019 10:53 am
First Name: Tim
Last Name: Wrenn
* REQUIRED* Type and Year of Model Ts owned: '13 Touring, '26 "Overlap" Fordor
Location: Ohio
Board Member Since: 2019

Re: Steel Side Light Question

Post by TWrenn » Wed Jul 13, 2022 5:24 pm

In the first pic, the bright spot on the lower chimney sure looks brassy to me. Did you try a magnet on it? Some of these were painted all black, often by Amish, and they made their way back into circulation.


Wayne Sheldon
Posts: 4249
Joined: Sun Jan 06, 2019 3:13 pm
First Name: Wayne
Last Name: Sheldon
* REQUIRED* Type and Year of Model Ts owned: 1915 Runabout 1913 Speedster
Location: Grass Valley California, USA
Board Member Since: 2005

Re: Steel Side Light Question

Post by Wayne Sheldon » Wed Jul 13, 2022 6:10 pm

Those actually may not be the "last" of the square oil side lamps for model Ts. The "last" ones had the firewall mounting bracket riveted onto the lamp body. The riveted square lamps were apparently used in the final months of calendar 1914 and through April of 1915 on the late-build 1914 style cars that Ford continued producing while working out problems with the new 1915 style cars. It is possible that the late lamps like yours may have also been used until the end? Ford did not keep accurate records on all the subtleties of the changes during those several months!


Topic author
Mark Osterman
Posts: 1014
Joined: Mon Jan 07, 2019 10:18 pm
First Name: Mark
Last Name: Osterman
* REQUIRED* Type and Year of Model Ts owned: 1923 runabout
Location: Rochester, NY
Contact:

Re: Steel Side Light Question

Post by Mark Osterman » Wed Jul 13, 2022 7:24 pm

I haven’t tested with a magnet small enough to get into that section of the chimney.


ModelT46
Posts: 1627
Joined: Sun Jan 06, 2019 8:35 pm
First Name: Darel
Last Name: Leipold
* REQUIRED* Type and Year of Model Ts owned: 1910 touring
Location: Excelsior MN
Board Member Since: 1999

Re: Steel Side Light Question

Post by ModelT46 » Thu Jul 14, 2022 12:41 pm

Steel top JB side and tail lights are common. I have several. Have not checked to see if any of the fonts were all steel.


Topic author
Mark Osterman
Posts: 1014
Joined: Mon Jan 07, 2019 10:18 pm
First Name: Mark
Last Name: Osterman
* REQUIRED* Type and Year of Model Ts owned: 1923 runabout
Location: Rochester, NY
Contact:

Re: Steel Side Light Question

Post by Mark Osterman » Thu Jul 14, 2022 5:33 pm

I’ve mostly seen all brass lamps or steel lamps with brass chimney tops. So what year are these?


Drkbp
Posts: 277
Joined: Sun Jan 06, 2019 11:28 am
First Name: Kenneth
Last Name: Parker
* REQUIRED* Type and Year of Model Ts owned: 1914, 1925
Location: Houston, Texas

Re: Steel Side Light Question

Post by Drkbp » Fri Jul 15, 2022 11:11 am

Mark,

Your John Brown 110's have the red jewels on the back panel of the lamp.
Those style lamps seem to have been used on the 1913 Models and
earlier 1914 style cars. The old photos indicate that is what happened and I
have a set on my car.

The progression appears to have been:
1) jeweled, 2) plain back panel (no jewel), both spade mounted,
and the last was the integral mount Wayne noted. The integral mount
required the side lamp mounting holes to be lined up vertically on the firewall.

As a practical matter, when I drive with them lit, I can't see the jewel from
the driver seat and the red jewels aren't visible from behind the car. Hardly visible
even from just outside the car and may be the reason they were dropped during
calendar 1914, who knows? Otherwise, the 110's are great for being "visible" to
other drivers.

Below is a photograph that was dated 12 June 1913. The black "dot"
in the rear of the reflector is the hole in the silvered panel to light the red jewel.
The car has jeweled John Brown 110's like you show above
Attachments
1913 -12 JUNE 1913.jpg

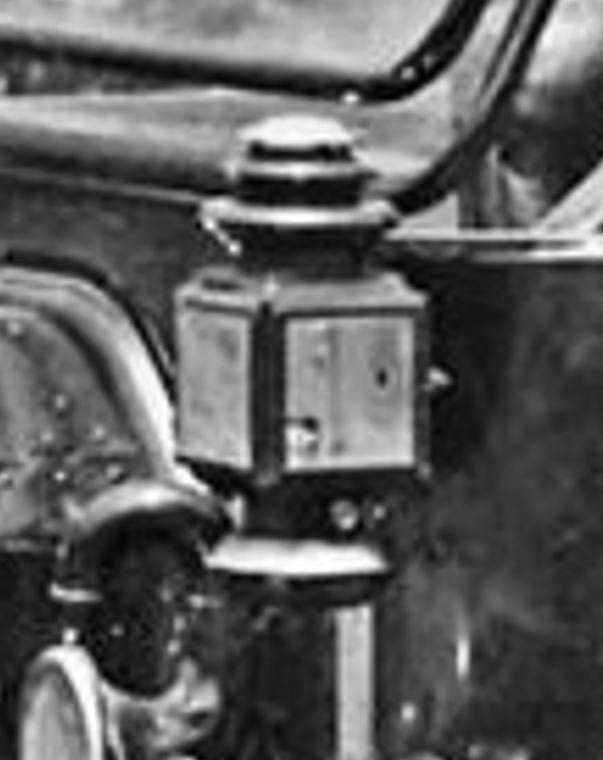

HOLE IN SILVERED BACK PANEL TO LIGHT RED JEWEL
HOLE IN SILVERED BACK PANEL TO LIGHT RED JEWEL
RIGHT SIDE LAMP FROM OUTSIDE THE CAR
RIGHT SIDE LAMP FROM OUTSIDE THE CAR
