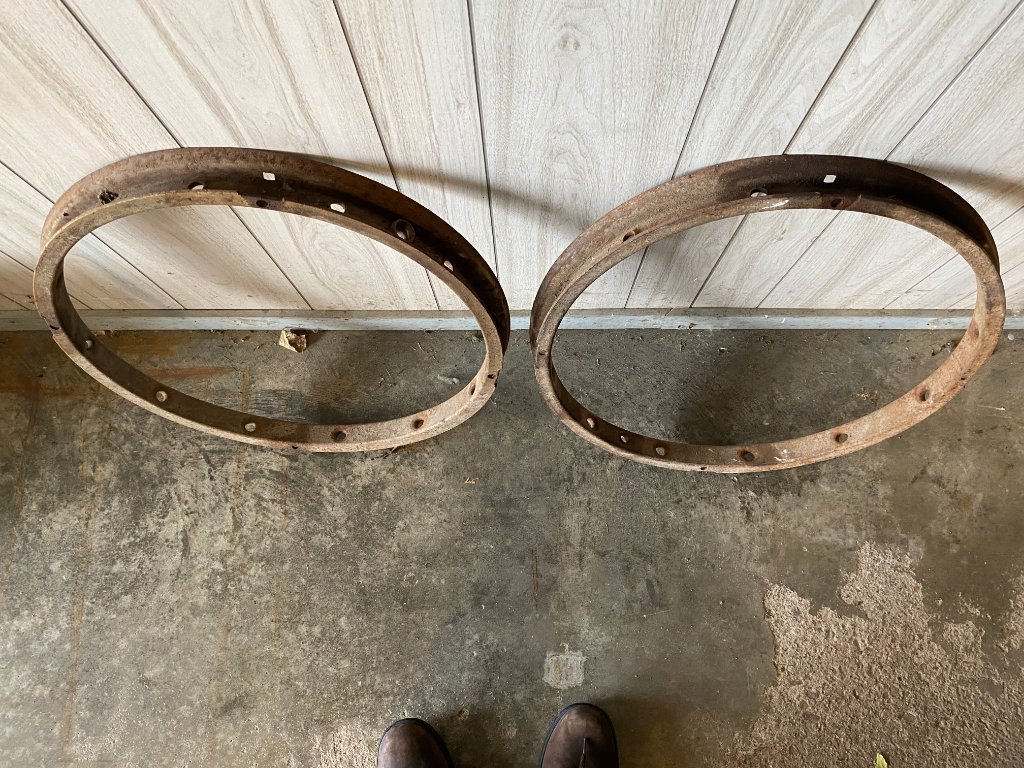

Definitely a novice but learning. I am new to the forum. I have 1924 Model T Touring that I need to replace the rear wheels to match the front. I have 30x3 1/2 demoutable wheels in the front I was able to pick up these two wheels f pictured below for the rear. To get the right rims I'm having trouble identifying if these demountable wheels are a Hayes or Kelsey so I can start looking for the right rims for the wheels. The wheel's are 23" but I don't see any markings to identify the maker.
Question #2 - Can I use split rims with these wheels or better question is there any restrictions to using split rims? I have clincher tires the Wards Riverside. Any input or direction would greatly be appreciated
1924 Touring Demountable Wheels and Rims
Forum rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
-
jmash2120
Topic author - Posts: 8
- Joined: Mon Oct 03, 2022 8:56 pm
- First Name: Joel
- Last Name: Mashek
- * REQUIRED* Type and Year of Model Ts owned: 1924 Model Touring
- Location: Sioux Falls, South Dakota
1924 Touring Demountable Wheels and Rims
- Attachments
-
-
- IMG-0108.jpg (46.12 KiB) Viewed 1273 times
-
-
Dan Hatch
- Posts: 5020
- Joined: Tue Jan 08, 2019 7:31 pm
- First Name: Dan
- Last Name: Hatch
- Location: Alabama
Re: 1924 Touring Demountable Wheels and Rims
Is that a cup at the valve stem hole?
-
speedytinc
- Posts: 4729
- Joined: Fri Feb 12, 2021 12:24 pm
- First Name: john
- Last Name: karvaly
- * REQUIRED* Type and Year of Model Ts owned: 14/15 wide track roadster. 23 touring, 27 roadster pickup, 20ish rajo touring
- Location: orange, ca
- Board Member Since: 2020
Re: 1924 Touring Demountable Wheels and Rims
Q2: Split rims are normally 21", so, no.
Proving for every rule is an exception.
There is such a thing as 30x3.5" split rims. I have seen only 1 set on a T & understand they are common in Argentina.
They take a non clincher type non beaded tire. (I would like to find a set to match a tire purchase mistake.)
I have not even seen any singles @ swap meets.
Proving for every rule is an exception.
There is such a thing as 30x3.5" split rims. I have seen only 1 set on a T & understand they are common in Argentina.
They take a non clincher type non beaded tire. (I would like to find a set to match a tire purchase mistake.)
I have not even seen any singles @ swap meets.
-
Norman Kling
- Posts: 4634
- Joined: Tue Jan 08, 2019 1:39 pm
- First Name: Norman
- Last Name: Kling
- Location: Alpine California
Re: 1924 Touring Demountable Wheels and Rims
If the front has 30 by 3 1/2" tires and those wheels are the same size, then you will need rims to fit the front. Those are clincher tires. They should match so you only need one spare to fit any of the wheels, so you will also need a rim for the spare.
Norm
Norm
-
RajoRacer
- Posts: 5174
- Joined: Sun Jan 06, 2019 12:18 pm
- First Name: Steve
- Last Name: Tomaso
- * REQUIRED* Type and Year of Model Ts owned: 1914 Touring, 1919 Centerdoor, 1924 TT C-Cab Express, 1925 Racer
- Location: Longbranch, WA
- Board Member Since: 2001
Re: 1924 Touring Demountable Wheels and Rims
Those felloes appear to be Hayes which require the matching rim with "footed" lug - see photos. Other rims will fit BUT if possible match them up.
- Attachments
-
-
-
Allan
- Posts: 6609
- Joined: Sun Jan 06, 2019 7:21 pm
- First Name: Allan
- Last Name: Bennett
- * REQUIRED* Type and Year of Model Ts owned: 1912 van, 1917 shooting brake, 1929 roadster buckboard, 1924 tourer, 1925 barn find buckboard, 1925 D &F wide body roadster, 1927LHD Tudor sedan.
- Location: Gawler, Australia
Re: 1924 Touring Demountable Wheels and Rims
I agree with Steve. They are likely Hayes rims. The relief in the felloe will take the Hayes rims with the foot on the lug. However, this means they can also take other brand rims with fixed lugs, so any fixed lug rim will suit.
John, my 1924 Tarrant special tourer had 4.40 x 23" tyres as part of the special package. BE tryes in that size are long gone. Instead, I have 4.40 x 23" straight sided tyres on Chev spit rims. Interestingly, one of these tyres I bought ready mounted on a clincher rim! Someone had spent a deal of time beating out the return lip on the rim, splitting it so the straight sided tyre could be mounted, and fitted it with the usual Kelsey loose lugs. It will be interesting if I ever get a flat in that tyre.
Allan from down under.
John, my 1924 Tarrant special tourer had 4.40 x 23" tyres as part of the special package. BE tryes in that size are long gone. Instead, I have 4.40 x 23" straight sided tyres on Chev spit rims. Interestingly, one of these tyres I bought ready mounted on a clincher rim! Someone had spent a deal of time beating out the return lip on the rim, splitting it so the straight sided tyre could be mounted, and fitted it with the usual Kelsey loose lugs. It will be interesting if I ever get a flat in that tyre.
Allan from down under.
