Where to buy extra large head carriage bolt

Post by Matt in California » Sun Oct 30, 2022 12:01 am

I am working on my Martin Perry project. It is missing a few of these. Anyone have a suggestion where I can find a replacement?
Thanks!

Matt
Top

Allan
Posts: 6609
Joined: Sun Jan 06, 2019 7:21 pm
First Name: Allan
Last Name: Bennett
* REQUIRED* Type and Year of Model Ts owned: 1912 van, 1917 shooting brake, 1929 roadster buckboard, 1924 tourer, 1925 barn find buckboard, 1925 D &F wide body roadster, 1927LHD Tudor sedan.
Location: Gawler, Australia

Re: Where to buy extra large head carriage bolt

Post by Allan » Sun Oct 30, 2022 12:23 am

Matt, I have restored to bronze welding a washer under the bolt head and dressing them down to suit. Works ok if you only need one or two.

Allan from down under.
Top
User avatar

Pep C Strebeck
Posts: 578
Joined: Sun Jan 06, 2019 11:12 am
First Name: Joseph
Last Name: M
Location: MI

Re: Where to buy extra large head carriage bolt

Post by Pep C Strebeck » Sun Oct 30, 2022 12:27 am

You might try looking at elevator bolts. They are pretty close to what you are looking for, but they seem to vary by the manufacturer, the head profile differs a bit (from manufacturer to manufacturer). I needed some when attaching a Kari-Keen trunk to my Model A.
"Remember son, there are two ways to do this: The right way, and your way” Thanks Dad, I love you too.

LOOKING FOR A LUFKIN No. 9A Height Gage Attachment.
Top
User avatar

Mark Chaffin
Posts: 4343
Joined: Sat Jan 12, 2019 12:11 pm
First Name: Mark
Last Name: Chaffin
* REQUIRED* Type and Year of Model Ts owned: 1911 Speedster, 1927 Lake Roadster
Location: Lake Elsinore
Board Member Since: 2001

Re: Where to buy extra large head carriage bolt

Post by Mark Chaffin » Sun Oct 30, 2022 12:28 am

Do a search for "step bolts".
Top
User avatar

Mark Chaffin
Posts: 4343
Joined: Sat Jan 12, 2019 12:11 pm
First Name: Mark
Last Name: Chaffin
* REQUIRED* Type and Year of Model Ts owned: 1911 Speedster, 1927 Lake Roadster
Location: Lake Elsinore
Board Member Since: 2001

Re: Where to buy extra large head carriage bolt

Post by Mark Chaffin » Sun Oct 30, 2022 12:30 am

Call Dave at the garage on Monday. We have several sizes in stock if you can't find any elsewhere. (951) 735-4791
Top
User avatar

TRDxB2
Posts: 6260
Joined: Tue Jan 08, 2019 4:56 pm
First Name: Frank
Last Name: Brandi
* REQUIRED* Type and Year of Model Ts owned: Speedsters (1919 w 1926 upgrades), 1926 (Ricardo Head)
Location: Moline IL
Board Member Since: 2018

Re: Where to buy extra large head carriage bolt

Post by TRDxB2 » Sun Oct 30, 2022 2:34 am

Try Grainger - & its step bolts that have the wider head
https://www.grainger.com/category/faste ... step-bolts
There are also Timber bolts but harder to find
They are different as the underside is not square https://www.portlandbolt.com/products/bolts/timber/
Attachments
The past is a great place and I don't want to erase it or to regret it, but I don't want to be its prisoner either.
Mick Jagger
Top

John kuehn
Posts: 4433
Joined: Sun Jan 06, 2019 8:00 pm
First Name: John
Last Name: Kuehn
* REQUIRED* Type and Year of Model Ts owned: 19 Roadster, 21 Touring, 24 Coupe
Location: Texas

Re: Where to buy extra large head carriage bolt

Post by John kuehn » Sun Oct 30, 2022 8:17 am

I’ve seen them at the larger Ace hardware stores.
Top
User avatar

RajoRacer
Posts: 5171
Joined: Sun Jan 06, 2019 12:18 pm
First Name: Steve
Last Name: Tomaso
* REQUIRED* Type and Year of Model Ts owned: 1914 Touring, 1919 Centerdoor, 1924 TT C-Cab Express, 1925 Racer
Location: Longbranch, WA
Board Member Since: 2001

Re: Where to buy extra large head carriage bolt

Post by RajoRacer » Sun Oct 30, 2022 11:25 am

What size you needing Matt ?
Top

ModelTWoods
Posts: 1418
Joined: Tue Jan 08, 2019 10:53 am
First Name: Terry
Last Name: Woods
* REQUIRED* Type and Year of Model Ts owned: 1927 Model T coupe, 1926 4 door sedan
Location: Cibolo (San Antonio), TX

Re: Where to buy extra large head carriage bolt

Post by ModelTWoods » Sun Oct 30, 2022 12:14 pm

I would agree the STEP BOLTS are closer in appearance to the original. All the ELEVATOR BOLTS that I have seen used on conveyor equipment in grain elevators, have a large diameter head, but they are flat and not 'domed'.
Top

Dallas Landers
Posts: 2825
Joined: Sun Jan 06, 2019 12:26 pm
First Name: Dallas
Last Name: Landers
* REQUIRED* Type and Year of Model Ts owned: 26 Rpu, 23 TT, 24 coupe,
Location: N.E. Indiana

Re: Where to buy extra large head carriage bolt

Post by Dallas Landers » Sun Oct 30, 2022 12:16 pm

I used elevator bolts. Turned down on my lathe to the shape I wanted to match for the 8in1 truck body. I was ably to located the bolt
s for the MP cab from old salvaged hardware I had collected and friends collections.
Top

Don
Posts: 20
Joined: Thu Jan 17, 2019 5:11 pm
First Name: Don
Last Name: Azevedo
* REQUIRED* Type and Year of Model Ts owned: 5
Location: California
Board Member Since: 2003

Re: Where to buy extra large head carriage bolt

Post by Don » Sun Oct 30, 2022 1:59 pm

Do you need 5/16" or 3/8" step bolts? How many do you need? I may be able to help.
Don
Top
User avatar

Topic author
Matt in California
Posts: 774
Joined: Sun Jan 06, 2019 5:42 pm
First Name: Matt
Last Name: G
* REQUIRED* Type and Year of Model Ts owned: 1926 Touring, 1926 Fordor Project, TT C-cab flatbed farm field find, TT dump truck project
Location: California

Re: Where to buy extra large head carriage bolt

Post by Matt in California » Sun Oct 30, 2022 5:09 pm

Wow I appreciate all the offers for help!

I started at Ace Hardware and asked the staff a while back and they said they didn’t have those. I recently met the “bolt guy” that actually stocks the bolts for all the stores he also confirmed that they don’t carry it. The guy actually mentioned that I could try other locations that may have old stock.

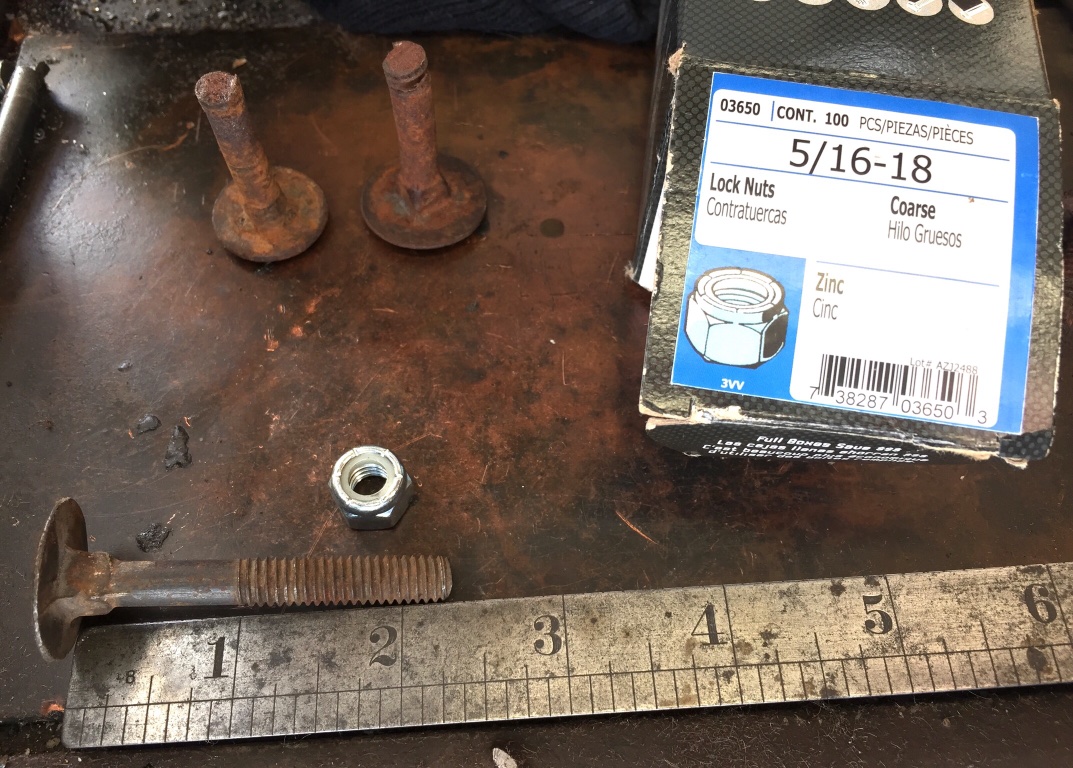

The project is stored offsite but here are two bolts (in top of photo) that I took off. I believe they were both used to hold a fender bracket. One has a square that you normally find under a carriage bowl. The other one barely has a rib. Is that a timber bolt? In any case one of them must’ve been replaced. Does anyone know what Martin Perry originally used?
The originals were cut off by a previous owner. I happen to have one bolt that would work as a replacement. It is 2 1/4 inches long and 5/16 diameter.

Thanks!

Matt
Top

Scott_Conger
Posts: 6523
Joined: Sun Jan 06, 2019 11:18 am
First Name: Scott
Last Name: Conger
* REQUIRED* Type and Year of Model Ts owned: 1919
Location: not near anywhere, WY
Board Member Since: 2005

Re: Where to buy extra large head carriage bolt

Post by Scott_Conger » Sun Oct 30, 2022 5:27 pm

https://www.aftfasteners.com/3-4-4-1-2x ... -bulk-pkg/

whack off 1/4" and move on
Scott Conger

Tyranny under the guise of law is still Tyranny

NH Full Flow Float Valves™
Obsolete carburetor parts manufactured
Top

John kuehn
Posts: 4433
Joined: Sun Jan 06, 2019 8:00 pm
First Name: John
Last Name: Kuehn
* REQUIRED* Type and Year of Model Ts owned: 19 Roadster, 21 Touring, 24 Coupe
Location: Texas

Re: Where to buy extra large head carriage bolt

Post by John kuehn » Sun Oct 30, 2022 5:37 pm

Amazon has all kinds of step bolts.
Top
User avatar

BuddyTheRoadster
Posts: 130
Joined: Sun Feb 24, 2019 4:29 pm
First Name: Chris
Last Name: Rini
* REQUIRED* Type and Year of Model Ts owned: 1923 roadster
Location: Huntington Beach CA

Re: Where to buy extra large head carriage bolt

Post by BuddyTheRoadster » Sun Oct 30, 2022 11:18 pm

Check out Blacksmith Bolt as well. https://www.blacksmithbolt.com/ I use them for proper milled wood screws in my pump organ repairs.
