Angle of the windshield of a '26 roadster

Post by Will Brown » Fri Aug 25, 2023 4:21 pm

I am about to install the top and side curtains of my 26 Roadster. At what angle should the windshield be? Is it straight up and down, or does it have a rake to it? If it has a rake, how much should it be?
Thanks!


Professor Fate
Posts: 755
Joined: Tue Jan 08, 2019 12:39 am
First Name: Dan
Last Name: S
* REQUIRED* Type and Year of Model Ts owned: '23 and '26
Location: Taxachusetts
Board Member Since: 2015

Re: Angle of the windshield of a '26 roadster

Post by Professor Fate » Fri Aug 25, 2023 4:50 pm

On a '26, the windshield brackets mount with 3 bolts per side to the cowl. The '26 brackets have a rake or sweep to the rear from the front of the car.
The brackets pictured are only as high as the bottom glass.
________________
**FATE**
---------------------------


Allan
Posts: 6609
Joined: Sun Jan 06, 2019 7:21 pm
First Name: Allan
Last Name: Bennett
* REQUIRED* Type and Year of Model Ts owned: 1912 van, 1917 shooting brake, 1929 roadster buckboard, 1924 tourer, 1925 barn find buckboard, 1925 D &F wide body roadster, 1927LHD Tudor sedan.
Location: Gawler, Australia

Re: Angle of the windshield of a '26 roadster

Post by Allan » Fri Aug 25, 2023 8:17 pm

The angle is set by the three bolts and corresponding holes in the pillars and the cowl. The angle is not adjustable, though there may be a little wriggle room in the bolt holes to help get them aligned with each other. Once you have them aligned, the new top is made to conform to the setting
As stated, your pillars have been cut off just above the lower pivot point.

Allan from down under.


Norman Kling
Posts: 4634
Joined: Tue Jan 08, 2019 1:39 pm
First Name: Norman
Last Name: Kling
Location: Alpine California

Re: Angle of the windshield of a '26 roadster

Post by Norman Kling » Fri Aug 25, 2023 8:23 pm

Those brackets don't look right. The top of the bracket should have a post where the front bow bolts. It is a bit hard to see in the above pictures, but the touring is same as the Roadster. Note: there are two holes for the windshield sections. I think your brackets have been shortened to make a speedster.
Norm

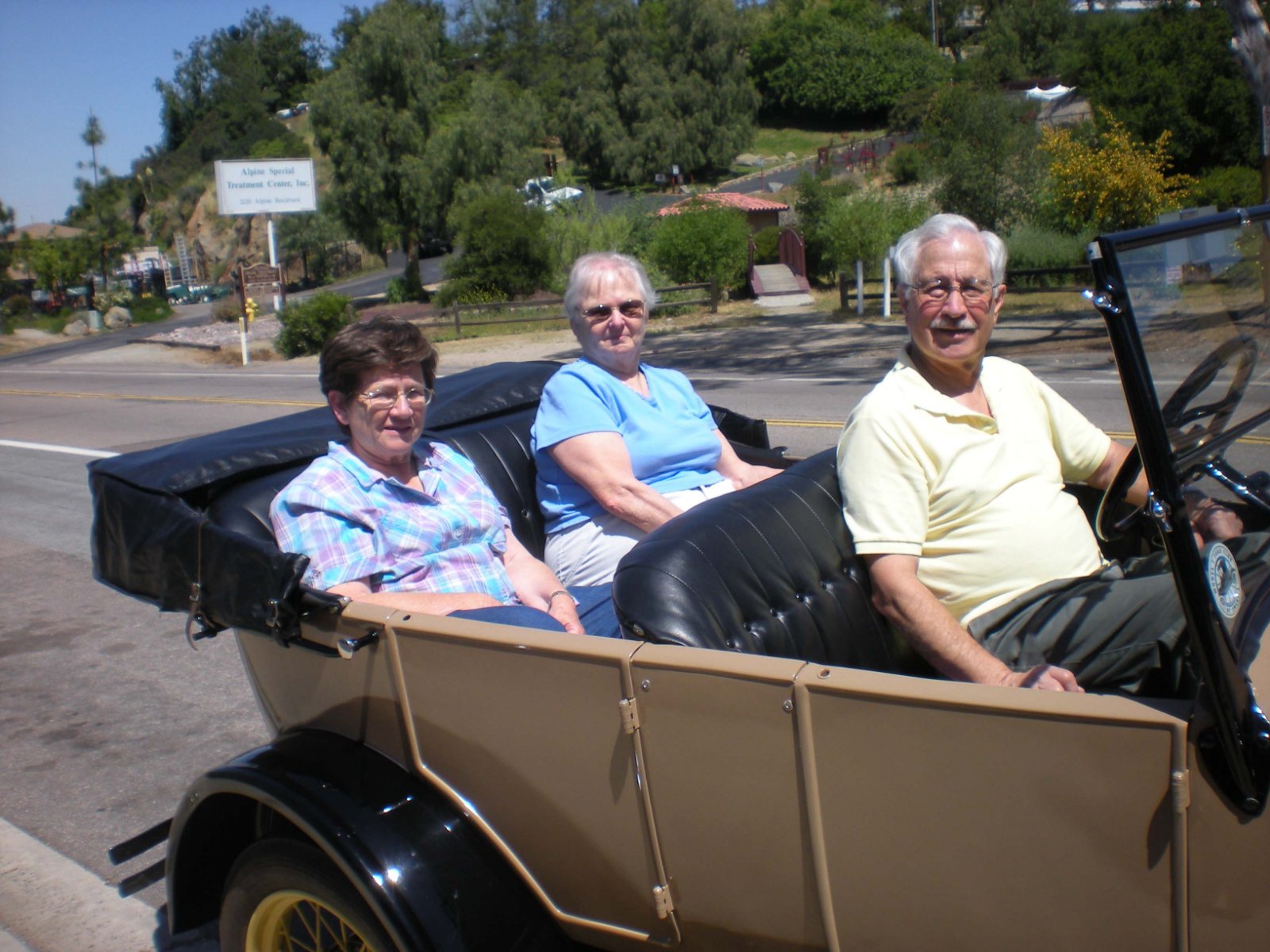

Harrison Ford.jpg


John kuehn
Posts: 4433
Joined: Sun Jan 06, 2019 8:00 pm
First Name: John
Last Name: Kuehn
* REQUIRED* Type and Year of Model Ts owned: 19 Roadster, 21 Touring, 24 Coupe
Location: Texas

Re: Angle of the windshield of a '26 roadster

Post by John kuehn » Fri Aug 25, 2023 8:28 pm

I have to say the primed brackets aren’t correct for a 26 Touring or Roadster. As far as the rake goes it’s determined by the bracket angle when it’s attached to the body. Norms correct on this..


Norman Kling
Posts: 4634
Joined: Tue Jan 08, 2019 1:39 pm
First Name: Norman
Last Name: Kling
Location: Alpine California

Re: Angle of the windshield of a '26 roadster

Post by Norman Kling » Fri Aug 25, 2023 8:33 pm

I found a better picture which shows the top of the post. That small part at the top is where the front bow clamps to the post.
Norm


Professor Fate
Posts: 755
Joined: Tue Jan 08, 2019 12:39 am
First Name: Dan
Last Name: S
* REQUIRED* Type and Year of Model Ts owned: '23 and '26
Location: Taxachusetts
Board Member Since: 2015

Re: Angle of the windshield of a '26 roadster

Post by Professor Fate » Fri Aug 25, 2023 8:52 pm

The primed windshield posts in the above pic that you saw, have been cut down for only one pane of glass. They are at the stock correct angle, and were mounted on the cowl of my '26 as Henry intended. No modification there. Here's a pic of my car with a full windshield with 2 panes of glass.
And here's a pic of my speedster after restoration with the shortened posts you saw pictured in primer above.
Attachments
Last edited by Professor Fate on Fri Aug 25, 2023 11:20 pm, edited 1 time in total.
________________
**FATE**
---------------------------


TXGOAT2
Posts: 7391
Joined: Sun Feb 14, 2021 10:08 pm
First Name: Pat
Last Name: McNallen
* REQUIRED* Type and Year of Model Ts owned: 1926-7 roadster
Location: Graham, Texas
Board Member Since: 2021

Re: Angle of the windshield of a '26 roadster

Post by TXGOAT2 » Fri Aug 25, 2023 9:36 pm

If you use '26 or '27 windshield posts on an unmodified '26 or '27 body, the windshield angle will be correct.

It's also important that the rear top bow angle be correct for the top to fit and look like it should.

Be sure you have information on how to position the rear top bow.

User avatar

Humblej
Posts: 1957
Joined: Sun Jan 06, 2019 12:23 pm
First Name: Jeff
Last Name: Humble
* REQUIRED* Type and Year of Model Ts owned: 1926 Canadian coupe, 1924 TT C-cab, 1924 runabout
Location: Charlevoix, Mi
Board Member Since: 2006

Re: Angle of the windshield of a '26 roadster

Post by Humblej » Fri Aug 25, 2023 9:53 pm

Will,
Can you post a picture of your car.


Topic author
Will Brown
Posts: 28
Joined: Sun Jan 06, 2019 11:25 am
First Name: Will
Last Name: Brown
* REQUIRED* Type and Year of Model Ts owned: 26 Runabout
Location: Garrison, New York

Re: Angle of the windshield of a '26 roadster

Post by Will Brown » Sun Aug 27, 2023 10:54 am

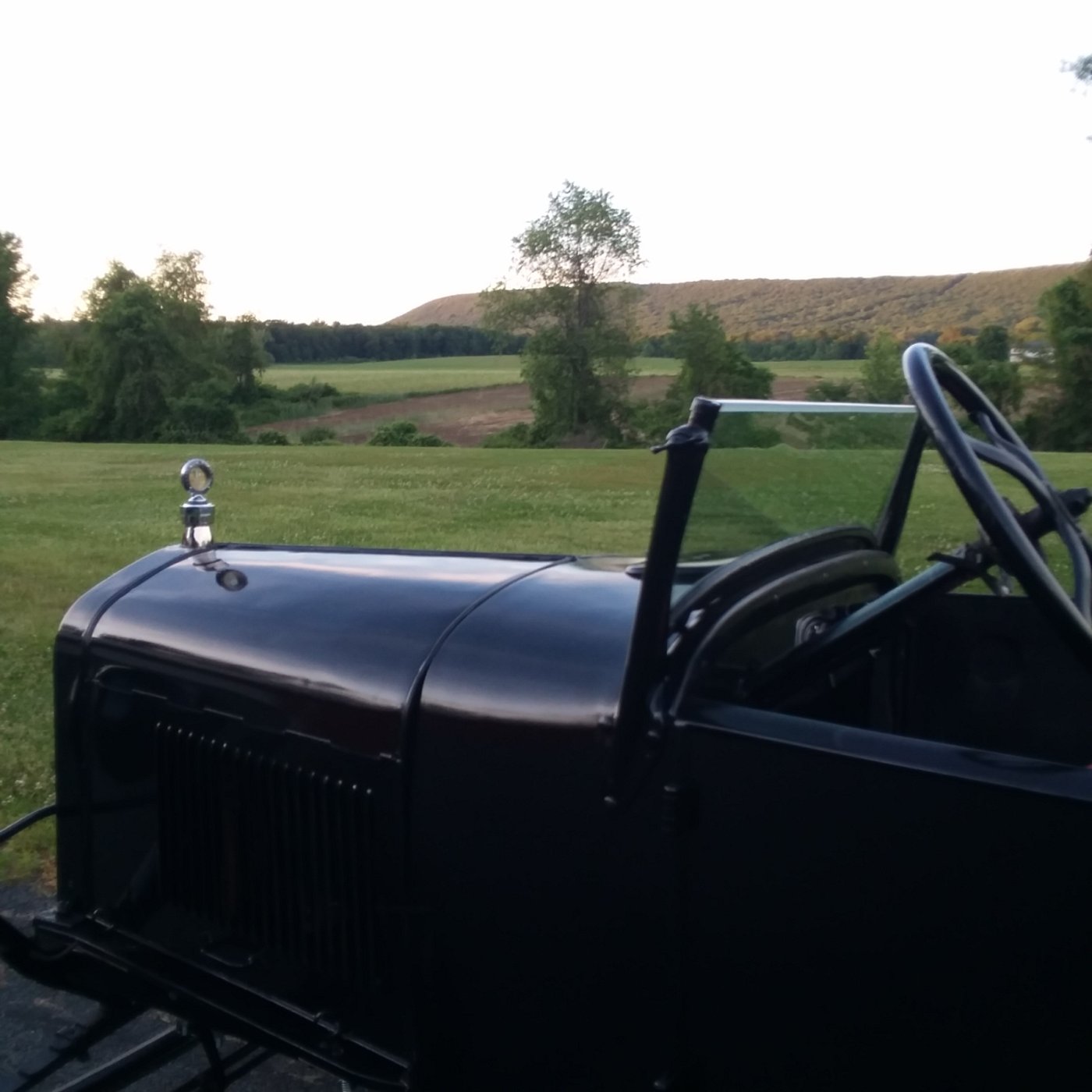

Here is a photo of my roadster. I think the question has been answered that there is a slight slope to the rear of the windshield stantions. Here is a picture of the T before I added the headlights.
Model T 027.jpg


speedytinc
Posts: 4729
Joined: Fri Feb 12, 2021 12:24 pm
First Name: john
Last Name: karvaly
* REQUIRED* Type and Year of Model Ts owned: 14/15 wide track roadster. 23 touring, 27 roadster pickup, 20ish rajo touring
Location: orange, ca
Board Member Since: 2020

Re: Angle of the windshield of a '26 roadster

Post by speedytinc » Sun Aug 27, 2023 12:35 pm

TXGOAT2 wrote:
Fri Aug 25, 2023 9:36 pm
If you use '26 or '27 windshield posts on an unmodified '26 or '27 body, the windshield angle will be correct.

It's also important that the rear top bow angle be correct for the top to fit and look like it should.

Be sure you have information on how to position the rear top bow.
................If the W/S stanchions are not bent or were not bent & straightened not quite right.

I have seen stands on a restored 23 touring that were ridiculously bent too far back. Owner was not aware.
Sands a factory spec, I would compare my mounted set to factory car photos. That was how I set the rear bow angle also.

User avatar

George House
Posts: 2814
Joined: Sun Jan 06, 2019 5:25 pm
First Name: George
Last Name: House
* REQUIRED* Type and Year of Model Ts owned: ‘10 Maxwell AA, ‘11Hupp Model 20, Two 1914 Ford runabouts, 19 centerdoor, 25 C Cab,26 roadster
Location: Northern Caldwell County TX
MTFCA Life Member: YES
Board Member Since: 1999

Re: Angle of the windshield of a '26 roadster

Post by George House » Sun Aug 27, 2023 4:57 pm

Will,
…Your windshield stanchions are correct………. Just because they look like mine 😜 …and your wheels are of a nice color - although they’re not dusty 😜
Attachments
A Fine is a Tax for Doing Something Wrong….A Tax is a Fine for Doing Something RIGHT 🤔


Ken Buhler
Posts: 515
Joined: Mon Jan 21, 2019 4:14 pm
First Name: Ken
Last Name: Buhler
* REQUIRED* Type and Year of Model Ts owned: 1927 Roadster 1927 Coupe
Location: Kelowna B.C.
Board Member Since: 2012

Re: Angle of the windshield of a '26 roadster

Post by Ken Buhler » Tue Aug 29, 2023 5:09 pm

Hello Will,
Go to my post of Jan 21/19 called Improved Open Car Surgery and Build. Scroll down to where I show the vertical straight edge. The forward edge of the front roof bow aligns perfectly with the hinge pins. These cars were designed on a graph with verticals, horizontals, and compass drawn arcs.
Ken
Work honestly
Stay true to your word
Get the job done right
