FO-11 Stanley muffler
Looking to replace my muffler on the 1924 touring. I’ve heard it done that the 9N tractor muffler (Stanley FO-11) is a suitable replacement, and according to the specs it looks like it will work. Anyone who has used one, could they share how they mounted it? I don’t have a welder so other than taking it to a muffler shop, I have no resource to add a bracket.
-
rnwilliams
- Posts: 198
- Joined: Sun Jan 06, 2019 11:31 pm
- First Name: Ricky
- Last Name: Williams
- * REQUIRED* Type and Year of Model Ts owned: 11 Torpedo, 12 Com. Rdstr, 12 Delivery, 2-12 Tou, 15 Tou, 21 Cpe, 25 Cpe 25 TT, 26 TT, 27TT, 26 PU, 26 Tou, 2-26 4dr, 26 Del, 27 4dr
- Location: Humboldt, TN
- Contact:
Re: FO-11 Stanley muffler

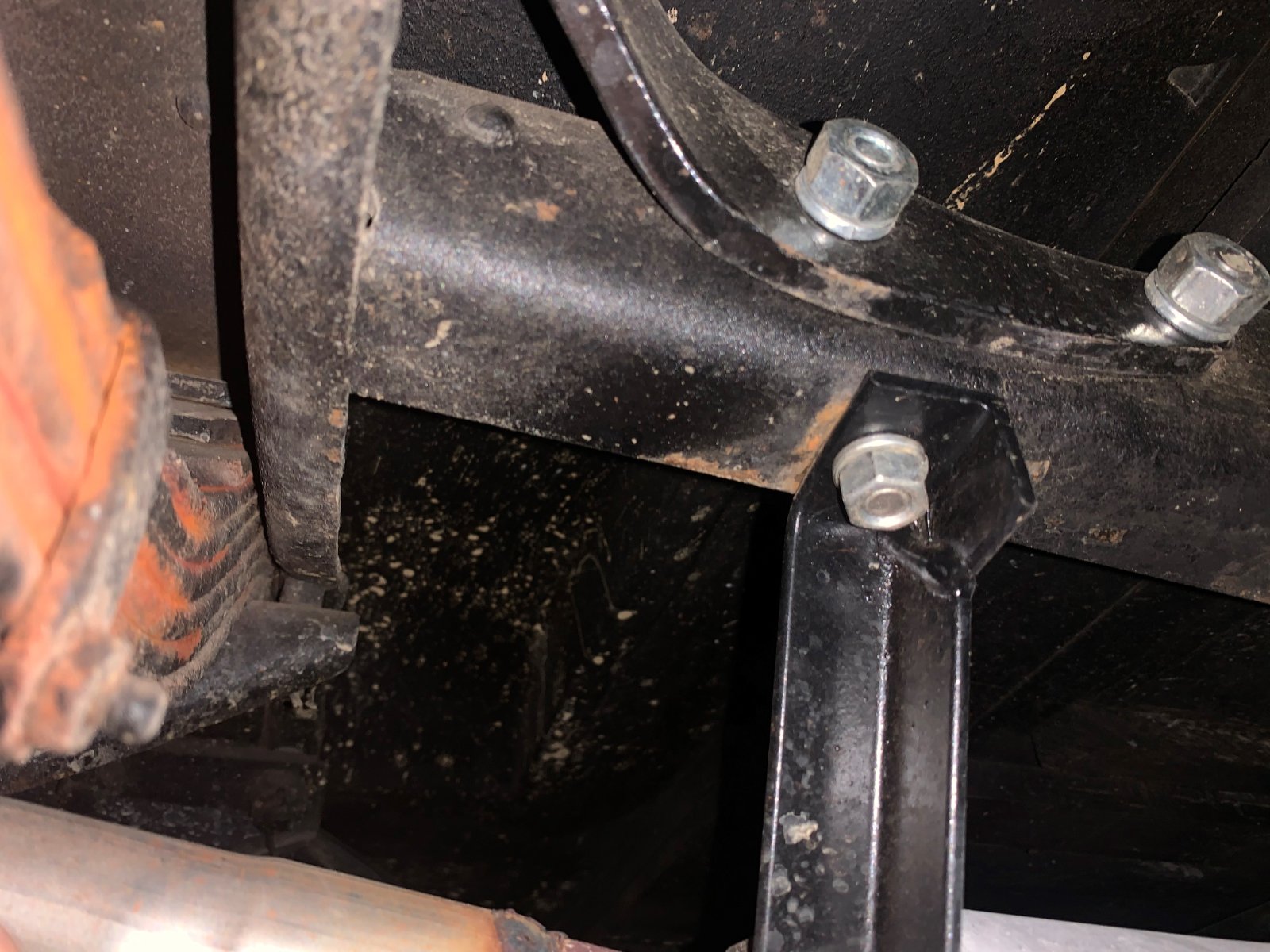

This might be a little hard to make out but I build a bracket from 1" angle iron, bolted it to the frame in the muffler hole and put a U bolt around the pipe.
Richard Williams, Humboldt, TN
President, Tennessee T's inc.
President, Tennessee T's inc.
-
DanTreace
- Posts: 3812
- Joined: Sun Jan 06, 2019 10:56 am
- First Name: Dan
- Last Name: Treace
- * REQUIRED* Type and Year of Model Ts owned: ‘12 open express,'23 cutoff, '27 touring
- Location: North Central FL
- Board Member Since: 2000
- Contact:
Re: FO-11 Stanley muffler
Here's another post on using a tractor muffler.
viewtopic.php?t=7046
Usually just purchase a hanging strap w/ or w/o rubber clamp end, two muffler clamps and mount it up!
viewtopic.php?t=7046
Usually just purchase a hanging strap w/ or w/o rubber clamp end, two muffler clamps and mount it up!
The best way is always the simplest. The attics of the world are cluttered up with complicated failures. Henry Ford
Don’t find fault, find a remedy; anybody can complain. Henry Ford
Don’t find fault, find a remedy; anybody can complain. Henry Ford
-
Humblej
- Posts: 1957
- Joined: Sun Jan 06, 2019 12:23 pm
- First Name: Jeff
- Last Name: Humble
- * REQUIRED* Type and Year of Model Ts owned: 1926 Canadian coupe, 1924 TT C-cab, 1924 runabout
- Location: Charlevoix, Mi
- Board Member Since: 2006
Re: FO-11 Stanley muffler
The stock Ford 9N muffler is a one piece muffler and exhaust pipe, perhaps you are looking at an NAA or hundred series tractor muffler. I have always run what the vendors sell for the steel end Ford muffler and exhaust pipe, allows the exhaust pipe to turn and twist with frame twisting. Never had a problem besides blowing one apart during a backfire. Solved that by brazing the ends to the outer shell, the inner shell will still turn and allow the exhaust pipe to twist. My current muffler and exhaust pipe have been on for over 20 years and still holding up.
-
Bob Sacchi
Topic author - Posts: 22
- Joined: Wed Jun 24, 2020 8:32 am
- First Name: Robert
- Last Name: Sacchi
- Location: Middletown New York
- Board Member Since: 2007
Re: FO-11 Stanley muffler
Excellent ideas guys - thanks!
-
DHort
- Posts: 2826
- Joined: Sun Jan 06, 2019 1:30 pm
- First Name: Dave
- Last Name: Hjortnaes
- * REQUIRED* Type and Year of Model Ts owned: 24 Speedster, 20 touring
- Location: Men Falls, WI
Re: FO-11 Stanley muffler
My muffler fell off and Dallas and were able to put it back on. It is an FO-11.
It is not clamped to the exhaust pipe. I had to open the front of the muffler with a file so
it would slide in place like it is suppose to. Then we installed a clamp like you see here that
I picked up at Autozone.
Either one of these should work and it allows the muffler to swing a little bit back and forth
so it can move with the car.
It is not clamped to the exhaust pipe. I had to open the front of the muffler with a file so
it would slide in place like it is suppose to. Then we installed a clamp like you see here that
I picked up at Autozone.
- muff4.jpg (663 Bytes) Viewed 1719 times
- muff3.jpg (702 Bytes) Viewed 1719 times
so it can move with the car.
-
Dallas Landers
- Posts: 2825
- Joined: Sun Jan 06, 2019 12:26 pm
- First Name: Dallas
- Last Name: Landers
- * REQUIRED* Type and Year of Model Ts owned: 26 Rpu, 23 TT, 24 coupe,
- Location: N.E. Indiana
Re: FO-11 Stanley muffler
Now how will I get you to my place with that fixed?
-
DHort
- Posts: 2826
- Joined: Sun Jan 06, 2019 1:30 pm
- First Name: Dave
- Last Name: Hjortnaes
- * REQUIRED* Type and Year of Model Ts owned: 24 Speedster, 20 touring
- Location: Men Falls, WI
Re: FO-11 Stanley muffler
I know where you live, sort of. I can always stop on my way to Detroit to visit my in-laws.
