Which Spark Plug to Use in Early Low Head

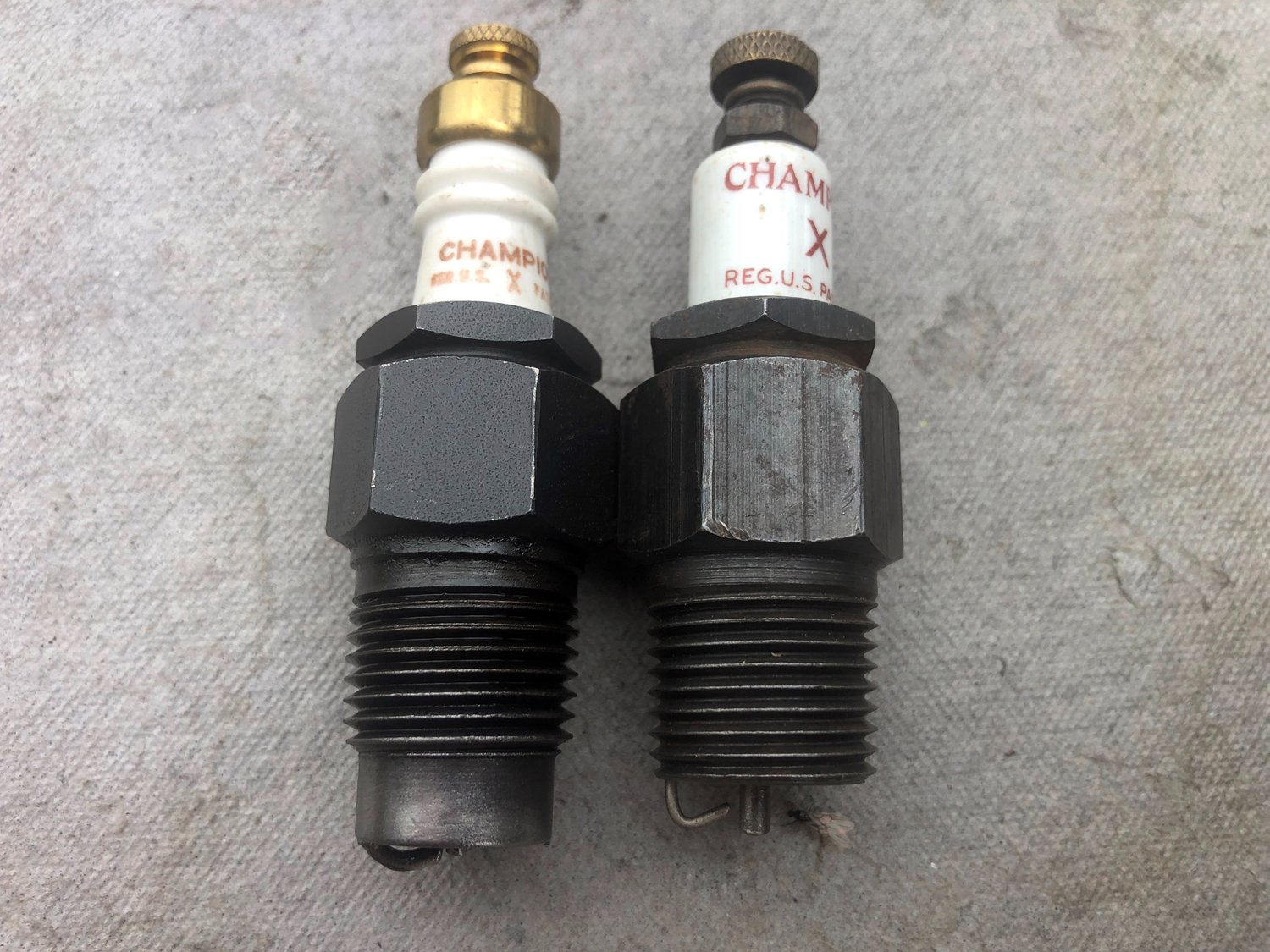

I have a 1912 with original engine. My question is what type of spark plug do you folks with the early Model T "low" heads run? My understanding is that the early heads had a moderately higher compression ratio. In the photo below there is a repro Champion X on the left, and an earlier Champion X original on the right. When I assess the early low head combustion chamber, I conclude that a repro Champion X would run too hot as it protrudes too far into the combustion chamber. What plugs do you run in the earlier, low cylinder heads (assume an all-stock engine setup).
- Attachments
-
-
RajoRacer
- Posts: 5171
- Joined: Sun Jan 06, 2019 12:18 pm
- First Name: Steve
- Last Name: Tomaso
- * REQUIRED* Type and Year of Model Ts owned: 1914 Touring, 1919 Centerdoor, 1924 TT C-Cab Express, 1925 Racer
- Location: Longbranch, WA
- Board Member Since: 2001
Re: Which Spark Plug to Use in Early Low Head
I run straight side Champion X plugs but they're not reproduced & useable originals are few & far between !
-
NealW
- Posts: 481
- Joined: Sun Jan 13, 2019 6:20 pm
- First Name: Neal
- Last Name: Willford
- * REQUIRED* Type and Year of Model Ts owned: 1911 Touring, 1929 Model A Tudor
- Location: Kansas
- Contact:
Re: Which Spark Plug to Use in Early Low Head
I run the repo Champion X plugs in our 1911 touring (and 1911 engine) and it runs fine.
-
speedytinc
- Posts: 4725
- Joined: Fri Feb 12, 2021 12:24 pm
- First Name: john
- Last Name: karvaly
- * REQUIRED* Type and Year of Model Ts owned: 14/15 wide track roadster. 23 touring, 27 roadster pickup, 20ish rajo touring
- Location: orange, ca
- Board Member Since: 2020
Re: Which Spark Plug to Use in Early Low Head
The compression differences in the early heads are minimal. 4-1 vs 3.9-1.
I currently run the new brass tops in a milled head with hi dome pistons. 95# compression. (6-1)
Previous was stock head & compression. Both ways ran fine.
I currently run the new brass tops in a milled head with hi dome pistons. 95# compression. (6-1)
Previous was stock head & compression. Both ways ran fine.
