26-27 fuel line curve

Post by NY John T » Tue Nov 14, 2023 10:08 am

Hi all,
I have a question about the shape of the fuel line for a 26-27 fuel line coming from the cowl tank. I've seen photos of this line bent in a "upside down backwards question mark". Is there a logic for having this shape? Is the reason to give the gas more surface area before entering the carb? Or keeping it away from the heat of the exhaust pipe? Or giving better access to the carb/choke area? Any thoughts?
Thanks,
John


Adam
Posts: 1550
Joined: Sun Jan 06, 2019 11:57 am
First Name: Adam
Last Name: Doleshal
* REQUIRED* Type and Year of Model Ts owned: ‘13 Touring, ‘24 Touring, ‘25 TT dump truck, ‘26 Tudor, ‘20 Theiman harvester T powerplant, ‘20 T Staude tractor
Location: Wisconsin
Board Member Since: 2000

Re: 26-27 fuel line curve

Post by Adam » Tue Nov 14, 2023 10:14 am

The larger radius allows it to gently bend & flex so vibration and engine to frame flex are less likely to break it.


jiminbartow
Posts: 2434
Joined: Sun Jan 06, 2019 10:55 pm
First Name: James
Last Name: Patrick
* REQUIRED* Type and Year of Model Ts owned: 1926 Coupe
Location: Bartow, FL
Board Member Since: 2001

Re: 26-27 fuel line curve

Post by jiminbartow » Tue Nov 14, 2023 10:25 am

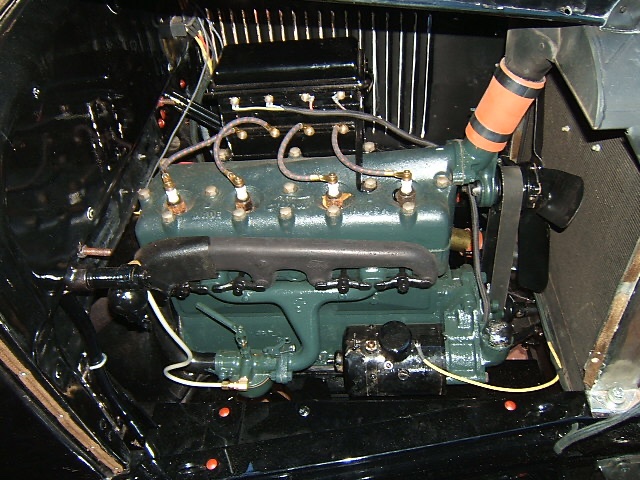

There was no method to my madness. The tube was a little long so I gently bent it to fit. If there are any benefits to the bend I used, it was strictly accidental. Jim Patrick



Ken Buhler
Posts: 515
Joined: Mon Jan 21, 2019 4:14 pm
First Name: Ken
Last Name: Buhler
* REQUIRED* Type and Year of Model Ts owned: 1927 Roadster 1927 Coupe
Location: Kelowna B.C.
Board Member Since: 2012

Re: 26-27 fuel line curve

Post by Ken Buhler » Tue Nov 14, 2023 10:28 am

John,
These are two originals. They are made of rolled flat material that is then soldered.
Fuel Line.jpg
Work honestly
Stay true to your word
Get the job done right


Adam
Posts: 1550
Joined: Sun Jan 06, 2019 11:57 am
First Name: Adam
Last Name: Doleshal
* REQUIRED* Type and Year of Model Ts owned: ‘13 Touring, ‘24 Touring, ‘25 TT dump truck, ‘26 Tudor, ‘20 Theiman harvester T powerplant, ‘20 T Staude tractor
Location: Wisconsin
Board Member Since: 2000

Re: 26-27 fuel line curve

Post by Adam » Tue Nov 14, 2023 10:31 am

Jim, That is pretty close…

Here’s how it is supposed to look:



Original Smith
Posts: 3699
Joined: Tue Jan 08, 2019 10:43 am
First Name: Larry
Last Name: Smith
* REQUIRED* Type and Year of Model Ts owned: 13 Touring, 13 Roadster, 17 Coupelet, 25 Roadster P/U
Location: Lomita, California
MTFCA Life Member: YES

Re: 26-27 fuel line curve

Post by Original Smith » Tue Nov 14, 2023 11:11 am

Looks right on to me. I can remember I had a 1926 way back that I put a NOS original on.

User avatar

TRDxB2
Posts: 6262
Joined: Tue Jan 08, 2019 4:56 pm
First Name: Frank
Last Name: Brandi
* REQUIRED* Type and Year of Model Ts owned: Speedsters (1919 w 1926 upgrades), 1926 (Ricardo Head)
Location: Moline IL
Board Member Since: 2018

Re: 26-27 fuel line curve

Post by TRDxB2 » Tue Nov 14, 2023 11:48 am

If you've ever replaced the supply line to your sink or toilet you realized that the supply line needs to go straight into the fitting for a good seal. As stated above the original lines were rolled and soldered and sharp bends could split or kink the line when attaching both ends. The question mark bend is a result of making it easier to insert the line into the fittings. Also as Adam stated it gives some flex from vibrations keeping the line straight into the fitting.
Attachments
fuel line connections.jpg
The past is a great place and I don't want to erase it or to regret it, but I don't want to be its prisoner either.
Mick Jagger

User avatar

Mark Nunn
Posts: 1241
Joined: Mon Jan 07, 2019 8:01 am
First Name: Mark
Last Name: Nunn
* REQUIRED* Type and Year of Model Ts owned: 1926 Runabout
Location: Bennington, NE
Board Member Since: 2017

Re: 26-27 fuel line curve

Post by Mark Nunn » Tue Nov 14, 2023 1:59 pm

I found a drawing on this forum or one of our suppliers' websites that showed the factory dimensions. That was a few years ago and don't have it now. I search may locate the drawing.


jiminbartow
Posts: 2434
Joined: Sun Jan 06, 2019 10:55 pm
First Name: James
Last Name: Patrick
* REQUIRED* Type and Year of Model Ts owned: 1926 Coupe
Location: Bartow, FL
Board Member Since: 2001

Re: 26-27 fuel line curve

Post by jiminbartow » Tue Nov 14, 2023 5:18 pm

My picture was taken from above so the bend looks sharper than it is. When viewed from the side, it looks just like the one in Fig. 561 and the two originals posted by Ken. A happy accident. When I bought the car the tube was bent into a loop. Jim Patrick
