Does anyone know if the sub frame from a 1926 T Coupe will work
for a 26 Roadster?
Bill H.
Sub Frame Question
Forum rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
-
BarnesvilleT
Topic author - Posts: 98
- Joined: Mon Nov 14, 2022 8:26 am
- First Name: William
- Last Name: Hallada
- * REQUIRED* Type and Year of Model Ts owned: 1926 Model T Coupe
- Location: Barnesville, GA
-
Jerry VanOoteghem
- Posts: 4082
- Joined: Sun Jan 06, 2019 4:06 pm
- First Name: Jerry
- Last Name: Van
- Location: S.E. Michigan
Re: Sub Frame Question
What do you mean by "sub frame"? If you just mean "frame", then yes, it should work with either body style.
-
BarnesvilleT
Topic author - Posts: 98
- Joined: Mon Nov 14, 2022 8:26 am
- First Name: William
- Last Name: Hallada
- * REQUIRED* Type and Year of Model Ts owned: 1926 Model T Coupe
- Location: Barnesville, GA
Re: Sub Frame Question
It is the lower structure that the body attaches to and then that mounts to the frame.
-
Norman Kling
- Posts: 4634
- Joined: Tue Jan 08, 2019 1:39 pm
- First Name: Norman
- Last Name: Kling
- Location: Alpine California
Re: Sub Frame Question
I don't know about the coupe, but the Roadster and Touring have that part as part of the all steel body. Only the strip to which the trim is tacked and the floorboards are wood on those bodies. There are also wood strips behind the seat backrests.
Norm
Norm
-
BarnesvilleT
Topic author - Posts: 98
- Joined: Mon Nov 14, 2022 8:26 am
- First Name: William
- Last Name: Hallada
- * REQUIRED* Type and Year of Model Ts owned: 1926 Model T Coupe
- Location: Barnesville, GA
Re: Sub Frame Question
I picked up some roadster parts from a T owner and they have a stripped sub-frame in their shop
where they removed the seat area and cowl from it.
I have another owner that has a stripped sub-frame from a Coupe. Without having the two side by side
I don't know if they are the same. Some body parts from each model are the same so I am hoping that
sub-frames are the same.
where they removed the seat area and cowl from it.
I have another owner that has a stripped sub-frame from a Coupe. Without having the two side by side
I don't know if they are the same. Some body parts from each model are the same so I am hoping that
sub-frames are the same.
-
TMiller6
- Posts: 278
- Joined: Sun Jan 06, 2019 10:11 pm
- First Name: Thomas
- Last Name: Miller
- * REQUIRED* Type and Year of Model Ts owned: 16, 24, 26 Touring - 26 Roadster and Fordor
- Location: SE MI
- Board Member Since: 2006
Re: Sub Frame Question
For your research….
Don Booth’s photo of the Coupe underbody is here:
http://www.mtfca.com/discus/messages/70 ... 1504972163
Roger Karlsson’s Roadster underbody is here:
http://www.mtfca.com/discus/messages/59 ... 1480090441
Snyder’s body blocks are the same for both bodies.
Don Booth’s photo of the Coupe underbody is here:
http://www.mtfca.com/discus/messages/70 ... 1504972163
Roger Karlsson’s Roadster underbody is here:
http://www.mtfca.com/discus/messages/59 ... 1480090441
Snyder’s body blocks are the same for both bodies.
Tom Miller
One who cannot find beauty in an engine cannot find beauty in the universe.
One who cannot find beauty in an engine cannot find beauty in the universe.
-
Humblej
- Posts: 1957
- Joined: Sun Jan 06, 2019 12:23 pm
- First Name: Jeff
- Last Name: Humble
- * REQUIRED* Type and Year of Model Ts owned: 1926 Canadian coupe, 1924 TT C-cab, 1924 runabout
- Location: Charlevoix, Mi
- Board Member Since: 2006
Re: Sub Frame Question
No, they are not the same.
-
TRDxB2
- Posts: 6260
- Joined: Tue Jan 08, 2019 4:56 pm
- First Name: Frank
- Last Name: Brandi
- * REQUIRED* Type and Year of Model Ts owned: Speedsters (1919 w 1926 upgrades), 1926 (Ricardo Head)
- Location: Moline IL
- Board Member Since: 2018
Re: Sub Frame Question

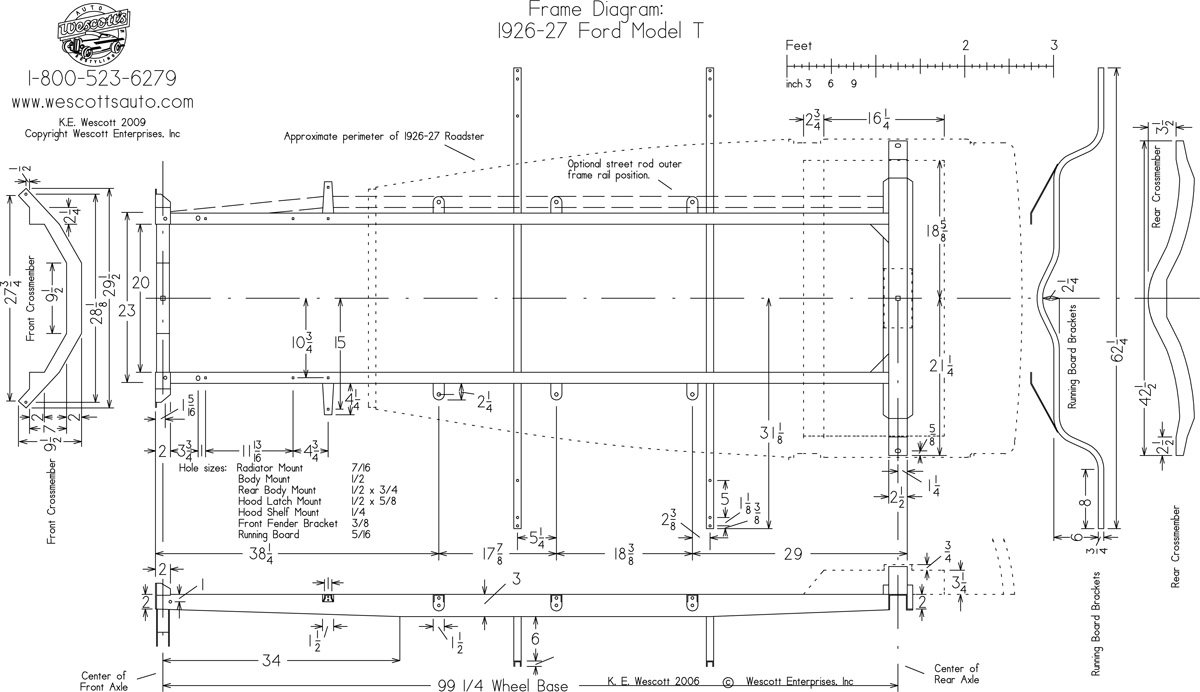

Just to make sure all are on the same page the link has part numbers & pictures https://www.cimorelli.com/mtdl/1926/1926bplmay.pdfBarnesvilleT wrote: ↑Sun Nov 03, 2024 8:28 amDoes anyone know if the sub frame from a 1926 T Coupe will work
for a 26 Roadster?
Bill H.
--
Chassis
- Attachments
-
The past is a great place and I don't want to erase it or to regret it, but I don't want to be its prisoner either.
Mick Jagger
Mick Jagger
-
BarnesvilleT
Topic author - Posts: 98
- Joined: Mon Nov 14, 2022 8:26 am
- First Name: William
- Last Name: Hallada
- * REQUIRED* Type and Year of Model Ts owned: 1926 Model T Coupe
- Location: Barnesville, GA
Re: Sub Frame Question
Hey HumbleJ,
If the 1926 sub frame is already stripped do you think it could be adapted for
a roadster/PU application. It is in really good shape. I can drive about an hour and a half to get actual measurements
from the roadster sub frame I saw.
Bill
If the 1926 sub frame is already stripped do you think it could be adapted for
a roadster/PU application. It is in really good shape. I can drive about an hour and a half to get actual measurements
from the roadster sub frame I saw.
Bill
-
Humblej
- Posts: 1957
- Joined: Sun Jan 06, 2019 12:23 pm
- First Name: Jeff
- Last Name: Humble
- * REQUIRED* Type and Year of Model Ts owned: 1926 Canadian coupe, 1924 TT C-cab, 1924 runabout
- Location: Charlevoix, Mi
- Board Member Since: 2006
Re: Sub Frame Question
I do not know if it can be adapted or not, or where the differences are, but it is certenly more effort than I would want to take on.
-
BarnesvilleT
Topic author - Posts: 98
- Joined: Mon Nov 14, 2022 8:26 am
- First Name: William
- Last Name: Hallada
- * REQUIRED* Type and Year of Model Ts owned: 1926 Model T Coupe
- Location: Barnesville, GA
Re: Sub Frame Question
I think you are right. Time to look for the right part.
It might take awhile but we will find one.
Thanks for all the help and info
It might take awhile but we will find one.
Thanks for all the help and info
