Modern Warford Support

Post by got10carz » Tue Mar 18, 2025 4:16 pm

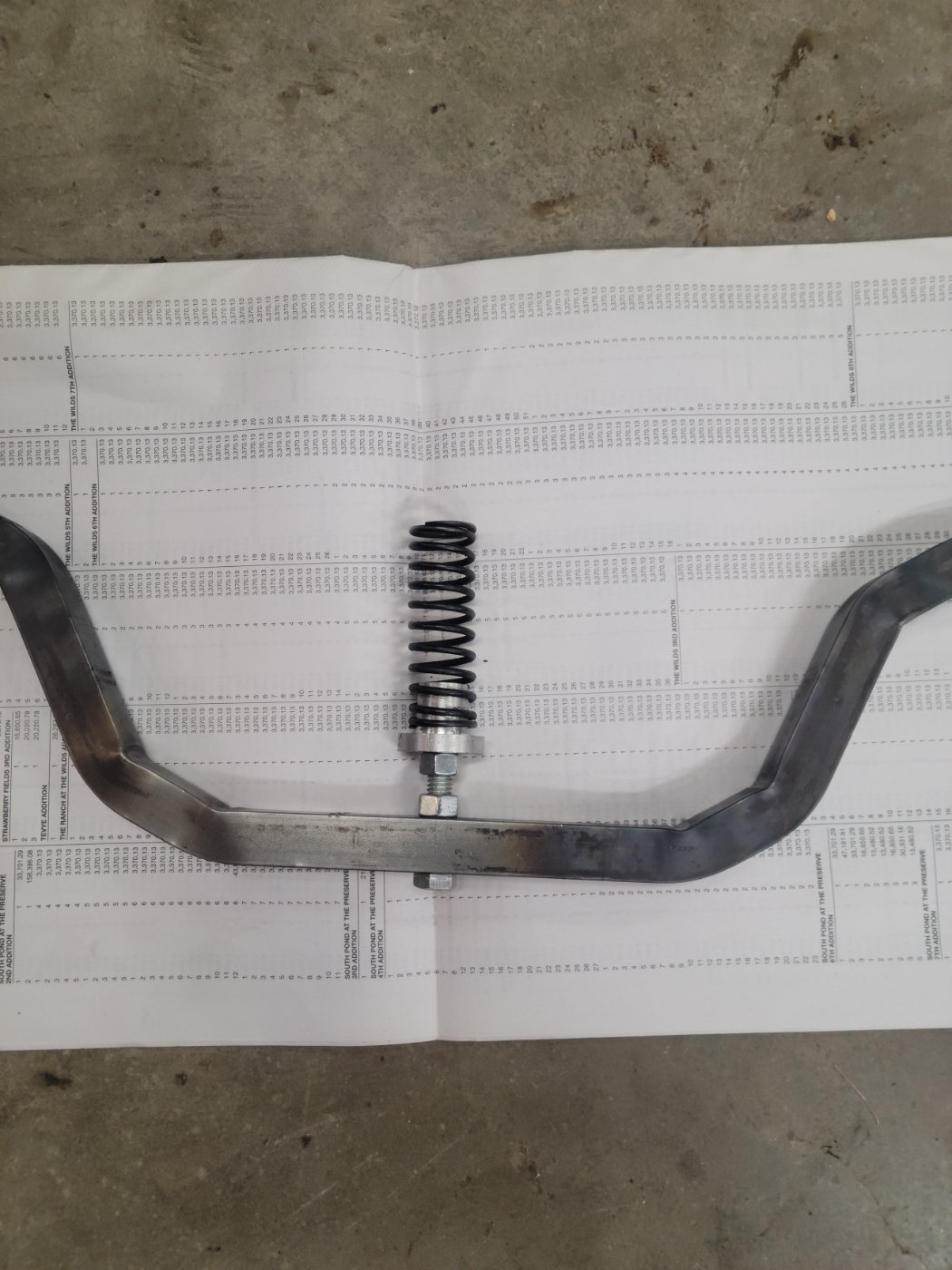

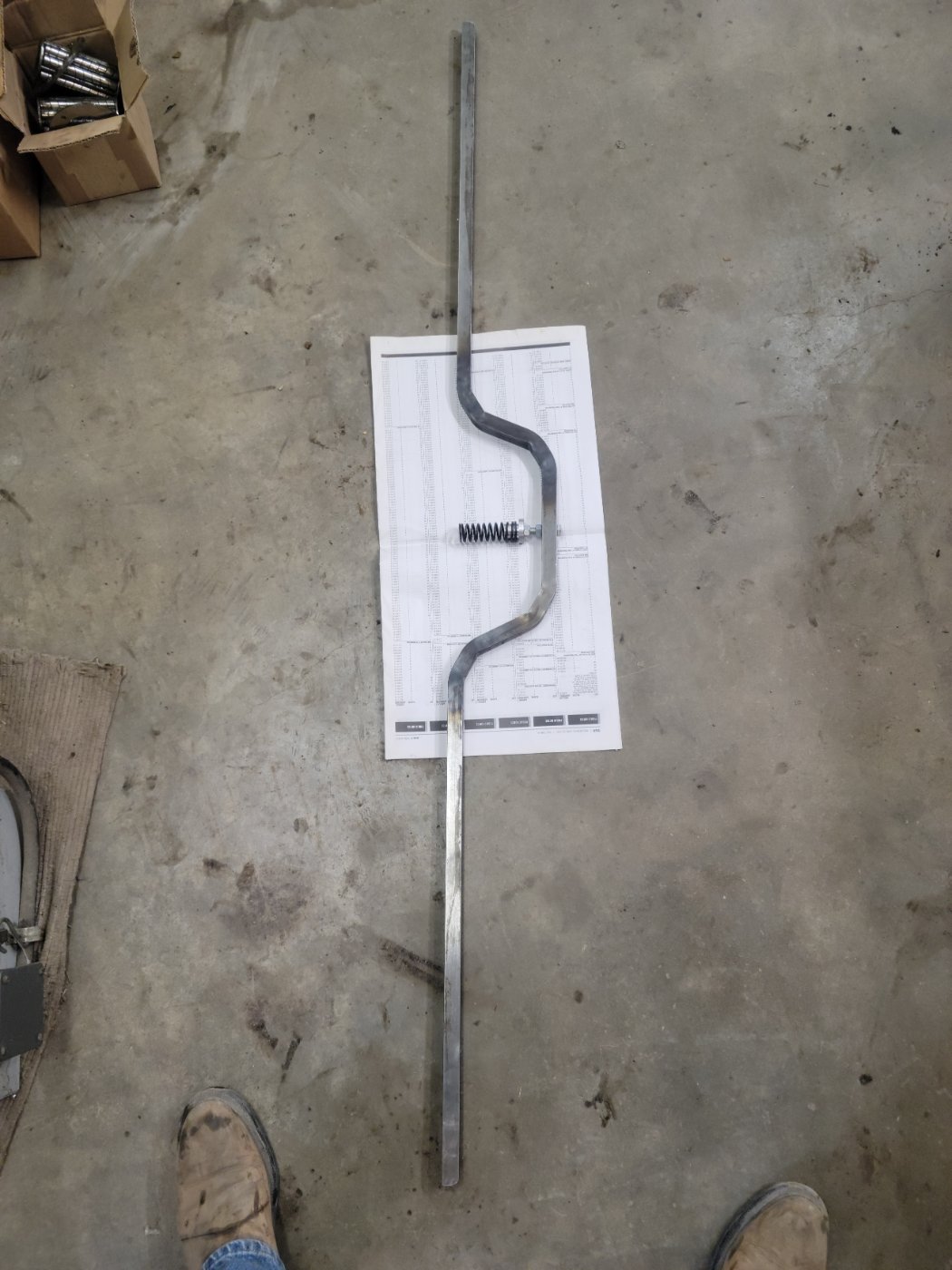

This what I came up with. I'm sure some won't like it. Part of installing the trans requires cutting out 7" of the running board bracket. I had figured on reinforcing it anyway but noticed the bracket is directly in line with the drain plug. I fabricated this from 3/4"x 3/4" cold rolled. It ties together the running board brackets and supports the trans. The trans weighs 32 pounds. Using a T valve spring the rate is 26 pounds at 2". This car does not have a 26-27 motor so felt it needed something. The bracket is 1 1/2" lower than the engine drain plug.
Attachments

User avatar

Craig Leach
Posts: 1906
Joined: Tue Jan 08, 2019 12:22 am
First Name: craig
Last Name: leach
* REQUIRED* Type and Year of Model Ts owned: 1919 Firetruck/1922 Speedster
Location: Laveen Az

Re: Modern Warford Support

Post by Craig Leach » Tue Mar 18, 2025 11:14 pm

Hi Steve,
Correct some may not like it but & like the way your thinking. I'm installing a Warford in my next speedster so I will have a lot more room than
you have. My thought on this is you only need to support the weight of the Aux. trans so I'm not sure how much good pushing it up with a spring
will be but mounting it that way will make changing the oil in the Warford a little complicated. I plan on using a belly support or Lizzies girdle
as they are called so that it supports the weight but doesn't restrict the frame movement. Just a thought.
Craig.


AndyClary
Posts: 835
Joined: Sun Jan 06, 2019 11:15 am
First Name: Andrew
Last Name: Clary
* REQUIRED* Type and Year of Model Ts owned: 1914 Runabout 1926 Coupe. Mercury Speedster #1249
Location: Usa

Re: Modern Warford Support

Post by AndyClary » Wed Mar 19, 2025 9:53 am

I have a new Warford in my Mercury. I made a cross member/battery box with a bracket to support the warford. It is a simple triangular plate that bolts to two of the warford rear bolts and a single bolt through the cross member so it supports the weight but can twist. I also run a pan sling due to the extra weight of the Rajo and Warford.

Andy


TXGOAT2
Posts: 7391
Joined: Sun Feb 14, 2021 10:08 pm
First Name: Pat
Last Name: McNallen
* REQUIRED* Type and Year of Model Ts owned: 1926-7 roadster
Location: Graham, Texas
Board Member Since: 2021

Re: Modern Warford Support

Post by TXGOAT2 » Wed Mar 19, 2025 10:38 am

Remember that the Warford is connected to the driveshaft housing, which communicates substantial driving and braking forces and torque reactions to the engine assembly and to the motor mounts. It also puts side loads on the engine assembly when one of the rear wheels encounters road irregularities. Those forces will often far greater than the weight of the Warford, and they will be applied at a point farther from the rear engine mounts than they would be with the stock arrangement. I'd consider adding a crossmember and some kind of flexible mount to support and locate the Warford and take some of the strains off the stock rear motor mounts.
Last edited by TXGOAT2 on Wed Mar 19, 2025 1:41 pm, edited 1 time in total.


Topic author
got10carz
Posts: 552
Joined: Sun Jan 06, 2019 6:37 pm
First Name: Steve
Last Name: Meixner
* REQUIRED* Type and Year of Model Ts owned: 1911,13,14,19,23,25,26,27
Location: Moorhead MN

Re: Modern Warford Support

Post by got10carz » Wed Mar 19, 2025 11:17 am

I also have a Warford in my speedster that I mounted much the same as Andy. I added radiator springs to the rear oil pan bolts, giving a place to flex. Also only used only the vertical bolts on the pan, left the horizontal bolts out.


Allan
Posts: 6609
Joined: Sun Jan 06, 2019 7:21 pm
First Name: Allan
Last Name: Bennett
* REQUIRED* Type and Year of Model Ts owned: 1912 van, 1917 shooting brake, 1929 roadster buckboard, 1924 tourer, 1925 barn find buckboard, 1925 D &F wide body roadster, 1927LHD Tudor sedan.
Location: Gawler, Australia

Re: Modern Warford Support

Post by Allan » Fri Mar 21, 2025 8:59 am

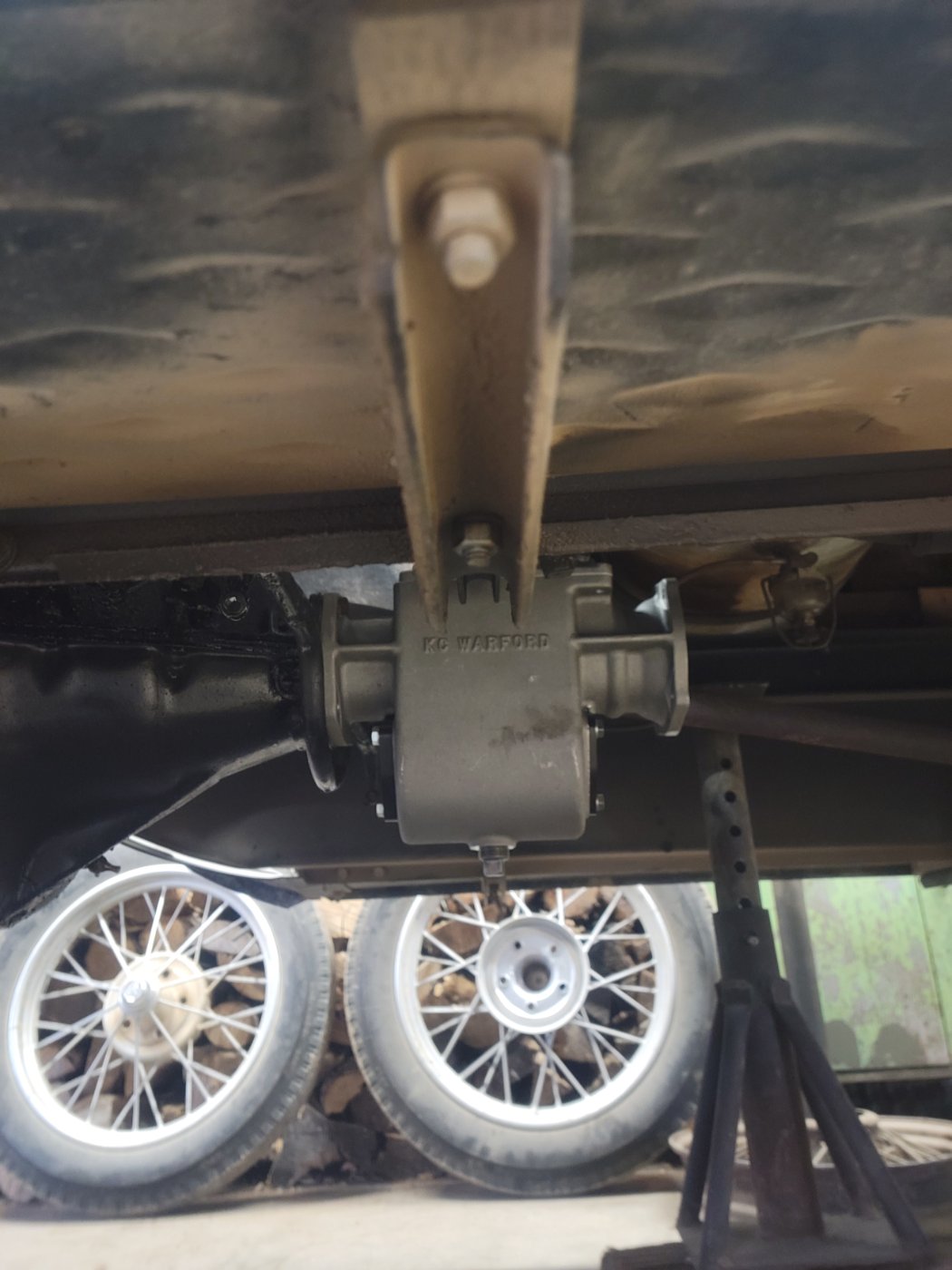

I have a KC Warford in my 1917 shooting brake. I made my support to align with the back of the transmission so the weight of the transmission and the torque tube were better supported. That got around the running board interference somewhat. However, I did have to cut the tie rod between the running board brackets and terminate the inside ends on the trans mounting bolts.

My support is a surplus front frame cross member, bolted to the under side of the frame rail, so it fits under the transmission. I fashioned a Y piece to fit the lower two ball joint bolts. Between the cross member and the Y piece is a coil spring coil spring which is adjustable to increase the load on the spring if required.

I lengthened the frame to accommodate the Warford, so there is still a full length driveshaft behind the gearbox. By shifting the support to the rear of the trans I thought would be of greater benefit.It works so far.

Alan from down under.
