Wheeler muffler
Does anyone have any information about one of these?
: ^ )
: ^ )
-
A Whiteman
- Posts: 1125
- Joined: Sun Jan 06, 2019 3:36 pm
- First Name: Adrian
- Last Name: Whiteman
- * REQUIRED* Type and Year of Model Ts owned: 1926 TT, 1923 Colonial Roadster, 1924 'Bullnose' Morris, 1925 'Bullnose' Morris, 1936 JD AR
- Location: South Island, New Zealand
Re: Wheeler muffler
I particularly like the description: "Motor Testing Valve"
-
TMiller6
- Posts: 278
- Joined: Sun Jan 06, 2019 10:11 pm
- First Name: Thomas
- Last Name: Miller
- * REQUIRED* Type and Year of Model Ts owned: 16, 24, 26 Touring - 26 Roadster and Fordor
- Location: SE MI
- Board Member Since: 2006
Re: Wheeler muffler
134 East Jefferson is now the entrance of the Detroit-Windsor Tunnel.
Tom Miller
One who cannot find beauty in an engine cannot find beauty in the universe.
One who cannot find beauty in an engine cannot find beauty in the universe.
-
KBurket
- Posts: 163
- Joined: Mon Dec 14, 2020 1:17 pm
- First Name: K
- Last Name: Burket
- * REQUIRED* Type and Year of Model Ts owned: 1926 RPU
- Location: Seattle,Wa
- MTFCA Life Member: YES
- Board Member Since: 2017
Re: Wheeler muffler
Older post discussing wheeler and other home made versions.
http://www.mtfca.com/discus/messages/82 ... 1530408436
http://www.mtfca.com/discus/messages/82 ... 1530408436
-
KWTownsend
Topic author - Posts: 1382
- Joined: Mon Jan 07, 2019 6:51 pm
- First Name: Keith
- Last Name: Townsend
- * REQUIRED* Type and Year of Model Ts owned: late 1911 touring, 1915 runabout, 1919 touring, brass speedster
- Location: Gresham, Orygun
- MTFCA Life Member: YES
- Board Member Since: 1999
-
RajoRacer
- Posts: 5171
- Joined: Sun Jan 06, 2019 12:18 pm
- First Name: Steve
- Last Name: Tomaso
- * REQUIRED* Type and Year of Model Ts owned: 1914 Touring, 1919 Centerdoor, 1924 TT C-Cab Express, 1925 Racer
- Location: Longbranch, WA
- Board Member Since: 2001
Re: Wheeler muffler
Appears to be similar in size to a standard T muffler outlet.
-
KWTownsend
Topic author - Posts: 1382
- Joined: Mon Jan 07, 2019 6:51 pm
- First Name: Keith
- Last Name: Townsend
- * REQUIRED* Type and Year of Model Ts owned: late 1911 touring, 1915 runabout, 1919 touring, brass speedster
- Location: Gresham, Orygun
- MTFCA Life Member: YES
- Board Member Since: 1999
Re: Wheeler muffler
I believe this was fabricated with Model T muffler ends. I'm thinking that outlet port s a little small...
-
KWTownsend
Topic author - Posts: 1382
- Joined: Mon Jan 07, 2019 6:51 pm
- First Name: Keith
- Last Name: Townsend
- * REQUIRED* Type and Year of Model Ts owned: late 1911 touring, 1915 runabout, 1919 touring, brass speedster
- Location: Gresham, Orygun
- MTFCA Life Member: YES
- Board Member Since: 1999
Re: Wheeler muffler

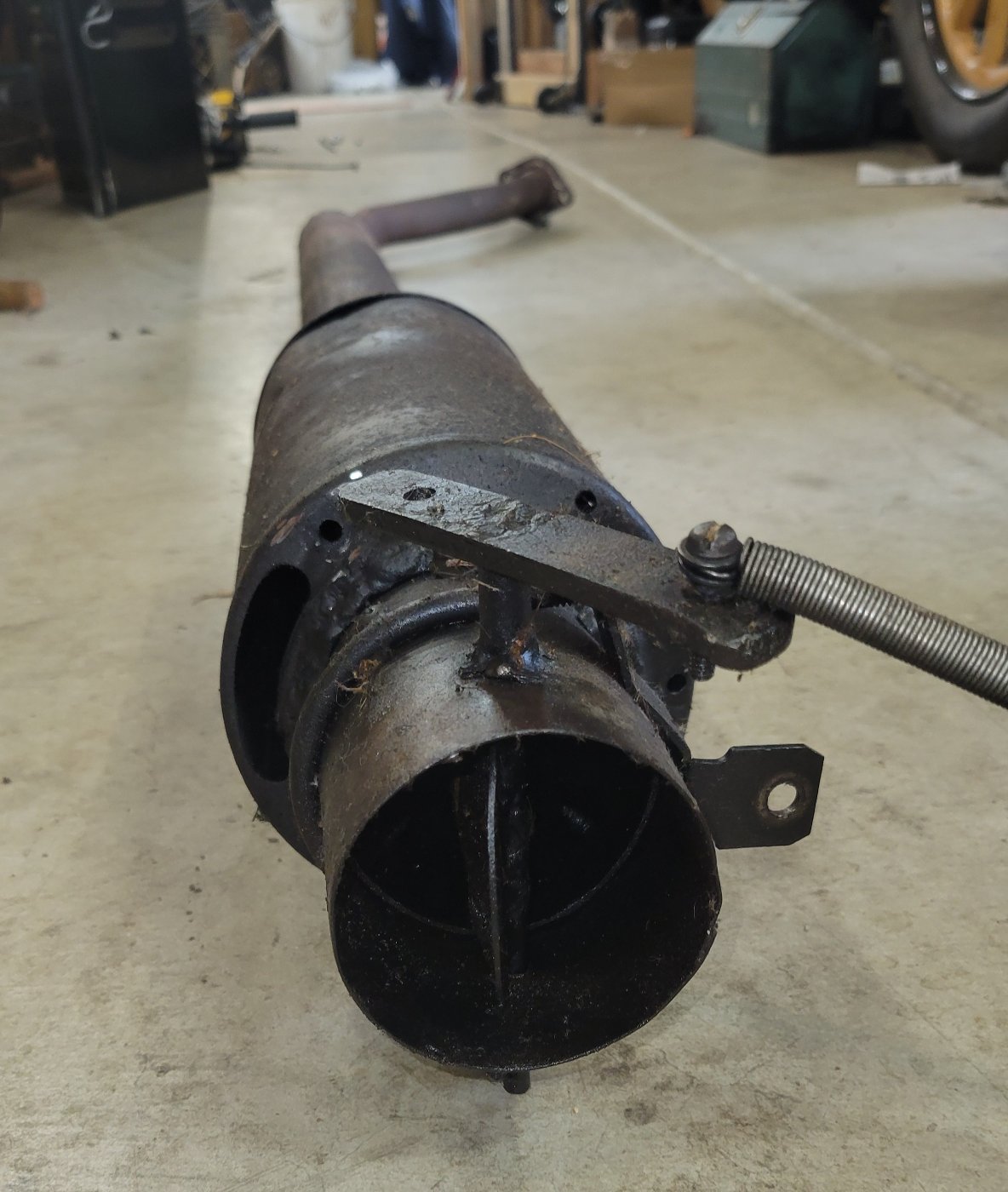

I'm curious about the construction.
The pipe from the manifold is about 1-1/2" in diameter.
It is welded onto a pipe that is about 3" in diameter.
Does the 1-1/2" pipe go farther into the 3" pipe?
The muffler part looks to be made from late stamped muffler ends.
I suppose the center shell is not used, but the middle one is used?

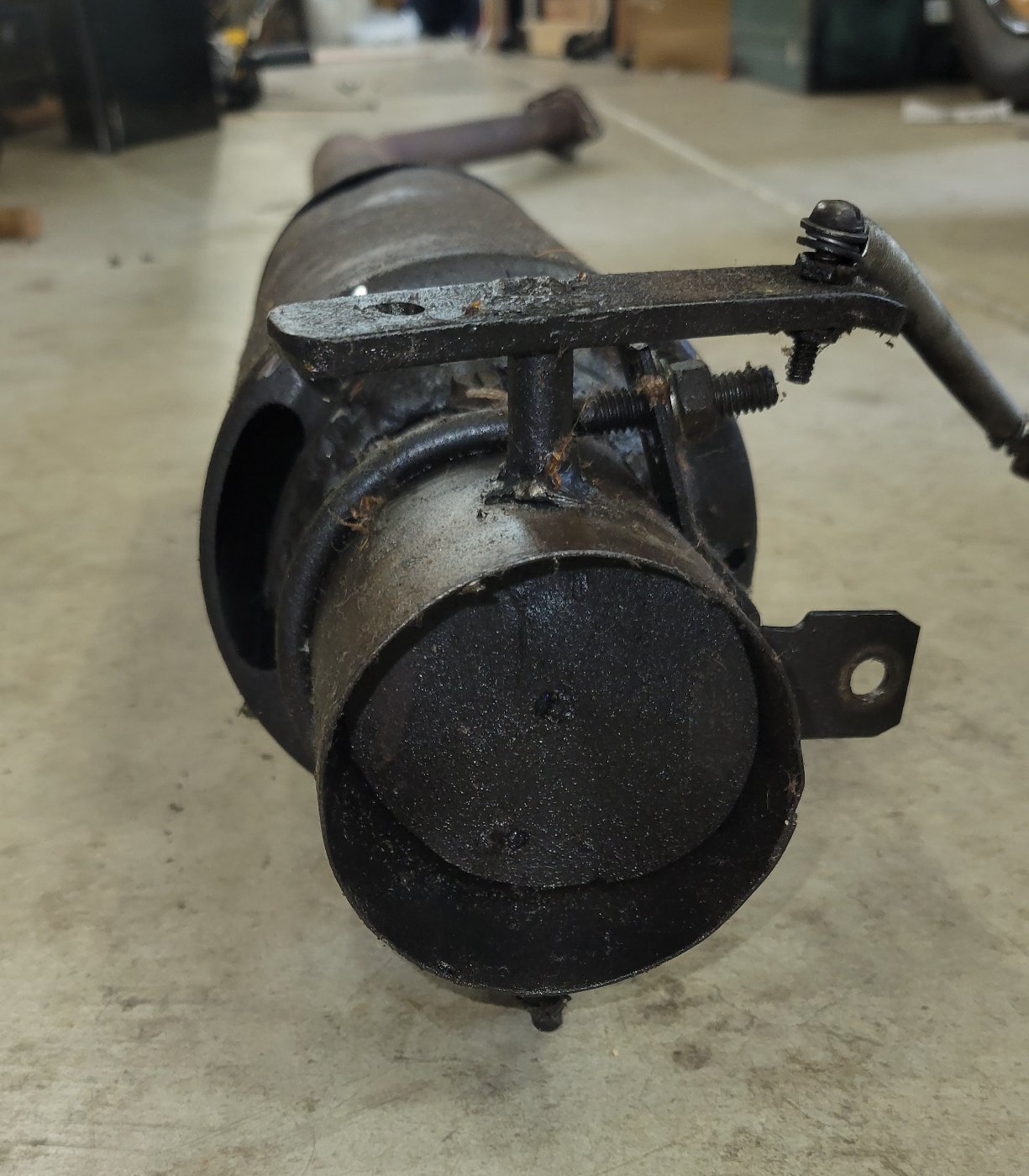

The 3" pipe on the end has a butterfly valve to open for straight pipe, or divert exhaust through the other shell.
I would like to see a cutaway diagram.
Thanks,
Keith
The pipe from the manifold is about 1-1/2" in diameter.
It is welded onto a pipe that is about 3" in diameter.
Does the 1-1/2" pipe go farther into the 3" pipe?
The muffler part looks to be made from late stamped muffler ends.
I suppose the center shell is not used, but the middle one is used?
The 3" pipe on the end has a butterfly valve to open for straight pipe, or divert exhaust through the other shell.
I would like to see a cutaway diagram.
Thanks,
Keith
