Can anyone help to ID this headlight bar. I have attached a photo of my one piece bar to show the difference.

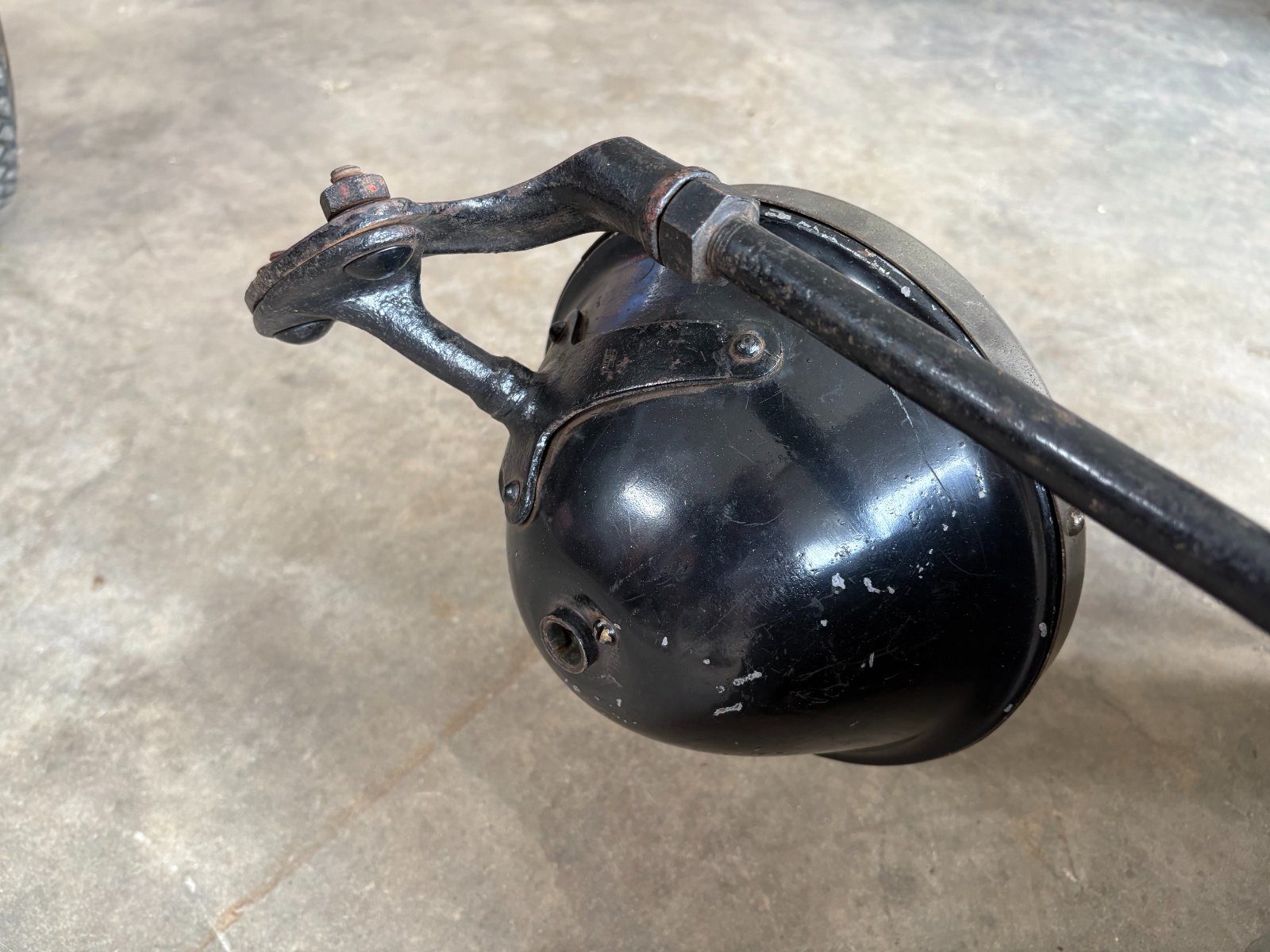

The photos of the one with the headlight attached has a locking nut and separate end bracket. I thought it was a 26.
I bought it and never paid attention to the differences until I got it back to my shop. Any help would be appreciated.
Thanks,
Bill
Headlight bar Identification
Forum rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
-
BarnesvilleT
Topic author - Posts: 98
- Joined: Mon Nov 14, 2022 8:26 am
- First Name: William
- Last Name: Hallada
- * REQUIRED* Type and Year of Model Ts owned: 1926 Model T Coupe
- Location: Barnesville, GA
Headlight bar Identification
- Attachments
-
-
-
TRDxB2
- Posts: 6260
- Joined: Tue Jan 08, 2019 4:56 pm
- First Name: Frank
- Last Name: Brandi
- * REQUIRED* Type and Year of Model Ts owned: Speedsters (1919 w 1926 upgrades), 1926 (Ricardo Head)
- Location: Moline IL
- Board Member Since: 2018
Re: Headlight bar Identification
Take a look at this link https://www.mtfca.com/discus/messages/4 ... 1404648267
- Attachments
-
- 459127.jpg (68.69 KiB) Viewed 926 times
-
The past is a great place and I don't want to erase it or to regret it, but I don't want to be its prisoner either.
Mick Jagger
Mick Jagger
-
John Codman
- Posts: 1481
- Joined: Mon Jan 07, 2019 10:27 am
- First Name: John
- Last Name: Codman
- * REQUIRED* Type and Year of Model Ts owned: 1927 Youring
- Location: Naples, FL 34120
Re: Headlight bar Identification
It is not the same as the bar on my '27 Touring.
-
Mark Gregush
- Posts: 5370
- Joined: Sat Jan 05, 2019 1:57 pm
- First Name: Mark
- Last Name: Gregush
- * REQUIRED* Type and Year of Model Ts owned: 1925 cutdown PU, 1948 F2 Ford flat head 6 pickup 3 speed
- Location: Portland Or
- Board Member Since: 1999
Re: Headlight bar Identification
The top one was only sold as an aftermarket item, never supplied by Ford as factory item. There were several different versions of the bar sold to support the fenders before Ford started suppling them later in 1926.
I know the voices aren't real but damn they have some good ideas!
1925 Cut down pickup
1948 Ford F2 pickup
1925 Cut down pickup
1948 Ford F2 pickup
-
TXGOAT2
- Posts: 7391
- Joined: Sun Feb 14, 2021 10:08 pm
- First Name: Pat
- Last Name: McNallen
- * REQUIRED* Type and Year of Model Ts owned: 1926-7 roadster
- Location: Graham, Texas
- Board Member Since: 2021
Re: Headlight bar Identification
The pressed steel bar is 1927 Ford. The other one with the headlight on on it is probably aftermarket. If you don't want to use it, I'd like to buy it.
The lack of a headlight bar on the 1926 cars was not one of Ford's better ideas. I put a '27 pressed steel bar on a '26 car by placing 1/2" shaft spacers under the headlight mounting feet and using longer bolts. It doesn't look quite right, but it reduces flexing and vibration in the front fenders quite a bit.
The lack of a headlight bar on the 1926 cars was not one of Ford's better ideas. I put a '27 pressed steel bar on a '26 car by placing 1/2" shaft spacers under the headlight mounting feet and using longer bolts. It doesn't look quite right, but it reduces flexing and vibration in the front fenders quite a bit.
-
BarnesvilleT
Topic author - Posts: 98
- Joined: Mon Nov 14, 2022 8:26 am
- First Name: William
- Last Name: Hallada
- * REQUIRED* Type and Year of Model Ts owned: 1926 Model T Coupe
- Location: Barnesville, GA
Re: Headlight bar Identification
Hey Pat,
I picked up the bar and lights at Luray. Did not pay attention to the bar when I bought it. You can send me a PM if you would like to buy it.
Bill
I picked up the bar and lights at Luray. Did not pay attention to the bar when I bought it. You can send me a PM if you would like to buy it.
Bill
-
TXGOAT2
- Posts: 7391
- Joined: Sun Feb 14, 2021 10:08 pm
- First Name: Pat
- Last Name: McNallen
- * REQUIRED* Type and Year of Model Ts owned: 1926-7 roadster
- Location: Graham, Texas
- Board Member Since: 2021
Re: Headlight bar Identification
PM sent........
