Help identifying parts

Post by RoadMoyer » Mon Jun 16, 2025 1:19 pm

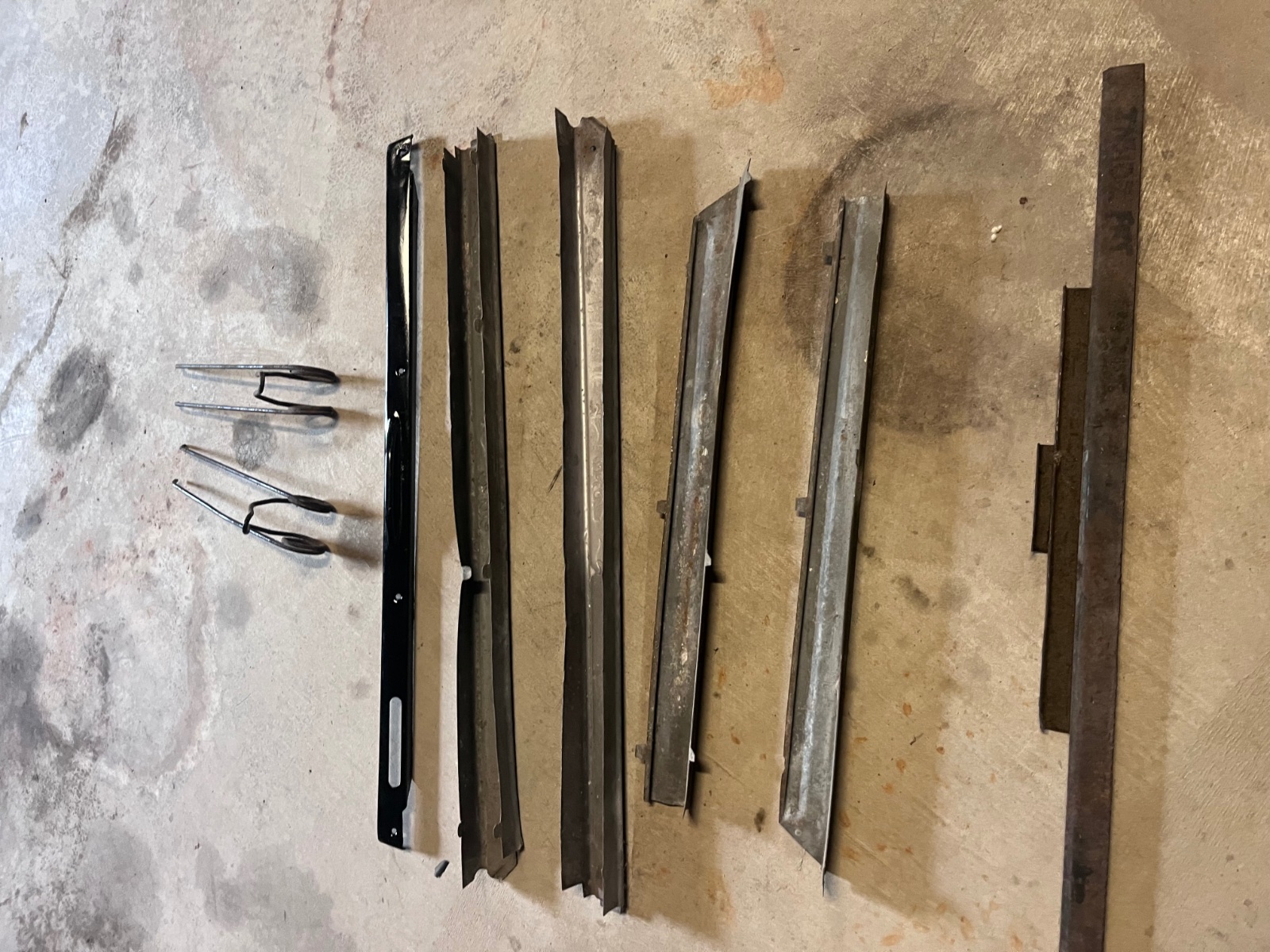

I’m working on a 26 Tudor with my dad. He bought it 35 years ago partially restored with lots of parts and pieces in several boxes and it’s sat like that ever since. I’ve figured out most of them, but can’t figure out what this group is yet. We are just getting started on the body so maybe it will become evident as we go, but thought I’d reach out for some help. Thanks!
Attachments

User avatar

George House
Posts: 2814
Joined: Sun Jan 06, 2019 5:25 pm
First Name: George
Last Name: House
* REQUIRED* Type and Year of Model Ts owned: ‘10 Maxwell AA, ‘11Hupp Model 20, Two 1914 Ford runabouts, 19 centerdoor, 25 C Cab,26 roadster
Location: Northern Caldwell County TX
MTFCA Life Member: YES
Board Member Since: 1999

Re: Help identifying parts

Post by George House » Mon Jun 16, 2025 2:44 pm

Speaking from the top and middle picture; the item on the far left is a glass channel for one of the doors. It is raised and lowered by a round part of the window regulator moving within that short channel on the bottom. The spring steel thingies on the right are aftermarket accessories meant to tighten up worn out tie rod bushings on a T whose owner won’t repair it correctly. Lastly, the item to the left of these accessories is door trim. See the slit at the upper end ? That’s where the door latch lever protrudes through when mounted.
A Fine is a Tax for Doing Something Wrong….A Tax is a Fine for Doing Something RIGHT 🤔


jab35
Posts: 1001
Joined: Sun Jan 06, 2019 12:28 pm
First Name: James
Last Name: Bartsch
* REQUIRED* Type and Year of Model Ts owned: '26 Coupe
Location: Dryden, NY 13053
MTFCA Life Member: YES

Re: Help identifying parts

Post by jab35 » Mon Jun 16, 2025 3:05 pm

Middle 4 look like door sill plates

User avatar

CamMan
Posts: 75
Joined: Sat Feb 29, 2020 1:26 pm
First Name: Larry
Last Name: Young
* REQUIRED* Type and Year of Model Ts owned: '26 Tudor, '22 speedster, ABC/Rajo
Location: Tulsa

Re: Help identifying parts

Post by CamMan » Tue Jun 17, 2025 5:02 pm

I did a frame off restoration of my Tudor. There are only two sill plates (one for each door) and they are zinc with a Ford script. Different from those on a Model A, but look similar. I don't know what those 4 pieces are in the middle, maybe not for a Tudor?


Topic author
RoadMoyer
Posts: 14
Joined: Sun Apr 30, 2023 5:42 pm
First Name: Steve
Last Name: Moyer
* REQUIRED* Type and Year of Model Ts owned: 1926 Tudor
Location: Carrollton, TX

Re: Help identifying parts

Post by RoadMoyer » Sun Jun 22, 2025 9:58 am

Thanks! Very helpful!


Bryant
Posts: 1152
Joined: Sat Sep 11, 2021 3:11 pm
First Name: Bryant
Last Name: Shafer
* REQUIRED* Type and Year of Model Ts owned: 1926 Tudor transforming to a closed cab pickup
Location: Myersville Maryland
Board Member Since: 2021

Re: Help identifying parts

Post by Bryant » Sun Jun 22, 2025 6:10 pm

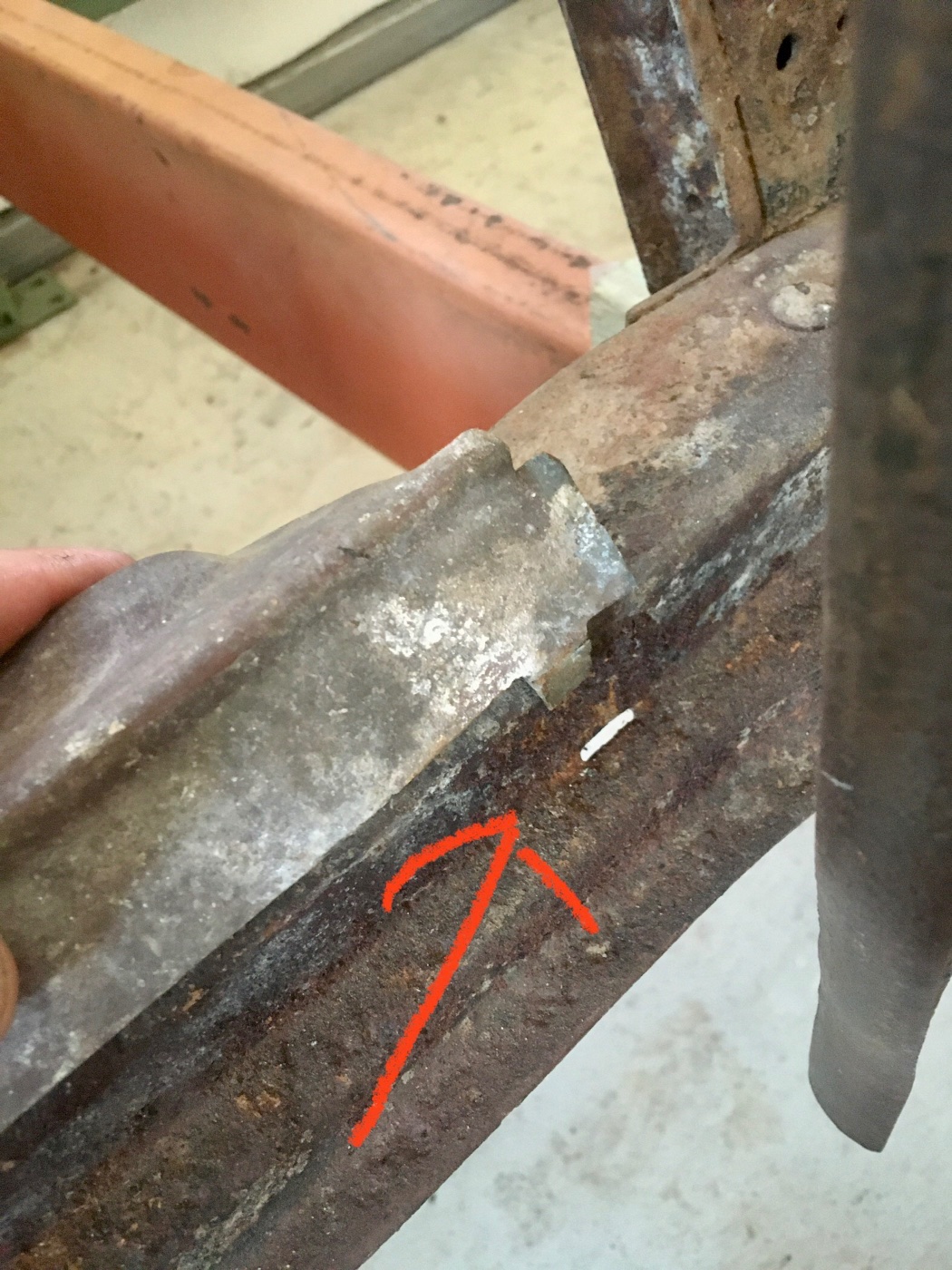

Mine had the 4 middle trim pieces also.
Longer ones are for the doors.
Shorter ones I believe go at the bottom of the rear seat quarter interior panel at the toe section.
There are little slits cut out in the floor framing for them to fit into. See pictures

Bryant
