Specification for spindle diameter?
More precisely, the diameter of the machined surface where the inner wheel bearing sits. I bought two used spindles from one of the suppliers, since mine were abused (strawberried) with a center punch. The left one measures 1.190" which as far as I know is how it should be. The right one measures 1.188". Is it still good to go? Should I look for a better one?
-
John E. Guitar
- Posts: 518
- Joined: Sun Jan 06, 2019 2:52 pm
- First Name: John
- Last Name: Guitar
- * REQUIRED* Type and Year of Model Ts owned: 1926 Touring, 1924 Tourer
- Location: Ulladulla
- Board Member Since: 2012
Re: Specification for spindle diameter?
These are the values I came up with when I looked into it a few years back. I don't know if these match the factory print.
In hindsight it would have been easier to contact the Benson Research Centre and asked for the drawing.
In hindsight it would have been easier to contact the Benson Research Centre and asked for the drawing.
-
TRDxB2
- Posts: 6259
- Joined: Tue Jan 08, 2019 4:56 pm
- First Name: Frank
- Last Name: Brandi
- * REQUIRED* Type and Year of Model Ts owned: Speedsters (1919 w 1926 upgrades), 1926 (Ricardo Head)
- Location: Moline IL
- Board Member Since: 2018
Re: Specification for spindle diameter?

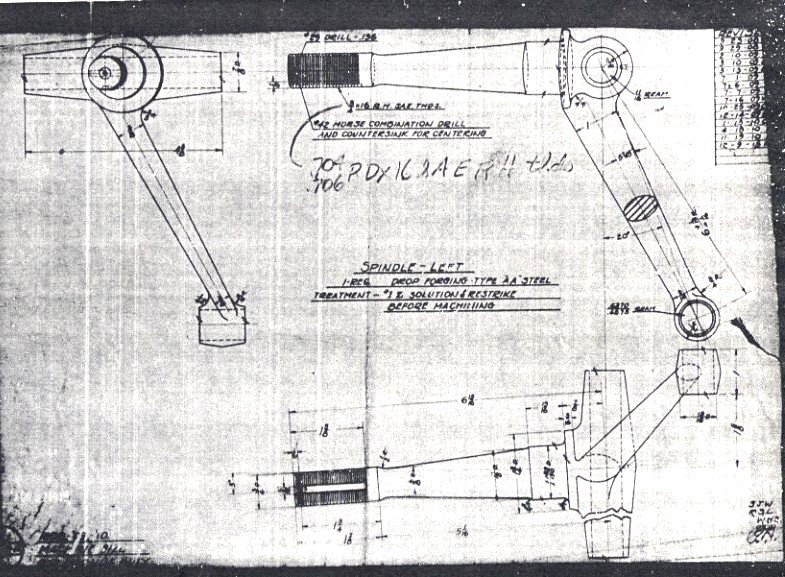

Drawing (can't see much) of 1 piece spindle. Discussion indicates 1906-1927 same diameter but a bit longer surface for roller bearings
https://mtfca.com/discus/messages/41194 ... 1391298332
https://mtfca.com/discus/messages/41194 ... 1391298332
- Attachments
-
The past is a great place and I don't want to erase it or to regret it, but I don't want to be its prisoner either.
Mick Jagger
Mick Jagger
-
frank_w
Topic author - Posts: 26
- Joined: Thu Nov 24, 2022 5:38 pm
- First Name: Frank
- Last Name: Werle
- * REQUIRED* Type and Year of Model Ts owned: 1914 Touring Car
- Location: Saarlouis, Germany
Re: Specification for spindle diameter?
Ok, so the drawing says 1.189 - 1.190 which would also conform to the 30.210 - 30.226mm measurements. I'll see if I can find someone to build up some material on the spindle and machine it back to spec. Thanks a lot for your help!
-
John E. Guitar
- Posts: 518
- Joined: Sun Jan 06, 2019 2:52 pm
- First Name: John
- Last Name: Guitar
- * REQUIRED* Type and Year of Model Ts owned: 1926 Touring, 1924 Tourer
- Location: Ulladulla
- Board Member Since: 2012
Re: Specification for spindle diameter?
That’s what I ended up doing. I had mine metal sprayed and then ground to size.
