The handle on a potato gas shut off valve is broken off and gone. Has anyone tried to attach some type of handle to one?
Also I can not remember what was suggested on how to remove the brass valve.
Gas shut off valve
Forum rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
-
Dennis_Brown
Topic author - Posts: 250
- Joined: Wed Jan 09, 2019 10:14 pm
- First Name: Dennis
- Last Name: Brown
- * REQUIRED* Type and Year of Model Ts owned: 1926 Roadster pickup
- Location: Spring Hill Fl
-
speedytinc
- Posts: 4803
- Joined: Fri Feb 12, 2021 12:24 pm
- First Name: john
- Last Name: karvaly
- * REQUIRED* Type and Year of Model Ts owned: 14/15 wide track roadster. 23 touring, 27 roadster pickup, 20ish rajo touring
- Location: orange, ca
- Board Member Since: 2020
Re: Gas shut off valve
To remove: remove the cotter pin, washer & spring.
Make a hollow punch that only contacts the base of the valve below the stud/post.
Make a hollow punch that only contacts the base of the valve below the stud/post.
-
RajoRacer
- Posts: 5220
- Joined: Sun Jan 06, 2019 12:18 pm
- First Name: Steve
- Last Name: Tomaso
- * REQUIRED* Type and Year of Model Ts owned: 1914 Touring, 1919 Centerdoor, 1924 TT C-Cab Express, 1925 Racer
- Location: Longbranch, WA
- Board Member Since: 2001
Re: Gas shut off valve
AND - it helps if someone else can hold onto the sediment bulb !
-
TRDxB2
- Posts: 6313
- Joined: Tue Jan 08, 2019 4:56 pm
- First Name: Frank
- Last Name: Brandi
- * REQUIRED* Type and Year of Model Ts owned: Speedsters (1919 w 1926 upgrades), 1926 (Ricardo Head)
- Location: Moline IL
- Board Member Since: 2018
Re: Gas shut off valve

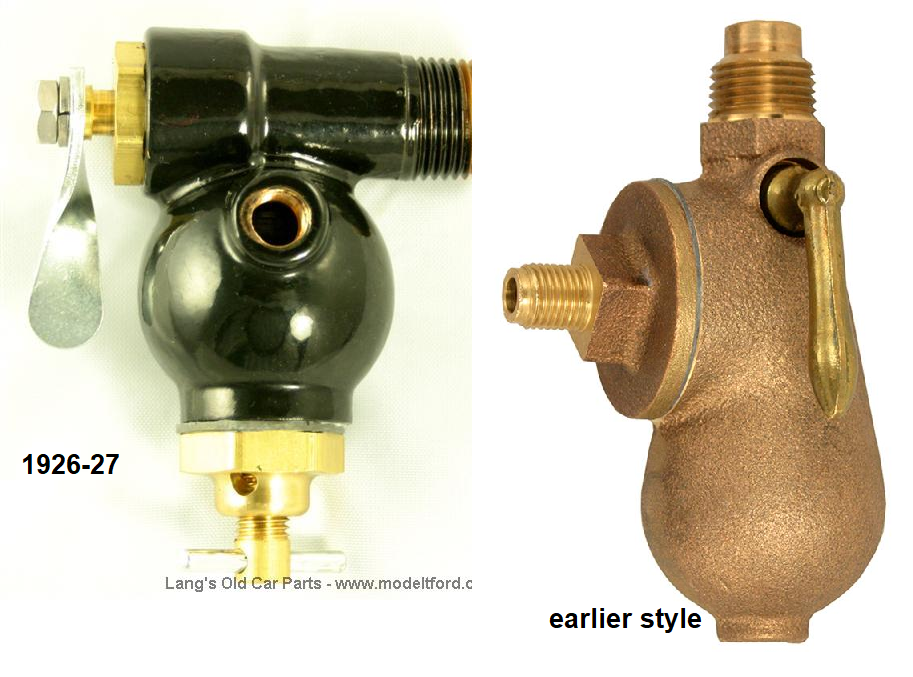

Please confirm the year shut off valve you are referencing. Your profile says you have a 1926 Roadster pickup. and that valve is different than the earlier ones that are known for handles to brake off
If its the earlier style save yourself the trouble and remove the sediment bulb. The don't sell replacement lever arms.
Regardless of which you have...
To remove the sediment bulb you need to be a bit gentle. Don't try to remove it with a long handled wrench you may damage the fitting on the tank. Put a wrench on it an tap the wrench, acts like an impact wrench to break it loose.
If its the earlier style save yourself the trouble and remove the sediment bulb. The don't sell replacement lever arms.
Regardless of which you have...
To remove the sediment bulb you need to be a bit gentle. Don't try to remove it with a long handled wrench you may damage the fitting on the tank. Put a wrench on it an tap the wrench, acts like an impact wrench to break it loose.
- Attachments
-
The past is a great place and I don't want to erase it or to regret it, but I don't want to be its prisoner either.
Mick Jagger
Mick Jagger
-
Henry K. Lee
- Posts: 5491
- Joined: Sun Jan 06, 2019 11:09 am
- First Name: Henry
- Last Name: Lee
- * REQUIRED* Type and Year of Model Ts owned: Many
- Location: South Pittsburg, TN
- MTFCA Life Member: YES
Re: Gas shut off valve
Simple..., Take a piece of round brass stock and silver solder it on. Shape to your desire!
-
Corey Walker
- Posts: 639
- Joined: Sun Jan 06, 2019 11:46 am
- First Name: Corey
- Last Name: Walker
- * REQUIRED* Type and Year of Model Ts owned: 1914 runabout, 1921 homemade truck, 1921 Speedster
- Location: Brownsboro, TX
- Board Member Since: 2007
Re: Gas shut off valve
You could probably make a handle once you get it off. It’s just a larger version of the pre-1915 Kingston petcock handle. I made the ball part and tapped it 4-40 and used threaded rod to attach it to the part that runs through the body. I made the handle and left a nib that I inserted into a hole I drilled in the ball then I soldered it all. Just have to do it on a larger scale.
- Attachments
-
- IMG_8429.jpeg (64.02 KiB) Viewed 311 times
-
- IMG_8430.jpeg (94.87 KiB) Viewed 311 times
-
- IMG_8431.jpeg (90.73 KiB) Viewed 311 times
Corey Walker, Brownsboro, Texas
-
DanTreace
- Posts: 3854
- Joined: Sun Jan 06, 2019 10:56 am
- First Name: Dan
- Last Name: Treace
- * REQUIRED* Type and Year of Model Ts owned: ‘12 open express,'23 cutoff, '27 touring
- Location: North Central FL
- Board Member Since: 2000
- Contact:
Re: Gas shut off valve
Since the handle is busted off, likely the valve is really stuck in the bulb. Plus the large brass nut has to come off anyway to clean or replace the filter screen soldered to the nut.
So best is to heat the iron bulb around the lever and nut, you can get the iron really hot to near dull red and then cool in a freezer placing on a wood board. When cooled the brass parts shrink and are easy to remove. Careful to punch out the lever part using a hollow punch as noted, or the end that holds the coil spring and washer with cotter will be wrecked.
You may be able to find a donor sediment bulb to obtain another valve with intact handle.
Messed up valve end
So best is to heat the iron bulb around the lever and nut, you can get the iron really hot to near dull red and then cool in a freezer placing on a wood board. When cooled the brass parts shrink and are easy to remove. Careful to punch out the lever part using a hollow punch as noted, or the end that holds the coil spring and washer with cotter will be wrecked.
You may be able to find a donor sediment bulb to obtain another valve with intact handle.
- heat with torch then cool.jpg (59.2 KiB) Viewed 261 times
- hollow punch.jpg (18.51 KiB) Viewed 261 times
- 615311.jpg (50.38 KiB) Viewed 261 times
The best way is always the simplest. The attics of the world are cluttered up with complicated failures. Henry Ford
Don’t find fault, find a remedy; anybody can complain. Henry Ford
Don’t find fault, find a remedy; anybody can complain. Henry Ford
-
RajoRacer
- Posts: 5220
- Joined: Sun Jan 06, 2019 12:18 pm
- First Name: Steve
- Last Name: Tomaso
- * REQUIRED* Type and Year of Model Ts owned: 1914 Touring, 1919 Centerdoor, 1924 TT C-Cab Express, 1925 Racer
- Location: Longbranch, WA
- Board Member Since: 2001
Re: Gas shut off valve
FYI - not all valve/handle combinations are compatible with all sediment bulbs - I have found several different lengths of tapers.
