Drive Train Assembly Order

Post by mortier » Mon Aug 25, 2025 10:54 am

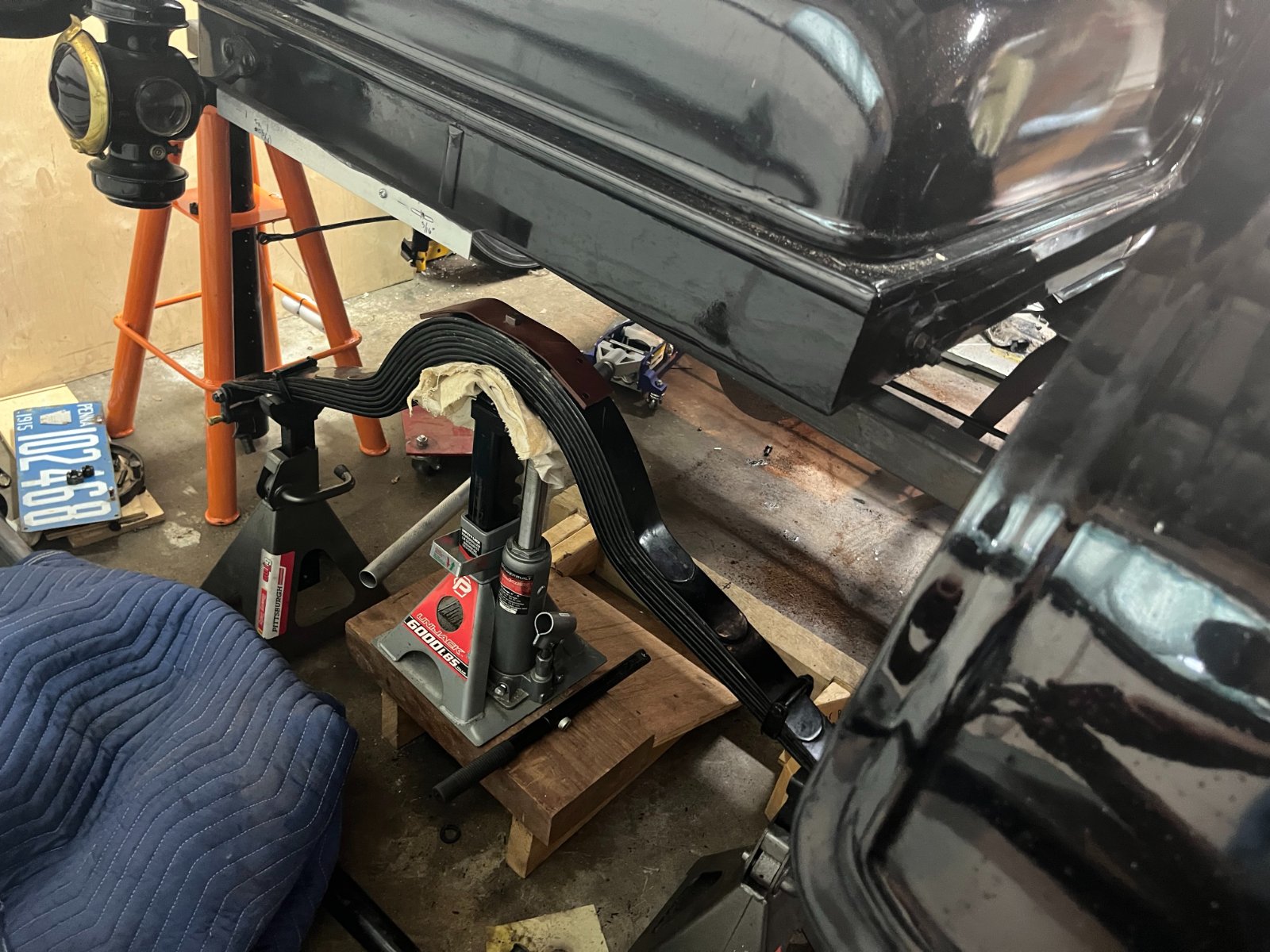

I have the engine, rear axle, and rear spring out of my T and ready for installation. Any idea for the best order of assembly? Photo shows rear spring going in, but I'm wondering if I should install the axle first.
Top

Dan Hatch
Posts: 5118
Joined: Tue Jan 08, 2019 7:31 pm
First Name: Dan
Last Name: Hatch
Location: Alabama

Re: Drive Train Assembly Order

Post by Dan Hatch » Mon Aug 25, 2025 11:10 am

Think the Service Manual has that information.
Top
User avatar

jsaylor
Posts: 421
Joined: Sun Jan 06, 2019 5:25 pm
First Name: John
Last Name: Saylor
* REQUIRED* Type and Year of Model Ts owned: 1921 Touring, 1927 Tudor
Location: Citrus Heights, Ca
Board Member Since: 1999

Re: Drive Train Assembly Order

Post by jsaylor » Mon Aug 25, 2025 12:46 pm

I always put the spring in first, being sure to center the square head center bolt into the frame. Then you can use the weight of the car and a small block of wood under the ends to help spread the shackles into the backing plates.
Top

AndyClary
Posts: 851
Joined: Sun Jan 06, 2019 11:15 am
First Name: Andrew
Last Name: Clary
* REQUIRED* Type and Year of Model Ts owned: 1914 Runabout 1926 Coupe. Mercury Speedster #1249
Location: Usa

Re: Drive Train Assembly Order

Post by AndyClary » Mon Aug 25, 2025 3:48 pm

I agree with John on the rear spring going on first. It doesn’t make a lot of difference if you put the engine or rear end in first. I’ve always found it easier to stick the u-joint into the motor than to stick the motor to the u-joint.

Andy
Top
User avatar

walber
Posts: 244
Joined: Sun Jan 06, 2019 12:55 pm
First Name: Walt
Last Name: Berdan
* REQUIRED* Type and Year of Model Ts owned: '18 Speedster had 25 touring and 26 coupe
Location: Bellevue, WA

Re: Drive Train Assembly Order

Post by walber » Mon Aug 25, 2025 4:42 pm

Engine, rear spring, connect rear axle to transmission, then shackle axle to spring (using car weight & 2x4 blocks to spread spring).
Top

Topic author
mortier
Posts: 95
Joined: Sun Jan 06, 2019 7:16 pm
First Name: Philip
Last Name: Jamison
* REQUIRED* Type and Year of Model Ts owned: 1915 Roadster
Location: PA

Re: Drive Train Assembly Order

Post by mortier » Mon Aug 25, 2025 6:46 pm

Thanks. Hope to get it together this week.
Top

Allan
Posts: 6758
Joined: Sun Jan 06, 2019 7:21 pm
First Name: Allan
Last Name: Bennett
* REQUIRED* Type and Year of Model Ts owned: 1912 van, 1917 shooting brake, 1929 roadster buckboard, 1924 tourer, 1925 barn find buckboard, 1925 D &F wide body roadster, 1927LHD Tudor sedan.
Location: Gawler, Australia

Re: Drive Train Assembly Order

Post by Allan » Mon Aug 25, 2025 8:55 pm

Just leave tightening the rear spring U bolts till last. That way you have some control over how the car sits on the road.

Allan from down under.
Top
