Question on installing a tool box on the running boards
I have this old Craftsman toolbox and I plan on drilling four holes in the bottom of it to bolt down onto the running boards on the same 4 bolts near the front on the driver side. Should I put something under the box so it doesn't mess up the running boards or would it be fine metal on metal? Amd any other tips for mounting this tool box to the running board? Or potentially a better spot than that, though I can't think of any better spot.
-
varmint
- Posts: 945
- Joined: Mon Jan 07, 2019 2:02 pm
- First Name: Vernon
- Last Name: Worley
- * REQUIRED* Type and Year of Model Ts owned: October 26, 1926 Coupe
- Location: New Orleans, LA
- Contact:
Re: Question on installing a tool box on the running boards
There are some old threads on this.
On one application, I used a sheet of adhesive cork. However, any material that traps moisture underneath may cause rust. It needs to keep dry.
On my present toolbox, I just left it in the trunk, under the deck lid, not bolted down. Also, the bottom of my toolbox was rusted out. So, I welded in a new stainless steel bottom.
On one application, I used a sheet of adhesive cork. However, any material that traps moisture underneath may cause rust. It needs to keep dry.
On my present toolbox, I just left it in the trunk, under the deck lid, not bolted down. Also, the bottom of my toolbox was rusted out. So, I welded in a new stainless steel bottom.
Vern (Vieux Carre)
-
big2bird
- Posts: 656
- Joined: Mon Sep 14, 2020 10:57 pm
- First Name: Jeffrey
- Last Name: Hausey
- * REQUIRED* Type and Year of Model Ts owned: Early 23 Touring
- Location: Anaheim, Ca.
- Board Member Since: 2020
Re: Question on installing a tool box on the running boards
I would install 4 spacers to leave an air gap underneath.
-
varmint
- Posts: 945
- Joined: Mon Jan 07, 2019 2:02 pm
- First Name: Vernon
- Last Name: Worley
- * REQUIRED* Type and Year of Model Ts owned: October 26, 1926 Coupe
- Location: New Orleans, LA
- Contact:
Re: Question on installing a tool box on the running boards
Here is what I had to do...
Vern (Vieux Carre)
-
LittleTimmy52
Topic author - Posts: 114
- Joined: Sat Jan 04, 2025 4:41 pm
- First Name: Lucas
- Last Name: Milatti
- * REQUIRED* Type and Year of Model Ts owned: 1917 Model T Touring
- Location: Saint cloud FL
- Board Member Since: 2025
Re: Question on installing a tool box on the running boards
I should mention I leave the car outside for lack of a garage with a top from one of those cheap 10x10 tents the cover does cover the area in question though. I think I'd need longer bolts if I use a spacer, well so be it. Should I use some rubber to make a gasket for the lid of the box then?
-
LittleTimmy52
Topic author - Posts: 114
- Joined: Sat Jan 04, 2025 4:41 pm
- First Name: Lucas
- Last Name: Milatti
- * REQUIRED* Type and Year of Model Ts owned: 1917 Model T Touring
- Location: Saint cloud FL
- Board Member Since: 2025
Re: Question on installing a tool box on the running boards
I have another question too, the tool box is much longer than the 4 bolts, should I make some sort of offset bracket or would it just be fine with the 4 holes offset in the box
-
Steve Jelf
- Posts: 7360
- Joined: Fri Jan 04, 2019 9:37 pm
- First Name: Steve
- Last Name: Jelf
- * REQUIRED* Type and Year of Model Ts owned: 1923 touring and a few projects
- Location: Parkerfield, Kansas
- Board Member Since: 2007
- Contact:
Re: Question on installing a tool box on the running boards

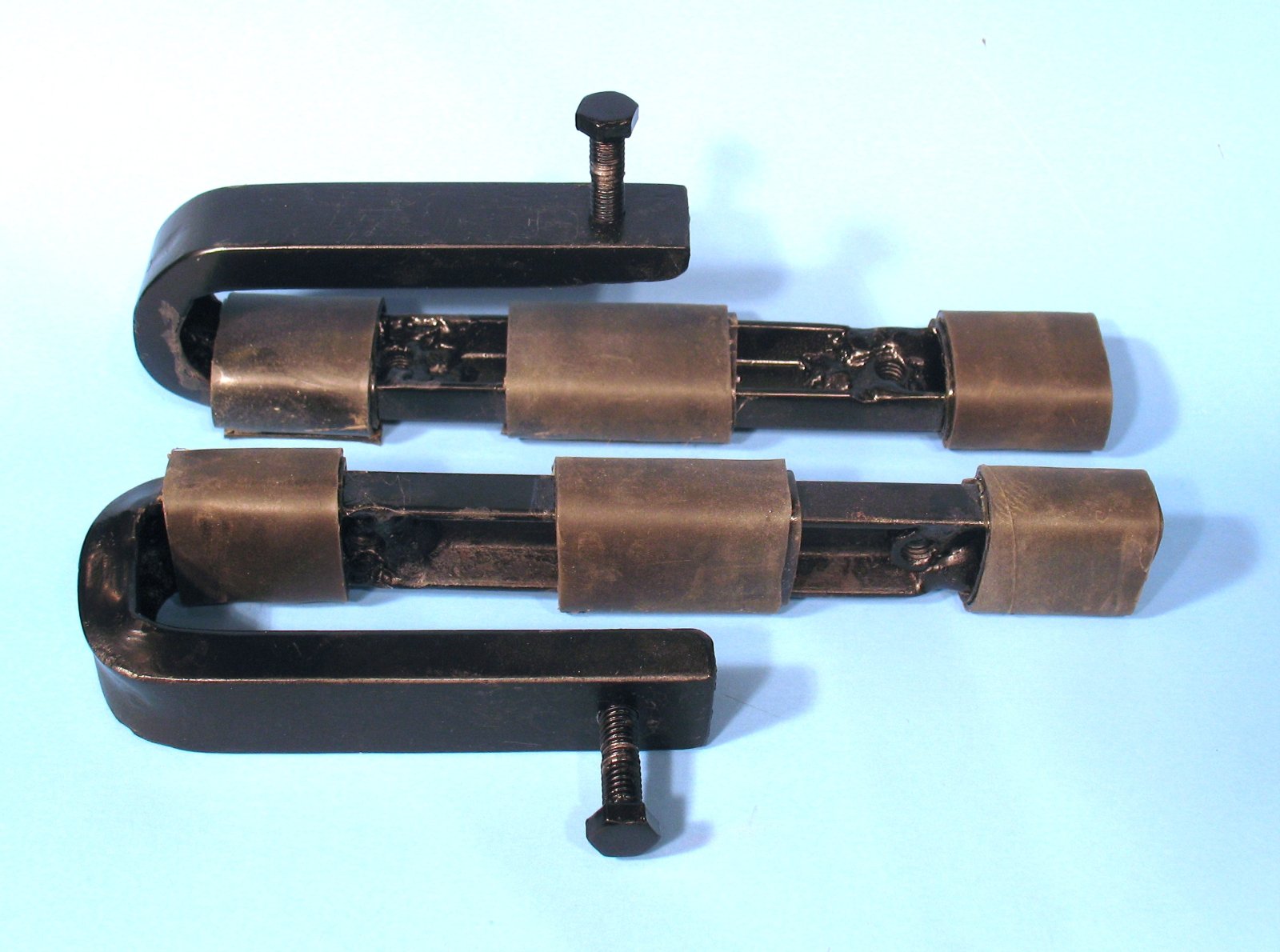

You don't have to drill any running board holes if you make clamp-on mounting brackets.
The inevitable often happens.
1915 Runabout
1923 Touring
1915 Runabout
1923 Touring
-
Erik Johnson
- Posts: 1103
- Joined: Mon Feb 04, 2019 10:25 pm
- First Name: Erik
- Last Name: Johnson
- Location: Minneapolis, MN
Re: Question on installing a tool box on the running boards
You don't have to make clamp-on brackets if you rob them from a pantograph luggage rack.
-
Allan
- Posts: 6960
- Joined: Sun Jan 06, 2019 7:21 pm
- First Name: Allan
- Last Name: Bennett
- * REQUIRED* Type and Year of Model Ts owned: 1912 van, 1917 shooting brake, 1929 roadster buckboard, 1924 tourer, 1925 barn find buckboard, 1925 D &F wide body roadster, 1927LHD Tudor sedan.
- Location: Gawler, Australia
Re: Question on installing a tool box on the running boards
There is no need to drill any holes in the running boards. Simply make a wooden base board for the toolbox to sit on. remove the two running board bolts and the two nearest fender bolts, either at the front or rear, and use longer bolts to fix the base board in place, It will sit on top of the dimples so moisture will not be held. Then screw the box onto the spacer board. Robust permanent style fix, easily reversed if needed.
Allan from down under.
