I am looking for clear photos how the 1910-1913 rear frame to body brackets were attached to the frame and how this frame was build up at the rear.
Thanks
Andre
Belgium
1910-1913 rear frame to body brackets.
Forum rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
-
AndreFordT
Topic author - Posts: 542
- Joined: Sun Jan 06, 2019 12:25 pm
- First Name: Andre
- Last Name: Valkenaers
- * REQUIRED* Type and Year of Model Ts owned: 1926 ; 1922 ; 1915.
- Location: Scherpenheuvel
1910-1913 rear frame to body brackets.
- Attachments
-
-
-
-
-
-
Tbird
- Posts: 1280
- Joined: Sun Jan 06, 2019 6:51 pm
- First Name: Mike
- Last Name: Bird
- * REQUIRED* Type and Year of Model Ts owned: 1912 Delivery Car
- Location: Goshen IN
Re: 1910-1913 rear frame to body brackets.
Andre,

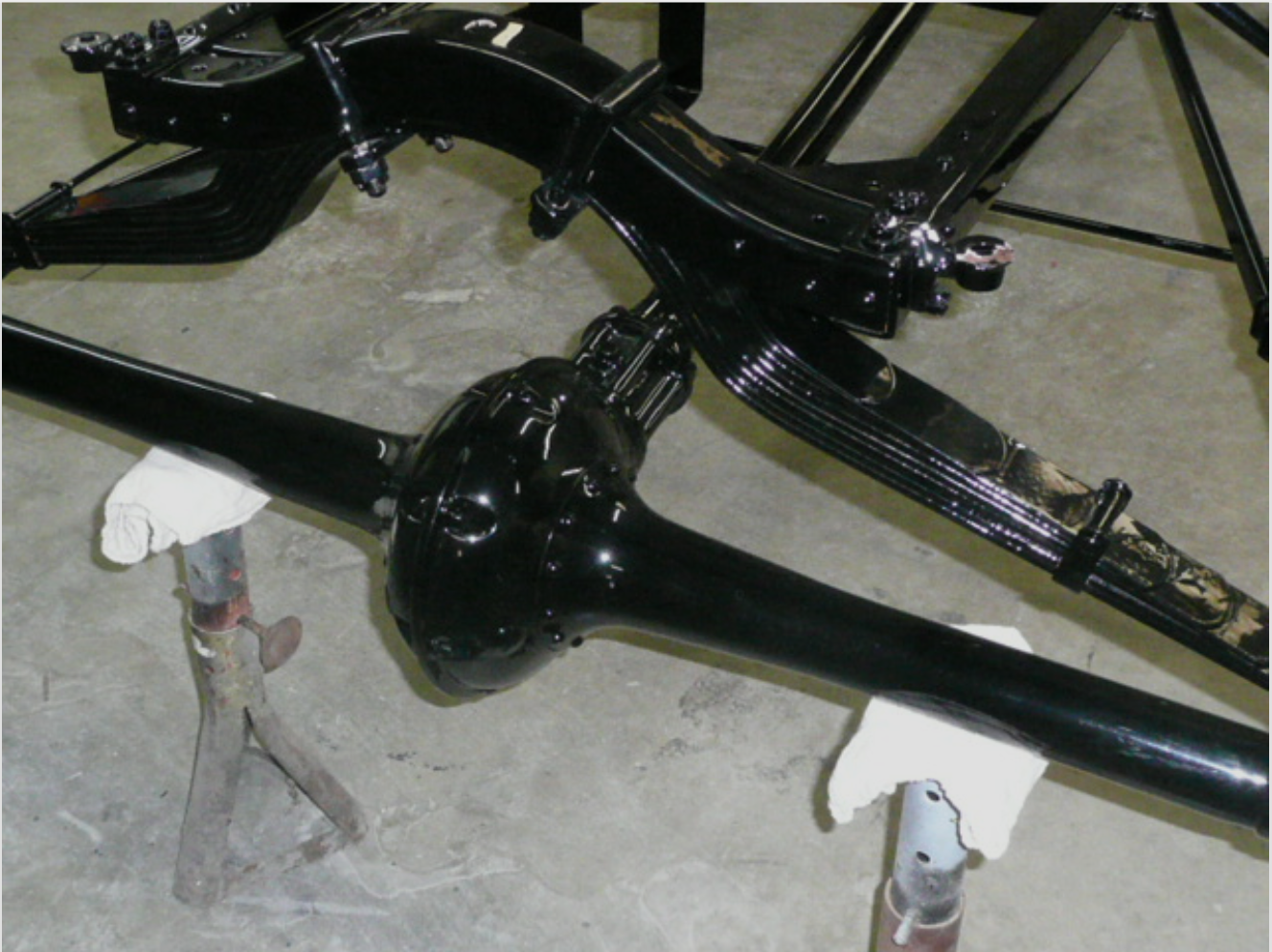

There are a couple differences, between the 10-13 rear body brackets. The 1909-10 had the rear fender irons also attached to the rear body brackets they are called butterfly brackets. The 11-13 eliminated the need of the rear body brackets with the rear fender irons. The brackets are held on with three bolts two on the top and one on the side. The frames are different as well between a early frame 09-13 and a later frame after 13. These photos are of a 1911-12 frame.
There are a couple differences, between the 10-13 rear body brackets. The 1909-10 had the rear fender irons also attached to the rear body brackets they are called butterfly brackets. The 11-13 eliminated the need of the rear body brackets with the rear fender irons. The brackets are held on with three bolts two on the top and one on the side. The frames are different as well between a early frame 09-13 and a later frame after 13. These photos are of a 1911-12 frame.
- image.jpeg (102.34 KiB) Viewed 101 times
