1913 Ford KW Coil Box with Five Coils

[Ron Patterson]

Rare 1913 KW coilbox. Used on Model T Ford cars in the last half of 1913 production cycle. Faithfully reproduced by a professional cabinetmaker in Cherry wood using an original 1913 KW coilbox as pattern. Excellent quality workmanship. All holes and channels for internal wiring are included.
This complete coilbox package includes all the following additional items (see photos):

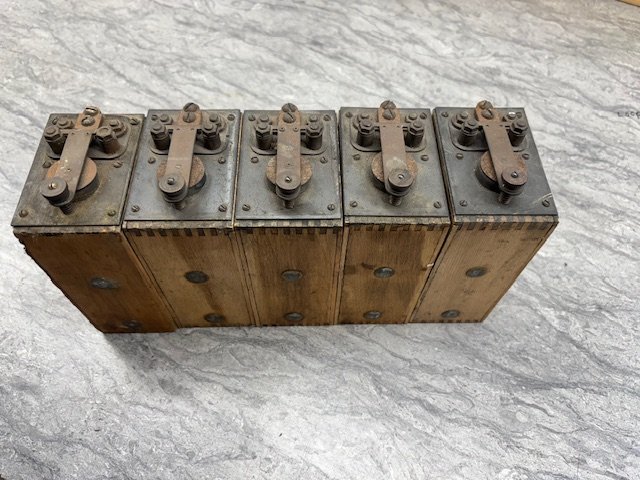

Five rebuildable 1913 KW coils (unique sized wood cases) with good secondary windings.
Complete set of original coilbox to dash mounting hardware

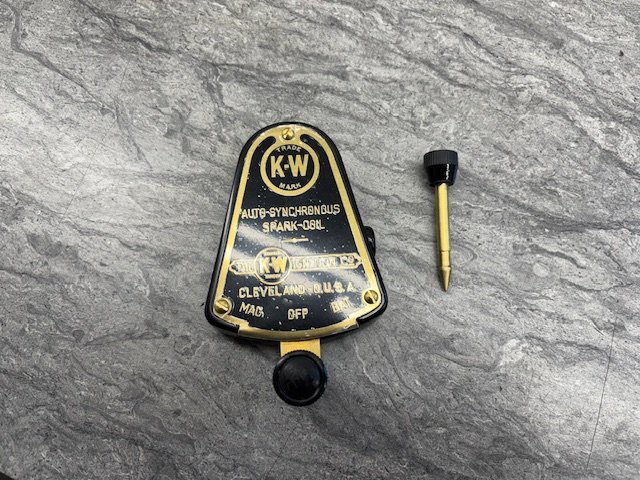

New reproduction KW coilbox switch and key
New set of original style (Corbin) cover latches
Reproduction original guarantee and KW instruction papers for glueing inside coilbox lid as original.
Complete set of original internal coilbox contacts including bolts, ceramic insulators and nuts
The coilbox has not been stained or coated to allow purchaser to select whatever product, color and final sealant that suits their needs.
This package is a unique chance for a 1913 Model T owner to assemble and use the superior Williams designed ignition coils in and an original KW coilbox first used in production of 1913 Ford cars
The price is $750.00. Please contact: Ron Patterson by email via this Forum.

[Ron Patterson]

Additional Photos

[Rich P. Bingham]

Email sent, Ron.

[Ron Patterson]

The 1913 coilbox has been sold.

[love2T's]

I did not know KW's used those round spots for the bottom contacts? Like Heinze does for springs to do so? Learning curve here?

[Ron Patterson]

This coilbox and coil depicted above was ony used the first six months of 1913 production. This coil design was first shown to Ford in late 1912. Until that time they had been struggling finding a reliable/maintainable coil solution for early Model T's. Hence the many different types of coils/coilboxes that had been tried. When Ford saw the Williams design coils made by KW, they immediately adopted this solution for the Model T and entered into a co-production arrangement with KW. The unique large Williams coil and KW wood box only lasted six months where upon Ford standardized on the metal coilbox and their version of the coil for 1914 production. The Williams electro-mechanical coil point concept was used for all further Model T production until 1927. The Service Branch and Dealer ignition coil service tools/capability soon followed.
Ron Patterson

[love2T's]

Thanks Ron.
Now I wonder how many of this style was/is out there? And are they the same size as their Heinze counterpart? Just thinking as to potential spare coils if needed. I have one spare Heinze...might be nice to have another or two of either so long as the contacts mate.
