23 Center door What am I missing

Post by Michael Davis » Fri Aug 30, 2019 8:20 pm

I have attached a couple of pictures of the floor on drives side. I have no idea what I need to support the floor where it angles up and fits around the pedals up to the fire wall ???????????????? Any information would be very helpful .


Thanks Mike
Attachments
output (2).jpg
output (1).jpg

User avatar

perry kete
Posts: 610
Joined: Sun Jan 06, 2019 11:46 am
First Name: Dennis
Last Name: Seth
Location: Jefferson Ohio

Re: 23 Center door What am I missing

Post by perry kete » Fri Aug 30, 2019 9:17 pm

I have a '22 Coupe and in that area to support the floor boards are wooden supports attached to the side. They rise at an angle to hold the edge of the floorboard. I'm sure yours is very much the same. I will try to remember to get some pictures tomorrow and post them if I can. Most of my rebuild photos were lost when my computer crashed several years ago.
1922 Coupe & 1927 Touring


mtntee20
Posts: 198
Joined: Sun Jan 06, 2019 2:51 pm
First Name: Terry & Sharon
Last Name: Miller
Location: Westminster, CO
MTFCA Number: 32583
Board Member Since: 2017

Re: 23 Center door What am I missing

Post by mtntee20 » Fri Aug 30, 2019 10:19 pm

Hi Mike,

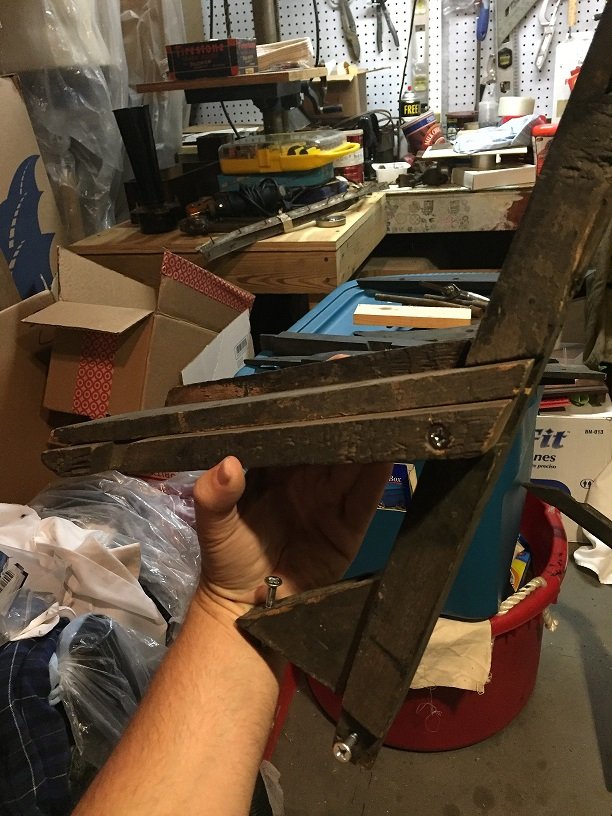

I've been ogling your center door since I found it on Craig's List the first time you listed it. You are missing a "frame" of wood. The frame sits behind the firewall and has angled boards running towards the front seats. These are what the floorboards rest on. Will Vanderburg posted these photos. Thank You, Will.
Floor board 1.jpg

Good Luck,
Terry
Attachments
Floor board 2.jpg

User avatar

Will_Vanderburg
Posts: 257
Joined: Sun Jan 06, 2019 3:59 pm
First Name: William
Last Name: Vanderburg
Location: Jackson, NJ
MTFCA Number: 28382

Re: 23 Center door What am I missing

Post by Will_Vanderburg » Sat Aug 31, 2019 9:13 am

You're also missing a metal support bracket that screws to that front pillar upright to the frame rail.
William L Vanderburg

1925 Touring
1922 Center Door Sedan

User avatar

Will_Vanderburg
Posts: 257
Joined: Sun Jan 06, 2019 3:59 pm
First Name: William
Last Name: Vanderburg
Location: Jackson, NJ
MTFCA Number: 28382

Re: 23 Center door What am I missing

Post by Will_Vanderburg » Sat Aug 31, 2019 9:17 am

and there also seems to be an "ear" of wood missing that goes all the way up to the front of the metal cowl piece.
William L Vanderburg

1925 Touring
1922 Center Door Sedan


Topic author
Michael Davis
Posts: 246
Joined: Fri Jul 26, 2019 8:18 pm
First Name: Michael
Last Name: Davis
Location: Montrose CO

Re: 23 Center door What am I missing

Post by Michael Davis » Sat Aug 31, 2019 9:23 am

Thanks. Now have have a good idea of what I need. I do have some wood in a pile of stuff.

Thanks again for the pictures and information.

Mike

PS I got it started the other day. New engine rebuilt over 30 years ago. Now to finish some stuff and drive it.
Attachments

User avatar

perry kete
Posts: 610
Joined: Sun Jan 06, 2019 11:46 am
First Name: Dennis
Last Name: Seth
Location: Jefferson Ohio

Re: 23 Center door What am I missing

Post by perry kete » Sat Aug 31, 2019 11:55 am

I see others have posted the pictures you were looking for. I have the same floor supports in mine so there is no reason to post the same pictures again.
