fat man steering wheel with horn button

Post by RumblingThunder » Mon May 04, 2020 3:58 am

I bought a fat man steering wheel with a horn button in center similar to model A horn button. Can't get it to make contact (close the circuit on two wires coming out of it). No brand found. Any one have experience or knowledge of one like this. Will attempt to post picture later.


Wayne Sheldon
Posts: 4249
Joined: Sun Jan 06, 2019 3:13 pm
First Name: Wayne
Last Name: Sheldon
* REQUIRED* Type and Year of Model Ts owned: 1915 Runabout 1913 Speedster
Location: Grass Valley California, USA
Board Member Since: 2005

Re: fat man steering wheel with horn button

Post by Wayne Sheldon » Mon May 04, 2020 4:10 am

I have seen several. They vary from manufacturer to manufacturer in quality and methods used. Many fatman wheels have holes drilled in the "hub" from the manufacturer to run wires through to a "horn button center bolt" which could be purchased separately. One of the cars I used to have had one of those. Others had a made-to-fit centerpiece for a horn button. A fatman wheel I have hanging in the garage and have had for fifty years is set up that way, but I never did find the centerpiece for it. I have threatened to make one for it, but do not at this time have a car to put it on.
I have seen a few over the years that had the horn button on them, but never had one myself.


Allan
Posts: 6609
Joined: Sun Jan 06, 2019 7:21 pm
First Name: Allan
Last Name: Bennett
* REQUIRED* Type and Year of Model Ts owned: 1912 van, 1917 shooting brake, 1929 roadster buckboard, 1924 tourer, 1925 barn find buckboard, 1925 D &F wide body roadster, 1927LHD Tudor sedan.
Location: Gawler, Australia

Re: fat man steering wheel with horn button

Post by Allan » Mon May 04, 2020 7:27 pm

I have a Bauer tilt up wheel in my Tudor. It has the usual USA horn button on the side of the steering column. There is no room for the Canadian horn button mounted on the steering wheel nut. On my 25 roadster I have a Neville slide-up wheel. That does have the Canadian horn button on the wheel nut, and the same two wires to it as is standard on Canadian cars.

Allan from down under.


sportbingo
Posts: 65
Joined: Thu Oct 10, 2019 5:10 pm
First Name: Art
Last Name: Taylor
Location: Whidbey IS Washington

Re: fat man steering wheel with horn button

Post by sportbingo » Tue May 05, 2020 2:54 am

I have a Guardian Fatman steering wheel, locking, and horn. The horn works.
The attachment Guardian Wheel Sales 1 1920 Ford Model T Guardian Tilt & Non-Tilt Steering Wheel Brochure 407x494.jpg is no longer available

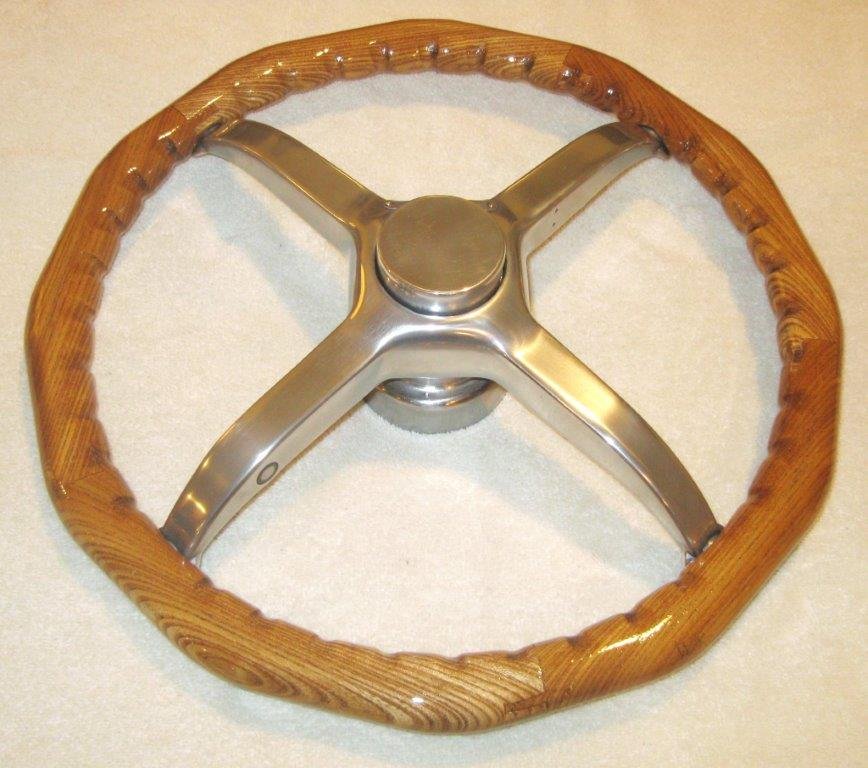

IMG_0126 clean & sanded.JPG
If you want more information let me know.

Art Taylor (sportbingo)


sportbingo
Posts: 65
Joined: Thu Oct 10, 2019 5:10 pm
First Name: Art
Last Name: Taylor
Location: Whidbey IS Washington

Re: fat man steering wheel with horn button

Post by sportbingo » Tue May 05, 2020 2:57 am

Another picture of the Guardian.
Guardian Wheel Sales 1 1920 Ford Model T Guardian Tilt & Non-Tilt Steering Wheel Brochure 407x494.jpg
Guardian Wheel Sales 1 1920 Ford Model T Guardian Tilt & Non-Tilt Steering Wheel Brochure 407x494.jpg (34.53 KiB) Viewed 2262 times
Art Taylor (sportbingo)
