Need photos of 1914 Roadster body wood

Post by John Haynes » Thu Sep 05, 2019 6:01 pm

Gentlemen:
I am in the process of wooding a 1914 Roadster body with a kit I purchased. There are few instructions or illustrations. I am in need of photos of the seat wood framework that is just above the fuel tank. I believe the wood lid that covers the fuel tank and is just under the front seat cushion is rectangular. The dimensions of that lid would be very helpful. It appears that there are a few wood pieces that are incorrect. I thank you in advance for your help!

User avatar

George House
Posts: 502
Joined: Sun Jan 06, 2019 5:25 pm
First Name: George
Last Name: House
Location: northern Caldwell county TX
MTFCA Life Member: YES

Re: Need photos of 1914 Roadster body wood

Post by George House » Fri Sep 06, 2019 9:15 am

Here’s my ‘14 runabout under-the-seat wood: the ‘lid’ measures 31 1/4” X 14 5/8”. This body was reworded by Ray Wells aka The Craftsman.
Attachments

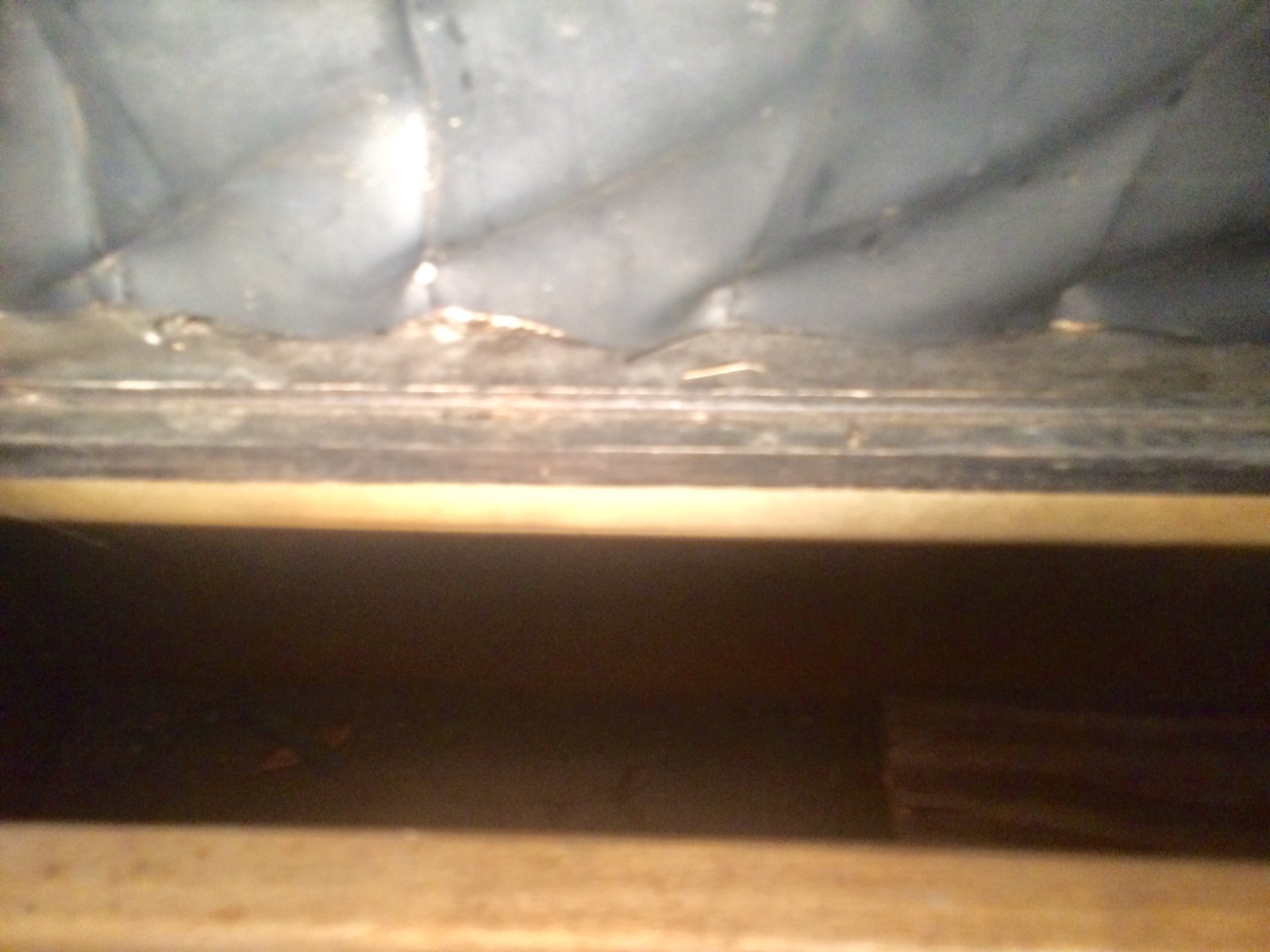

Backside of gas tank ‘cavity’. Note frame ‘rabbited’
