Lift-a-dot nos?

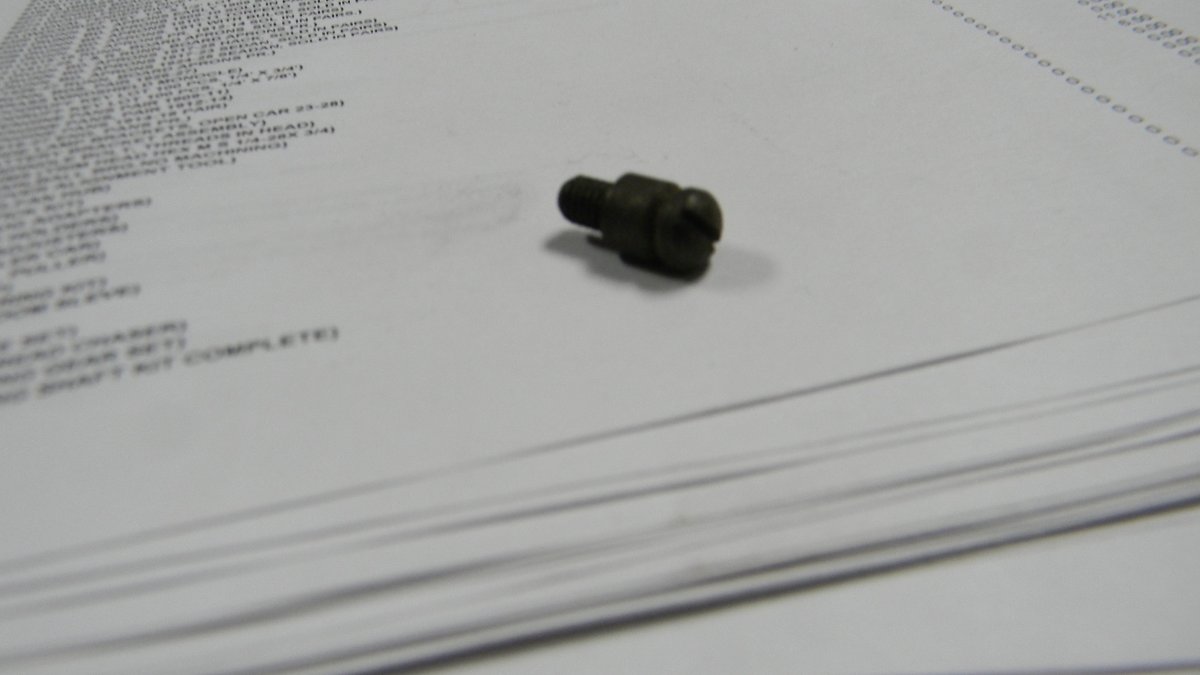

Looking through some old boxes and found some of these but not like re pros, are these lift-o-dot in original forum ? Bob
- Attachments
-
-
-
-
-
FATMAN
Topic author - Posts: 1697
- Joined: Sat Jan 19, 2019 9:28 am
- First Name: ROBERT
- Last Name: BERGSTADT
- Location: LOVES PARK IL
Re: Lift-a-dot nos?
Anyone have one to compare? Bob
-
Allan
- Posts: 6609
- Joined: Sun Jan 06, 2019 7:21 pm
- First Name: Allan
- Last Name: Bennett
- * REQUIRED* Type and Year of Model Ts owned: 1912 van, 1917 shooting brake, 1929 roadster buckboard, 1924 tourer, 1925 barn find buckboard, 1925 D &F wide body roadster, 1927LHD Tudor sedan.
- Location: Gawler, Australia
Re: Lift-a-dot nos?
I doubt they are lift-a-dots. They may have been made by the same company, but they are definitely for a different application. About the only difference I have seen in lift-a-dots is the spacing of the prongs and the backing plates on the female receivers. There were some round ones made early on, but they may have been made by others, and made that way to get around trade marks/patents.
Allan from down under.
Allan from down under.
-
TRDxB2
- Posts: 6262
- Joined: Tue Jan 08, 2019 4:56 pm
- First Name: Frank
- Last Name: Brandi
- * REQUIRED* Type and Year of Model Ts owned: Speedsters (1919 w 1926 upgrades), 1926 (Ricardo Head)
- Location: Moline IL
- Board Member Since: 2018
Re: Lift-a-dot nos?
The company https://www.dotfasteners.com/
Look here for details http://www.mtfca.com/discus/messages/25 ... 1356801354
Look here for details http://www.mtfca.com/discus/messages/25 ... 1356801354
- Attachments
-
-
Last edited by TRDxB2 on Thu Feb 03, 2022 1:05 am, edited 2 times in total.
The past is a great place and I don't want to erase it or to regret it, but I don't want to be its prisoner either.
Mick Jagger
Mick Jagger
-
Allan
- Posts: 6609
- Joined: Sun Jan 06, 2019 7:21 pm
- First Name: Allan
- Last Name: Bennett
- * REQUIRED* Type and Year of Model Ts owned: 1912 van, 1917 shooting brake, 1929 roadster buckboard, 1924 tourer, 1925 barn find buckboard, 1925 D &F wide body roadster, 1927LHD Tudor sedan.
- Location: Gawler, Australia
Re: Lift-a-dot nos?
Modern common sense fasteners have the legend "dot" on the squared-off end of the turn buckle, which suggests they are made by the same makers as lift-the- dots. However, that does not make them lift-the-dots. Lift the dots have that legend stamped into the face of the female receive
Allan from down under.
Allan from down under.
-
DanTreace
- Posts: 3813
- Joined: Sun Jan 06, 2019 10:56 am
- First Name: Dan
- Last Name: Treace
- * REQUIRED* Type and Year of Model Ts owned: ‘12 open express,'23 cutoff, '27 touring
- Location: North Central FL
- Board Member Since: 2000
- Contact:
Re: Lift-a-dot nos?
BobLooking through some old boxes and found some of these but not like re pros, are these lift-o-dot in original

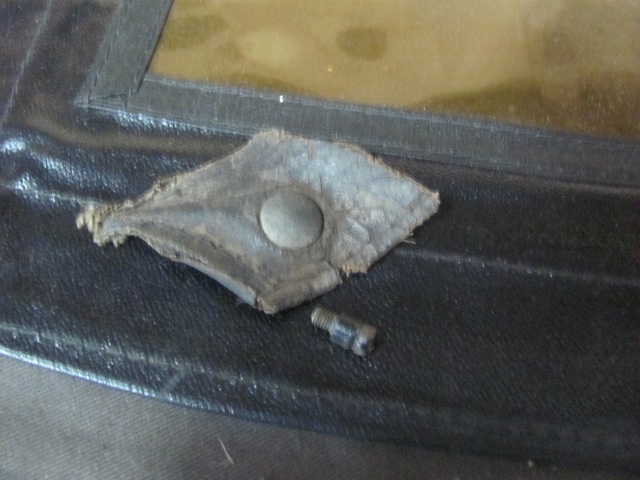

Those pieces are the male portion of an ANZO fastener, (also known in the old time trade as 'glove' fasteners) those were used on the earlier Model T side curtains, that threaded post is placed in the top iron, and the fabric received a split like cup as the curtain retainer. Used on the 1923 One Man tops until the Improved Car in 1926.
Nice find, they are not made anymore so good to have some of those for others to use.
The best way is always the simplest. The attics of the world are cluttered up with complicated failures. Henry Ford
Don’t find fault, find a remedy; anybody can complain. Henry Ford
Don’t find fault, find a remedy; anybody can complain. Henry Ford
-
DanTreace
- Posts: 3813
- Joined: Sun Jan 06, 2019 10:56 am
- First Name: Dan
- Last Name: Treace
- * REQUIRED* Type and Year of Model Ts owned: ‘12 open express,'23 cutoff, '27 touring
- Location: North Central FL
- Board Member Since: 2000
- Contact:
Re: Lift-a-dot nos?

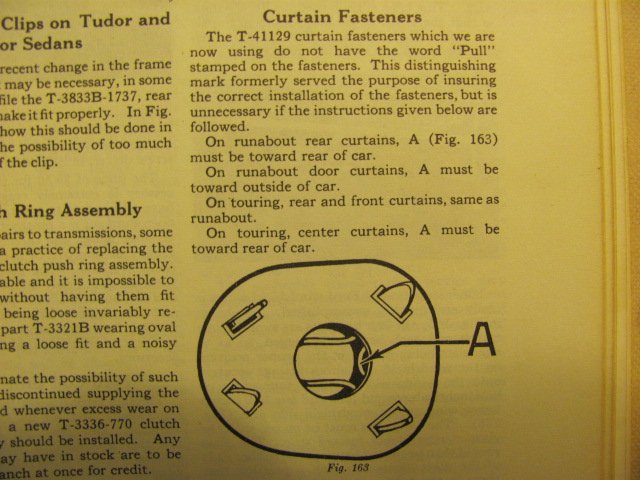

By the way, all these type curtain and top fasteners were made and patented by Carr. They supplied the industry, the ANZO style was patented and trademarked in 1920 and they also made the Lift-the-Dot, that became the most popular, as it was easy to use and lasted.
Most twenties cars used Lift the Dots, and same is in use even today. The ANZO fell off, but think it was still used in military up to WWII. Probably because it may have been cheaper than the Dots, for Ford waited until 1926 to begin using Lift-the Dots! Of course Ford also used the earlier Common Sense fastener that Carr also made.
Most twenties cars used Lift the Dots, and same is in use even today. The ANZO fell off, but think it was still used in military up to WWII. Probably because it may have been cheaper than the Dots, for Ford waited until 1926 to begin using Lift-the Dots! Of course Ford also used the earlier Common Sense fastener that Carr also made.
- Dot and ANZO.jpeg (106.03 KiB) Viewed 1507 times
The best way is always the simplest. The attics of the world are cluttered up with complicated failures. Henry Ford
Don’t find fault, find a remedy; anybody can complain. Henry Ford
Don’t find fault, find a remedy; anybody can complain. Henry Ford
-
Original Smith
- Posts: 3699
- Joined: Tue Jan 08, 2019 10:43 am
- First Name: Larry
- Last Name: Smith
- * REQUIRED* Type and Year of Model Ts owned: 13 Touring, 13 Roadster, 17 Coupelet, 25 Roadster P/U
- Location: Lomita, California
- MTFCA Life Member: YES
Re: Lift-a-dot nos?
Those were screwed to the top sockets on late T's. Three on each side. They mate up to the Anzo fasteners posted earlier.
