Rear axle seal vs. shims
I have been a fan of the new-fangled rear axle seals and have them on most of my T's. The Touring requires an axle shim on both sides to give proper clearances. The shims seem to crawl up into the seal when installing the rear wheel and chew the rubber seal a bit. This time I made a shield out of .030 steel hoping it will stop the shim from entering the seal. There is ample room between the hub and seal so the shield can free float. The ID of the shield is a sliding fit with each axle shaft. Hopefully my new seals will last a very long time. The old ones still worked pretty well even after getting roughed up.
Rich
Rich
When did I do that?
-
- Posts: 1297
- Joined: Sat Jan 05, 2019 1:57 pm
- First Name: Mark
- Last Name: Gregush
- Location: Portland Or
- Board Member Since: 1999
Re: Rear axle seal vs. shims
That washer looks like a good way to cut the axle as it is floating and any rotation of the hub can turn it. I would maybe trimming some off the shim first or put the shim into the hub first then install the wheel. That way it will works to the outside as you put it on. If the shim is moving in use, then there are other issues, like not getting tight on the taper, loose hub worn axle taper.
I know the voices aren't real but damn they have some good ideas!
1921 Huckster
1925 Cut down pickup

1921 Huckster
1925 Cut down pickup
-
- Posts: 96
- Joined: Thu Feb 07, 2019 8:21 pm
- First Name: Art
- Last Name: Morra
- Location: PA
- MTFCI Number: 14286
Re: Rear axle seal vs. shims
Use the inner modern seals problem solved but if the shims are moving the wheel still loose IMO
-
Topic author - Posts: 1550
- Joined: Fri Jan 04, 2019 10:51 am
- First Name: Richard
- Last Name: Eagle
- Location: Idaho Falls, ID
- MTFCA Number: 1219
- Contact:
Re: Rear axle seal vs. shims
As I said the shims "seem to crawl up into the seal when installing the rear wheel". Not moving in use. I have found no good way to keep the shim from sliding along the axle with the hub AT INSTALLATION. The spacer should turn with the axle and hub. Also it is softer than the axle shaft. If problems develop with this I will post it here first.
Thanks for the concerns.
Rich
Thanks for the concerns.
Rich
When did I do that?
-
- Posts: 67
- Joined: Tue Jan 08, 2019 2:33 am
- First Name: Alan
- Last Name: Long
- Location: Western Australia
Re: Rear axle seal vs. shims
Sorry, I don’t understand the need for this shim. What am I missing here? Agree with others, it looks like a axle cutting
device to me and similar to what the steel thrust washers in the diff have been known to do.
Alan
device to me and similar to what the steel thrust washers in the diff have been known to do.
Alan
-
- Posts: 634
- Joined: Sun Jan 06, 2019 10:45 am
- First Name: David
- Last Name: Stroud
- Location: Mound City, MO. 64470
- Board Member Since: 2011
Re: Rear axle seal vs. shims
Rich E., what Mark G. said. Put the shim in the hub first, then the shim will tend to push out instead of in. JMHO Dave
1925 mostly original coupe.
-
- Posts: 150
- Joined: Sun Jan 06, 2019 2:28 pm
- First Name: Douglas
- Last Name: Keppler
- Location: Fredon N.J.
- MTFCA Number: 49716
Re: Rear axle seal vs. shims
I thinking the same as Alan mentioned Rich. I have the same seals on my rear and I didn't use any shims like that
1924 Touring car
There's No Substitute for Proper Lubrication
There's No Substitute for Proper Lubrication
-
- Posts: 1578
- Joined: Sun Jan 06, 2019 11:25 am
- First Name: Dave
- Last Name: Hanlon
- Location: NE Ohio
- MTFCA Number: 50191
- Board Member Since: 2018
Re: Rear axle seal vs. shims
If you feel you must have a “slinger”, could you make it with a smaller ID and form a small “cone” inside to press fit it so it won’t move.
I have the same concerns of cutting the axle over time if floating around.
I have the same concerns of cutting the axle over time if floating around.
-
Topic author - Posts: 1550
- Joined: Fri Jan 04, 2019 10:51 am
- First Name: Richard
- Last Name: Eagle
- Location: Idaho Falls, ID
- MTFCA Number: 1219
- Contact:
-
- Posts: 808
- Joined: Sat Mar 09, 2019 2:05 am
- First Name: Brent
- Last Name: Burger
- Location: Spokane, Wa.
- Board Member Since: 2014
Re: Rear axle seal vs. shims
What keeps you from tack welding the shield to the seal to eliminate both wear problems ?
A tiny tack in a 2-3 places will hold it nicely.
A tiny tack in a 2-3 places will hold it nicely.
More people are doing it today than ever before !
-
- Posts: 1635
- Joined: Sun Jan 06, 2019 11:18 am
- First Name: Scott
- Last Name: Conger
- Location: Clark, WY
- Board Member Since: 2005
Re: Rear axle seal vs. shims
My experience in repairs is that that type of seal will soon be damaged by axle flexing...even with a good Hyatt bearing and new sleeve. Any number of miles on the car after installation and I've found that the seal is shot. If you are getting better service from them, that's good.
The housing is aluminum and Rich's shield is steel...I don't think that is a tack-able item.
The housing is aluminum and Rich's shield is steel...I don't think that is a tack-able item.
Scott Conger
Full Flow Float Valves - deliver fuel like Henry intended!
Full Flow Float Valves - deliver fuel like Henry intended!
-
- Posts: 948
- Joined: Tue Jan 08, 2019 10:43 am
- First Name: Larry
- Last Name: Smith
- Location: Lomita, California
- MTFCA Number: 121
- MTFCA Life Member: YES
- MTFCI Number: 16310
Re: Rear axle seal vs. shims
I'm still stuffing three of the thick felt seals that Langs sells in my housings. They work well, but are a bitch to put in. I like to break in the center hole for them before installation.
-
- Posts: 487
- Joined: Sun Jan 06, 2019 12:18 pm
- First Name: John
- Last Name: Warren
- Location: Henderson, Nevada
Re: Rear axle seal vs. shims

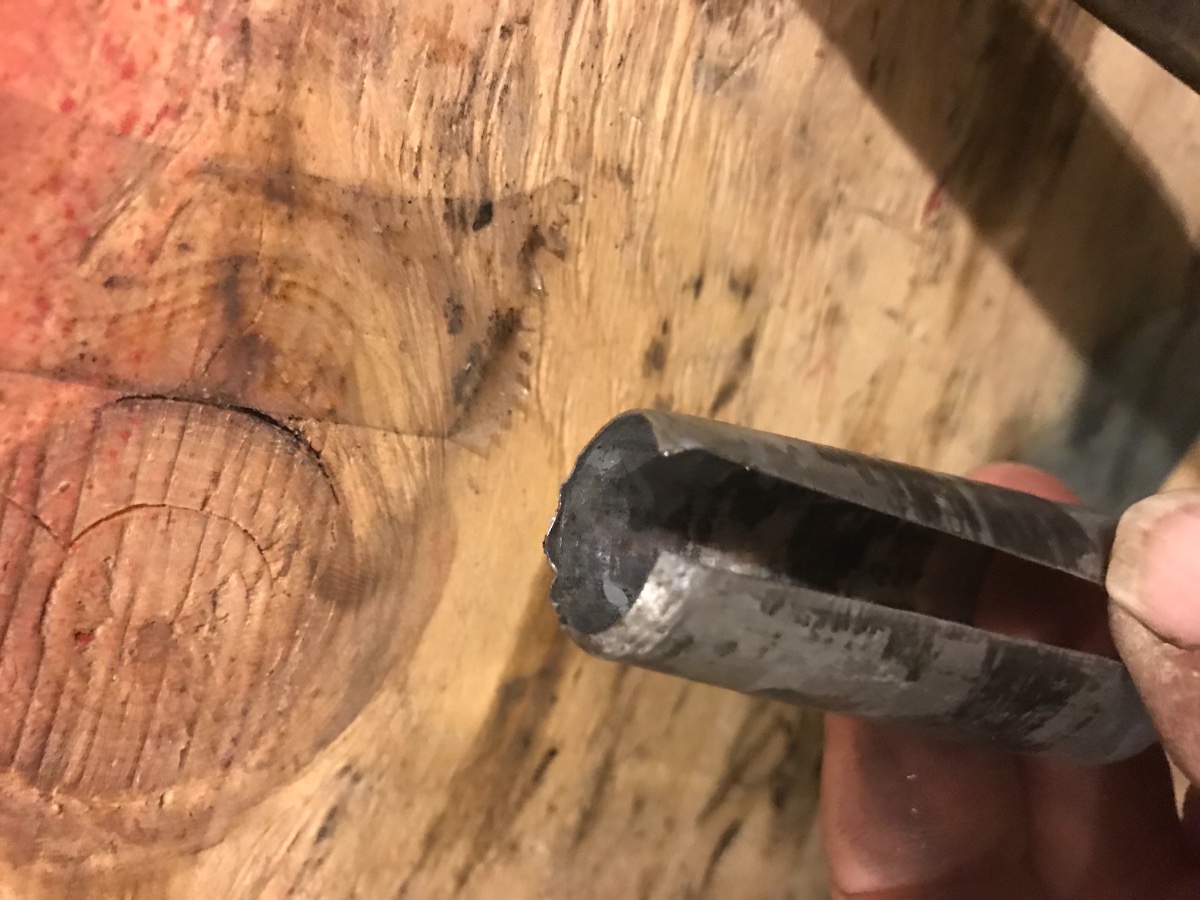

Rich looks like a great idea and thanks for sharing. I have had the same problem. This is what I have done with some success.
24-28 TA race car, 26 Canadian touring, 25 Roadster pickup, 14 Roadster, and 11AB Maxwell runabout
Keep it simple and keep a good junk pile if you want to invent something
Keep it simple and keep a good junk pile if you want to invent something

-
Topic author - Posts: 1550
- Joined: Fri Jan 04, 2019 10:51 am
- First Name: Richard
- Last Name: Eagle
- Location: Idaho Falls, ID
- MTFCA Number: 1219
- Contact:
Re: Rear axle seal vs. shims
That looks like a great fix John. The idea of putting the shim in the hub rather than on the axle shaft sounds like a good fix too. I will inspect the assembly after some miles to see if the shield is causing any wear.
Thanks for the comments.
Rich
Thanks for the comments.
Rich
When did I do that?
-
- Posts: 50
- Joined: Mon Jan 28, 2019 4:49 pm
- First Name: Don
- Last Name: Kirtley
- Location: Devore,Ca
- MTFCA Number: 23703
- MTFCI Number: 23153
- Board Member Since: 2009
Re: Rear axle seal vs. shims
Locktite between the axle and the shim worked for me. Don
